The Ideal PTFE Gasket for Tough Applications – GYLON EPIX

The search for the ideal Polytetrafluoroethylene (PTFE) gasket has been elusive. Competing applications and workplace variables have led to the creation of myriad solutions, yet none that has proven fully adaptable and appropriate for universal adoption.

Garlock Sealing Technologies considered this to be a critical yet entirely solvable shortcoming. And it is against this backdrop that in 2016, they set out to compile a comprehensive list of attributes for the ideal PTFE gasket — a wish list, as it were — in order to build a better gasket.

Working with a third-party survey development company, Garlock developed an exhaustive questionnaire that probed every aspect and functionality of PTFE gaskets, testing and adjusting the questions until they had a workable, finalized version.

Using this final questionnaire, Garlock conducted extensive interviews at 15 major chemical processor companies, speaking with 20 engineers responsible for process operations, projects, maintenance and reliability. The goal was simple: to discover the ideal characteristics and their relative importance that engineers sought in a PTFE gasket.

After several months of data collection, Garlock analyzed the feedback and noted the most popular responses:

  • 28% of respondents said that they struggled with how different gaskets required different compressive loads and how to ensure that those gaskets had been installed properly
  • 21% expressed frustration with the creep properties of PTFE gaskets
  • 21% desired a gasket that seals with less compressive load
  • 14% expressed frustration at the installation inconsistencies of their fitters
  • 14% expressed frustration with leaking, especially after a successful installation and start-up

From those answers, Garlock drew the following conclusions, representing the most desirable and essential PTFE gasket characteristics:

  • Seal: Seals easily
  • Installation and assembly: Forgiving of poor installation or assembly practices
  • Forgiving: Forgiving of poor flange conditions
  • Retention: Maintains a seal after installation
  • Flexible: Can be used in a broad range of services to avoid user confusion and reduce inventory

Introducing: GYLON EPIX

Garlock used this feedback in developing a next generation PTFE gasket — GYLON EPIX. Featuring a hexagonal surface profile, GYLON EPIX offers superior compressibility and sealing for use in chemical processing environments. Its enhanced surface profile performs as well or better than existing 1/16″ or 1/8″ gaskets, allowing end-users and distributors to consolidate inventory, lower the risk of using incorrect gasket thicknesses and reduce stocking costs.

GYLON EPIX checks off the most desirable gasket attributes:

  • Installation and assembly: Even distribution of the bolt load over the contacted area of the gasket during the assembly process
  • Retention: Retention of the bolt load administered at assembly
  • Seal: Efficient translation of bolt load to sealing performance
  • Forgiving: The ability to perform in imperfect flanges and installation conditions

GYLON EPIX with its raised, hexagonal profile allows it to perform the job of both traditional 1/16” and 1/8” gaskets. It accomplishes this by combining the bolt retention of the former with the forgiveness for bad flange conditions of the latter, a truly innovative feature for PTFE sheet gasketing. Continue reading The Ideal PTFE Gasket for Tough Applications – GYLON EPIX

[VIDEO] Application Guidance for GYLON EPIX™

GYLON EPIX™ WebinarWe recently added the GYLON EPIX™ – The Next Generation in PTFE Gasketing webinar to our website.  The webinar discusses Garlock’s revolutionary new gasketing material, with its patented hexagonal surface, which concentrates gasket stress, providing improved compressibility and bolt load retention, improving sealability and blowout resistance.

Below is the third and final section of the webinar, which provides application guidance for GYLON EPIX™, calling out where it makes most sense to utilize this revolutionary new material.

[VIDEO] Features & Benefits of GYLON EPIX™

GYLON EPIX™We recently added the GYLON EPIX™ – The Next Generation in PTFE Gasketing webinar to our website.  The webinar discusses Garlock’s revolutionary new gasketing material, with its patented hexagonal surface, which concentrates gasket stress, providing improved compressibility and bolt load retention, improving sealability and blowout resistance.

Below is the second section of the webinar, which discusses the features and benefits of the GYLON EPIX™ material, and what differentiates it from any other gasketing material on the market today.

[VIDEO] Introduction to GYLON EPIX™

GYLON EPIX™ WebinarWe recently added the GYLON EPIX™ – The Next Generation in PTFE Gasketing webinar to our website.  The webinar discusses Garlock’s revolutionary new gasketing material. With its patented hexagonal surface, GYLON EPIX™ concentrates gasket stress, providing improved compressibility and bolt load retention, improving sealability and blowout resistance.

Below is the first section of the webinar, diving into what drove Garlock to create this new material, and how GYLON EPIX™ provides the benefits of both a 1/16″ and 1/18″ thick gasket in one, universal, 3/32″ thickness.

NEW! GYLON EPIX™ Webinar Now Available

GYLON EPIX™Gallagher recently added the GYLON EPIX™ Webinar to its website. This video is a recorded webinar discussing GYLON EPIX™ – The Next Generation in PTFE Gasketing.

This material is a newly developed family of PTFE gaskets. It is manufactured using a patented, profiled surface based on our proven Fawn  (Style 3500), Off-White (Style 3510), and Blue (Style 3504) GYLON® to create highly conformable materials for optimum sealing performance.

GYLON EPIX™ will provide superior functional performance by combining the traditional attributes of GYLON® with an innovative surface design. It offers a broader range of applications than traditional PTFE gaskets that are used in worn and pitted flanges. In addition, GYLON EPIX™ delivers the tight sealing and load retention properties of 1/16” (1.6mm) and the conformability of 1/8” (3.2mm). The hexagonal profile provides improved compressibility and recovery. The profiled surface reduces the contact area during initial compression to concentrate the compressive force of the flange for improved sealability.

Garlock GYLON EPIX™Designed for increased compressibility, it improves performance in misaligned flanges. The consolidation of two thicknesses to one reduces the need to inventory multiple thicknesses. Garlock is dedicated to providing real sealing solutions that meet real world sealing needs. With an improved design, color-coded materials, and single thickness, GYLON EPIX™ makes sealing easier.

To learn more, download the webinar today!

Case Study: Eliminating Epoxy Use on Flanges

GYLON EPIX™ is a family of gaskets that effectively seals a broader range of applications and is more forgiving during the installation process.  It allows the end user to save valuable turn-around time, reduce re-work, and lower costs, helping them to finish ahead of schedule and under budget.

GYLON EPIX™ features a hexagonal surface profile that provides the torque retention and blowout resistance of a thin gasket and the conformability of a thicker gasket.  GYLON EPIX™ Style 3504 EPX is a high performance, aluminosilicate microsphere filled PTFE sheet material designed for use in moderate concentrations of acids, and caustics, as well as hydrocarbons, refrigerants, and more.

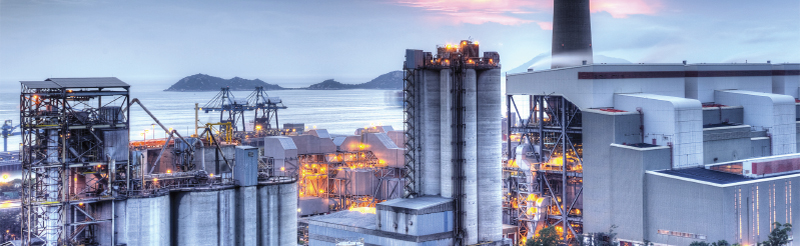

EPIX™ - Phosphate Plant

INDUSTRY

Chemical

CUSTOMER

Phosphate Processor

Continue reading Case Study: Eliminating Epoxy Use on Flanges

GYLON EPIX™ Distributes Load Evenly

GYLON EPIX™ is a newly developed family of PTFE gaskets. It is manufactured using a patented, profiled surface based on our proven Fawn, Off-White, and Blue GYLON® to create highly conformable materials for optimum sealing performance.

THE EPIX™ DIFFERENCE

GYLON EPIX™ and a traditional full face gasket were installed in a 3”-150# flat face flange at 120 ft.lbs. with pressure sensitive film.  The film revealed that the traditional material saw heavier loading-near and around the bolts, and lighter loading at the points furthest from the bolts. The GYLON EPIX™ was able to distribute the load more evenly and prevent the low loading phenomenon.

GYLON EPIX™ with Pressure Sensitive Film

The pressure sensitive film was then analyzed with special software that translate the various shades of red into a full color spectrum that provides a better visualization of the stresses that were developed on each of the gaskets. Again, while the traditional gasket saw areas of lower stress (green and blue areas), the hexagonal pattern in the GYLON EPIX™ concentrated and distributed the stress more evenly across the entire gasket.

Continue reading GYLON EPIX™ Distributes Load Evenly

GYLON EPIX™ Reduces Gasket Installation Issues

GYLON EPIX™ is a newly developed family of PTFE gaskets. It is manufactured using a patented, profiled surface based on our proven Fawn, Off-White, and Blue GYLON® to create highly conformable materials for optimum sealing performance.

Watch the video below to learn more about GYLON EPIX™, and how it’s patented
hexagonal surface profile can help you reduce gasket installation issues.

GYLON EPIX™ will provide superior functional performance by combining the traditional attributes of GYLON® with an innovative surface design. It offers a broader range of applications than traditional PTFE gaskets that are used in worn and pitted flanges. In addition, this evolutionary material delivers the tight sealing and load retention properties of 1/16” (1.6mm) and the conformability of 1/8” (3.2mm). The hexagonal profile provides GYLON EPIX™ - 3504 EPXimproved compressibility and recovery. The profiled surface reduces the contact area during initial compression to concentrate the compressive force of the flange for improved sealability.

Designed for increased compressibility, GYLON EPIX™ improves performance in misaligned flanges. The consolidation of two thicknesses to one reduces the need to inventory multiple thicknesses. Garlock is dedicated to providing real sealing solutions that meet real world sealing needs. With an improved design, color-coded materials, and single thickness, GYLON EPIX™ makes sealing easier.

For additional information about specific GYLON EPIX™ products:

GYLON EPIX™ Style 3500 EPX

GYLON EPIX™ Style 3504 EPX

GYLON EPIX™ Style 3510 EPX

Case Study: GYLON EPIX™ 3504 EPX

GYLON EPIX™ - 3504 EPXGYLON EPIX™ is a family of gaskets that effectively seals a broader range of applications and is more forgiving during the installation process.  It allows the end user to save valuable turn-around time, reduce re-work, and lower costs, helping them to finish ahead of schedule and under budget.

GYLON EPIX™ features a hexagonal surface profile that provides the torque retention and blowout resistance of a thin gasket and the conformability of a thicker gasket.  GYLON EPIX™ Style 3504 EPX is a high performance, aluminosilicate microsphere filled PTFE sheet material designed for use in moderate concentrations of acids, and caustics, as well as hydrocarbons, refrigerants, and more.


INDUSTRY

Material Processor

CUSTOMER

Cement Manufacturer

BACKGROUND

The customer experienced gasket leaks in their piping system.  This caused lost time due to repairs and clean-up efforts.

CHALLENGES FACED

Several issues that plagued the system – abrasive media stream caused gasket and flange erosion, and low strength bolts prevented the customer from using higher performance gasketing materials that require higher assembly stresses to properly seal.

GYLON EPIX™ 3504 EPX

OPERATING CONDITIONS

  • Media: Dry Cement
  • Temperature: 185°F (85°C)
  • Pressure: 102 psig (7 bar)
  • Class 150 Raised Face Flanges
  • Grade 2 Bolts (low strengths, 57ksi yield strength)

SOLUTION AND BENEFITS

The customer’s desire to have a sealing solution that could work with flanges in their current condition, as well as the lower strength bolt led to the evaluation of the GYLON EPIX™ 3504 EPX in a 6″ 150# raised face flange.  The 3504 EPX gasket effectively seals the damaged flange faces with the lower strength SAE Grade 2 bolts.


Gallagher is your source for all of your Garlock sealing needs.  If you have further questions regarding the GYLON EPIX™ 3504 EPX, or any other Garlock products, please do not hesitate to contact us. Our engineering department is always ready to help you design a sealing solution to your toughest application!

Introducing Garlock GYLON EPIX™

In a world where we are bombarded with the belief that “more is better”, sealing science contradicts that theory with facts that show “thinner is better” when it comes to gaskets, as they provide improved load retention, pressure resistance and sealability. Yet thicker gaskets have their place for uneven, worn or damaged sealing surfaces. So how does a person make the right choice? What if there was a product that could do both?

Now there is…

GYLON EPIX™ is a family of gaskets that effectively seals a broader range of applications and is more forgiving during the installation process. GYLON EPIX™ allows the end user to save valuable turnaround time, reduce re-work, and lower costs, helping them to finish ahead of schedule and under budget.

Garlock GYLON EPIX™The innovative GYLON EPIX™, provides superior functional performance by combining the traditional attributes of GYLON® with an innovative surface design. It offers a broader range of applications than traditional PTFE gaskets used in worn and pitted flanges. In addition, GYLON EPIX™ delivers the sealing and load retention properties of 1/16” and the conformability of 1/8”. The hexagonal profile provides improved compressibility and recovery. The profiled surface reduces the contact area during initial compression to concentrate the compressive force of the flange for improved sealability.

Continue reading Introducing Garlock GYLON EPIX™
