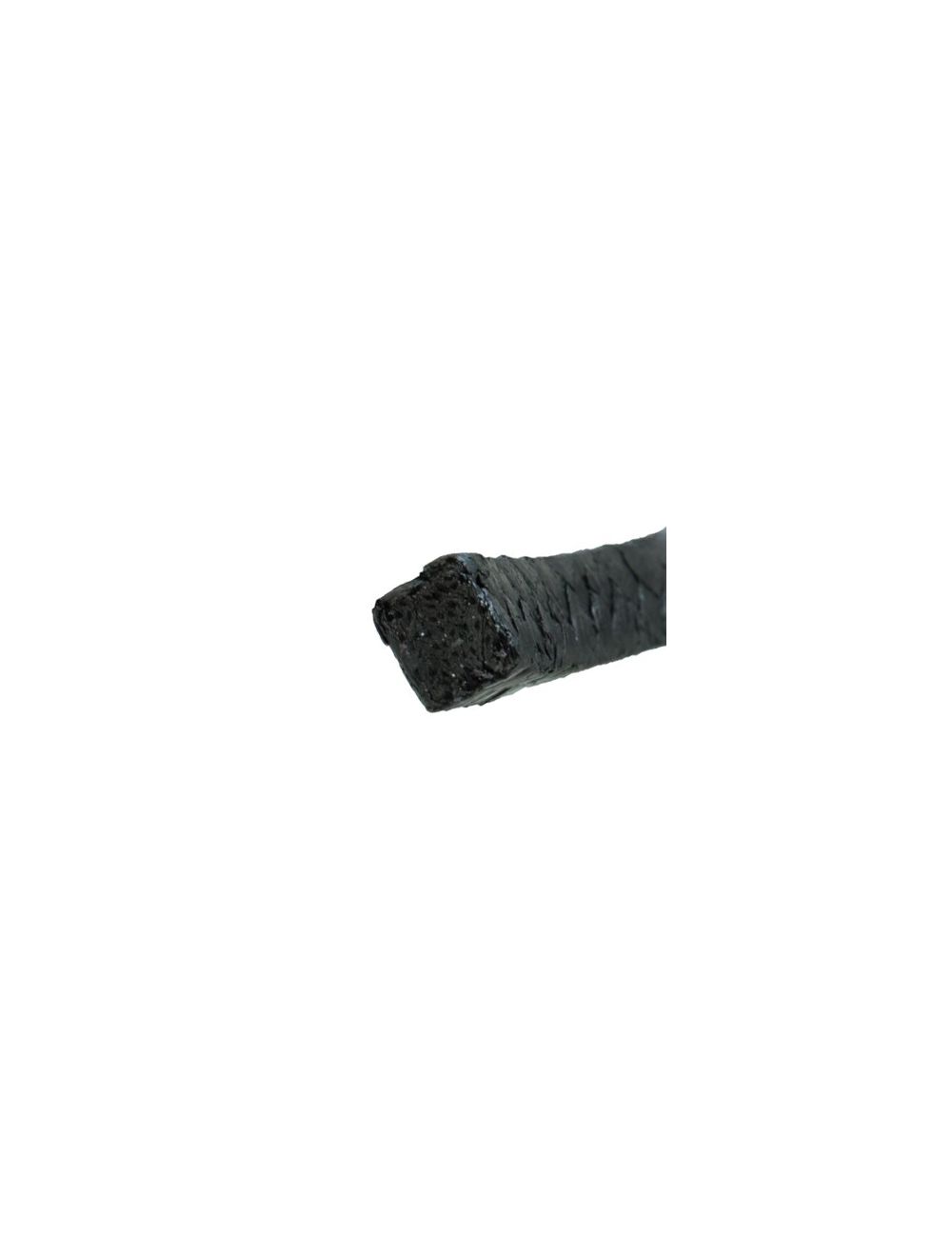

Garlock Style 1333-G Braided Packing

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

Request A Quote

Premium flexible Graphite (FG) packing with field proven performance and reliability. The packing material is reinforced with high purity graphite fiber yarn giving it superiority over other lower performing reinforcement materials.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Min Temperature (F) -328°
Max Temperature (F) 850°
Max Valve Pressure (PSI) 4000
Max Rotary Pump Pressure (PSI) 600

Features and Benefits

Offset square design makes installation easy and ensures a tight seal in worn or oversize stuffing boxes
All-graphite, PTFE-free construction maximizes reliability and stability in high temperatures, provides excellent chemical resistance, and dissipates heat quickly
Equipment runs cooler and requires less flush water
Graphite filament reinforcement resists extrusion in high pressure applications

Material Datasheets

Garlock Style 1333-G

Equivalent Materials

Chemstar Style 1100CR
American Braiding Style 5000OCC
Chesterton 1400R

Sort By

Grouped product items
PART NUMBER	Cross Section (In.)	Pounds (Lb.)	Ft. per Lb.	Manufacturer Part #	Ships Within	PRICE	ADD TO CART
Garlock Style 1333-G, 3/16 Inch CS 1 lb Carbon Graphite Braided Packing	Cross Section (In.) 3/16 Pounds (Lb.) 1 Ft. per Lb. 59.3 Manufacturer Part # 41033-1012 Ships Within 3 Days See more BP-PB-VJA-9V46-9V46-3036	3/16	1	59.3	41033-1012	3 Days	$166.41	Starting at: $166.41	PRICE QTY $166.41
Garlock Style 1333-G, 3/16 Inch CS 5 lb Carbon Graphite Braided Packing	Cross Section (In.) 3/16 Pounds (Lb.) 5 Ft. per Lb. 59.3 Manufacturer Part # 41033-2012 Ships Within 3 Days See more BP-PB-VJA-9V46-9V46-WH3B	3/16	5	59.3	41033-2012	3 Days	$832.06	Starting at: $832.06	PRICE QTY $832.06
Garlock Style 1333-G, 1/4 Inch CS 1 lb Carbon Graphite Braided Packing	Cross Section (In.) 1/4 Pounds (Lb.) 1 Ft. per Lb. 31 Manufacturer Part # 41033-1016 Ships Within 3 Days See more BP-PB-VJA-2TPS-2TPS-3036	1/4	1	31	41033-1016	3 Days	$166.41	Starting at: $166.41	PRICE QTY $166.41
Garlock Style 1333-G, 1/4 Inch CS 5 lb Carbon Graphite Braided Packing	Cross Section (In.) 1/4 Pounds (Lb.) 5 Ft. per Lb. 31 Manufacturer Part # 41033-2016 Ships Within 3 Days See more BP-PB-VJA-2TPS-2TPS-WH3B	1/4	5	31	41033-2016	3 Days	$832.06	Starting at: $832.06	PRICE QTY $832.06
Garlock Style 1333-G, 5/16 Inch CS 1 lb Carbon Graphite Braided Packing	Cross Section (In.) 5/16 Pounds (Lb.) 1 Ft. per Lb. 21.4 Manufacturer Part # 41033-1020 Ships Within 3 Days See more BP-PB-VJA-1S2M-1S2M-3036	5/16	1	21.4	41033-1020	3 Days	$166.41	Starting at: $166.41	PRICE QTY $166.41
Garlock Style 1333-G, 5/16 Inch CS 5 lb Carbon Graphite Braided Packing	Cross Section (In.) 5/16 Pounds (Lb.) 5 Ft. per Lb. 21.4 Manufacturer Part # 41033-2020 Ships Within 3 Days See more BP-PB-VJA-1S2M-1S2M-WH3B	5/16	5	21.4	41033-2020	3 Days	$832.06	Starting at: $832.06	PRICE QTY $832.06
Garlock Style 1333-G, 3/8 Inch CS 1 lb Carbon Graphite Braided Packing	Cross Section (In.) 3/8 Pounds (Lb.) 1 Ft. per Lb. 14.2 Manufacturer Part # 41033-1024 Ships Within 3 Days See more BP-PB-VJA-A52U-A52U-3036	3/8	1	14.2	41033-1024	3 Days	$166.41	Starting at: $166.41	PRICE QTY $166.41
Garlock Style 1333-G, 3/8 Inch CS 5 lb Carbon Graphite Braided Packing	Cross Section (In.) 3/8 Pounds (Lb.) 5 Ft. per Lb. 14.2 Manufacturer Part # 41033-2024 Ships Within 3 Days See more BP-PB-VJA-A52U-A52U-WH3B	3/8	5	14.2	41033-2024	3 Days	$832.06	Starting at: $832.06	PRICE QTY $832.06
Garlock Style 1333-G, 7/16 Inch CS 5 lb Carbon Graphite Braided Packing	Cross Section (In.) 7/16 Pounds (Lb.) 5 Ft. per Lb. 11.5 Manufacturer Part # 41033-2028 Ships Within 3 Days See more BP-PB-VJA-D4CX-D4CX-WH3B	7/16	5	11.5	41033-2028	3 Days	$832.06	Starting at: $832.06	PRICE QTY $832.06
Garlock Style 1333-G, 7/16 Inch CS 10 lb Carbon Graphite Braided Packing	Cross Section (In.) 7/16 Pounds (Lb.) 10 Ft. per Lb. 11.5 Manufacturer Part # 41033-3028 Ships Within 3 Days See more BP-PB-VJA-D4CX-D4CX-W80G	7/16	10	11.5	41033-3028	3 Days	$1,664.13	Starting at: $1,664.13	PRICE QTY $1,664.13
Garlock Style 1333-G, 1/2 Inch CS 5 lb Carbon Graphite Braided Packing	Cross Section (In.) 1/2 Pounds (Lb.) 5 Ft. per Lb. 8.7 Manufacturer Part # 41033-2032 Ships Within 3 Days See more BP-PB-VJA-8D8H-8D8H-WH3B	1/2	5	8.7	41033-2032	3 Days	$832.06	Starting at: $832.06	PRICE QTY $832.06
Garlock Style 1333-G, 1/2 Inch CS 10 lb Carbon Graphite Braided Packing	Cross Section (In.) 1/2 Pounds (Lb.) 10 Ft. per Lb. 8.7 Manufacturer Part # 41033-3032 Ships Within 3 Days See more BP-PB-VJA-8D8H-8D8H-W80G	1/2	10	8.7	41033-3032	3 Days	$1,664.13	Starting at: $1,664.13	PRICE QTY $1,664.13
Garlock Style 1333-G, 9/16 Inch CS 5 lb Carbon Graphite Braided Packing	Cross Section (In.) 9/16 Pounds (Lb.) 5 Ft. per Lb. 7.1 Manufacturer Part # 41033-2036 Ships Within 3 Days See more BP-PB-VJA-9H3H-9H3H-WH3B	9/16	5	7.1	41033-2036	3 Days	$832.06	Starting at: $832.06	PRICE QTY $832.06
Garlock Style 1333-G, 5/8 Inch CS 5 lb Carbon Graphite Braided Packing	Cross Section (In.) 5/8 Pounds (Lb.) 5 Ft. per Lb. 6.5 Manufacturer Part # 41033-2040 Ships Within 3 Days See more BP-PB-VJA-4KX1-4KX1-WH3B	5/8	5	6.5	41033-2040	3 Days	$832.06	Starting at: $832.06	PRICE QTY $832.06
Garlock Style 1333-G, 5/8 Inch CS 10 lb Carbon Graphite Braided Packing	Cross Section (In.) 5/8 Pounds (Lb.) 10 Ft. per Lb. 6.5 Manufacturer Part # 41033-3040 Ships Within 3 Days See more BP-PB-VJA-4KX1-4KX1-W80G	5/8	10	6.5	41033-3040	3 Days	$1,664.13	Starting at: $1,664.13	PRICE QTY $1,664.13
Garlock Style 1333-G, 11/16 Inch CS 10 lb Carbon Graphite Braided Packing	Cross Section (In.) 11/16 Pounds (Lb.) 10 Ft. per Lb. 5.3 Manufacturer Part # 41033-3044 Ships Within 3 Days See more BP-PB-VJA-L1Q4-L1Q4-W80G	11/16	10	5.3	41033-3044	3 Days	$1,664.13	Starting at: $1,664.13	PRICE QTY $1,664.13
Garlock Style 1333-G, 3/4 Inch CS 5 lb Carbon Graphite Braided Packing	Cross Section (In.) 3/4 Pounds (Lb.) 5 Ft. per Lb. 4.6 Manufacturer Part # 41033-2048 Ships Within 3 Days See more BP-PB-VJA-170A-170A-WH3B	3/4	5	4.6	41033-2048	3 Days	$832.06	Starting at: $832.06	PRICE QTY $832.06
Garlock Style 1333-G, 3/4 Inch CS 10 lb Carbon Graphite Braided Packing	Cross Section (In.) 3/4 Pounds (Lb.) 10 Ft. per Lb. 4.6 Manufacturer Part # 41033-3048 Ships Within 3 Days See more BP-PB-VJA-170A-170A-W80G	3/4	10	4.6	41033-3048	3 Days	$1,664.13	Starting at: $1,664.13	PRICE QTY $1,664.13
Garlock Style 1333-G, 7/8 Inch CS 10 lb Carbon Graphite Braided Packing	Cross Section (In.) 7/8 Pounds (Lb.) 10 Ft. per Lb. 3.1 Manufacturer Part # 41033-3056 Ships Within 3 Days See more BP-PB-VJA-7FRV-7FRV-W80G	7/8	10	3.1	41033-3056	3 Days	$1,664.13	Starting at: $1,664.13	PRICE QTY $1,664.13
Garlock Style 1333-G, 1 Inch CS 10 lb Carbon Graphite Braided Packing	Cross Section (In.) 1 Pounds (Lb.) 10 Ft. per Lb. 2.1 Manufacturer Part # 41033-3064 Ships Within 3 Days See more BP-PB-VJA-3036-3036-W80G	1	10	2.1	41033-3064	3 Days	$1,664.13	Starting at: $1,664.13	PRICE QTY $1,664.13
