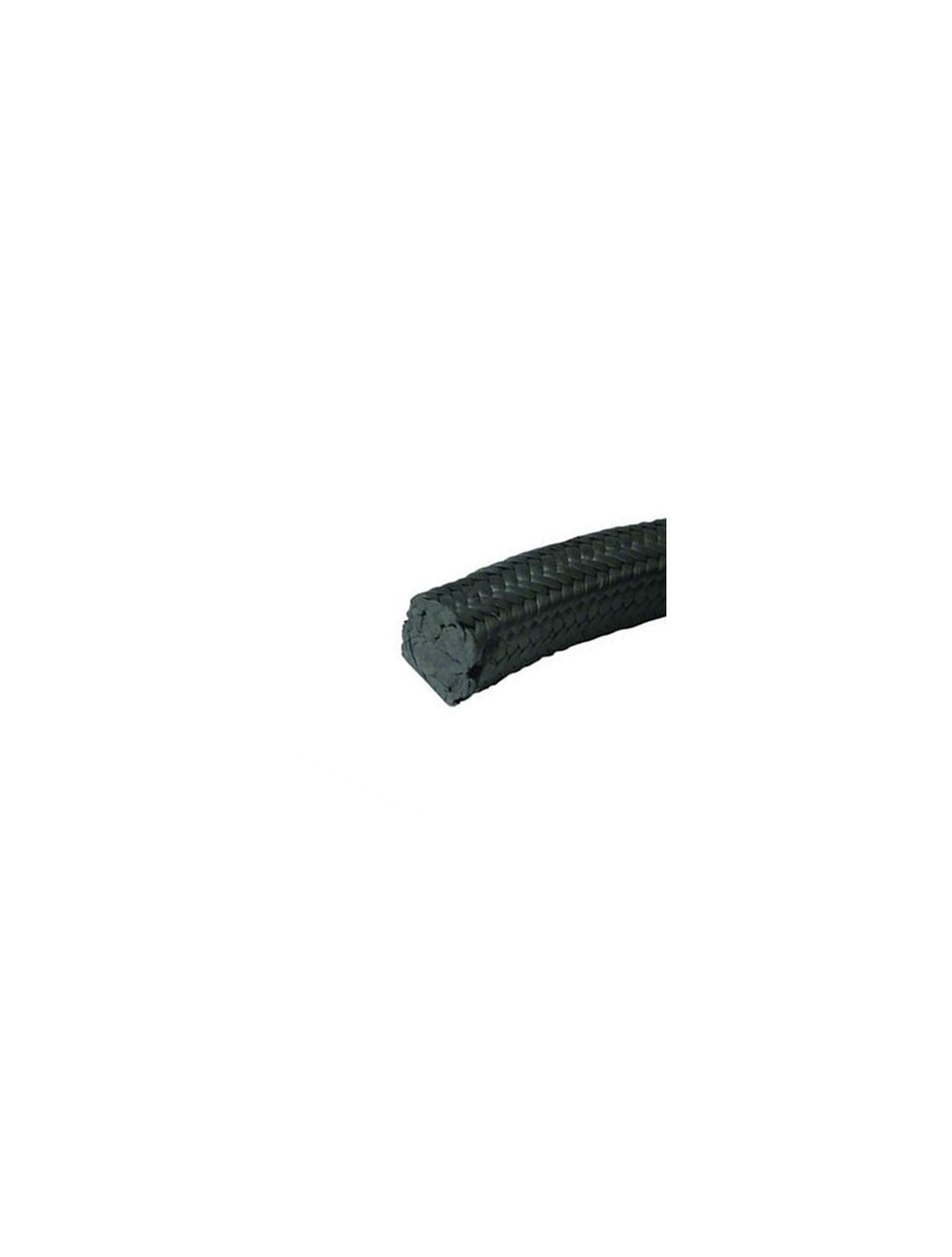

GFS Style CG-680 Braided Packing

GFS Style CG-680 Braided Packing

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

Request A Quote

Braided from pure graphite filament, CG-680 is designed to withstand the extreme pressure and temperature associated with applications involving aggressive chemicals. Impregnated with a proprietary blocking agent and Graphite flake finish, CG-680 has an extremely low coefficient of friction.

PERFORMANCE & SPECIFICATIONS

Braided from pure graphite filament, CG-680 is designed to withstand the extreme pressure and temperature associated with applications involving aggressive chemicals. Impregnated with a proprietary blocking agent and Graphite flake finish, CG-680 has an extremely low coefficient of friction.

  •  Performance
    • Max Temperature Air (F) 850°
    • Max Temperature Steam (F) 1200°
    • Max Rotary Pump Pressure (PSI) 500
    • Max Valve Pressure (PSI) 2500
  • Features and Benefits
    • Low coefficient of friction
    • High thermal conductivity
    • Resists fraying
    • Good chemical resistance
  • Equivalent Materials
    • Chemstar Style 160
    • American Braiding Style 8000G
    • Garlock Style 200
    • SEPCO ML4444
    • Palmetto Style 1555
    • Chesterton 1/375
Braided Packing Cross Section
Braided Packing Cross Section
APPLY
x clear all
Packing Poundage
Packing Poundage
APPLY
x clear all
Grouped product items
PART NUMBER Cross Section (In.) Pounds (Lb.) Ft. per Lb. Ships Within
PRICE
ADD TO CART
GFS Style CG-680, 1/8 Inch CS 1 lb Carbon Graphite Braided Packing

Cross Section (In.) 1/8

Pounds (Lb.) 1

Ft. per Lb. 120

Ships Within 3 Days

See more

Starting at: $254.72
PRICE QTY
$254.72
GFS Style CG-680, 3/16 Inch CS 1 lb Carbon Graphite Braided Packing

Cross Section (In.) 3/16

Pounds (Lb.) 1

Ft. per Lb. 60

Ships Within 3 Days

See more

Starting at: $247.31
PRICE QTY
$247.31
GFS Style CG-680, 1/4 Inch CS 1 lb Carbon Graphite Braided Packing

Cross Section (In.) 1/4

Pounds (Lb.) 1

Ft. per Lb. 30

Ships Within 3 Days

See more

Starting at: $235.64
PRICE QTY
$235.64
GFS Style CG-680, 1/4 Inch CS 5 lb Carbon Graphite Braided Packing

Cross Section (In.) 1/4

Pounds (Lb.) 5

Ft. per Lb. 30

Ships Within 3 Days

See more

Starting at: $1,169.78
PRICE QTY
$1,169.78
GFS Style CG-680, 5/16 Inch CS 2 lb Carbon Graphite Braided Packing

Cross Section (In.) 5/16

Pounds (Lb.) 2

Ft. per Lb. 19.2

Ships Within 3 Days

See more

Starting at: $456.89
PRICE QTY
$456.89
GFS Style CG-680, 5/16 Inch CS 5 lb Carbon Graphite Braided Packing

Cross Section (In.) 5/16

Pounds (Lb.) 5

Ft. per Lb. 19.2

Ships Within 3 Days

See more

Starting at: $1,049.83
PRICE QTY
$1,049.83
GFS Style CG-680, 3/8 Inch CS 1 lb Carbon Graphite Braided Packing

Cross Section (In.) 3/8

Pounds (Lb.) 1

Ft. per Lb. 13.7

Ships Within 3 Days

See more

Starting at: $222.21
PRICE QTY
$222.21
GFS Style CG-680, 3/8 Inch CS 5 lb Carbon Graphite Braided Packing

Cross Section (In.) 3/8

Pounds (Lb.) 5

Ft. per Lb. 13.7

Ships Within 3 Days

See more

Starting at: $1,102.67
PRICE QTY
$1,102.67
GFS Style CG-680, 1/2 Inch CS 1 lb Carbon Graphite Braided Packing

Cross Section (In.) 1/2

Pounds (Lb.) 1

Ft. per Lb. 8.3

Ships Within 3 Days

See more

Starting at: $222.21
PRICE QTY
$222.21
GFS Style CG-680, 1/2 Inch CS 2 lb Carbon Graphite Braided Packing

Cross Section (In.) 1/2

Pounds (Lb.) 2

Ft. per Lb. 8.3

Ships Within 3 Days

See more

Starting at: $444.43
PRICE QTY
$444.43
GFS Style CG-680, 1/2 Inch CS 5 lb Carbon Graphite Braided Packing

Cross Section (In.) 1/2

Pounds (Lb.) 5

Ft. per Lb. 8.3

Ships Within 3 Days

See more

Starting at: $1,102.67
PRICE QTY
$1,102.67
GFS Style CG-680, 9/16 Inch CS 1 lb Carbon Graphite Braided Packing

Cross Section (In.) 9/16

Pounds (Lb.) 1

Ft. per Lb. 5.3

Ships Within 3 Days

See more

Starting at: $222.21
PRICE QTY
$222.21
GFS Style CG-680, 3/4 Inch CS 5 lb Carbon Graphite Braided Packing

Cross Section (In.) 3/4

Pounds (Lb.) 5

Ft. per Lb. 3.3

Ships Within 3 Days

See more

Starting at: $1,102.67
PRICE QTY
$1,102.67
GFS Style CG-680, 3/4 Inch CS 10 lb Carbon Graphite Braided Packing

Cross Section (In.) 3/4

Pounds (Lb.) 10

Ft. per Lb. 3.3

Ships Within 3 Days

See more

Starting at: $2,205.34
PRICE QTY
$2,205.34
GFS Style CG-680, 7/8 Inch CS 10 lb Carbon Graphite Braided Packing

Cross Section (In.) 7/8

Pounds (Lb.) 10

Ft. per Lb. 2.5

Ships Within 3 Days

See more

Starting at: $2,205.34
PRICE QTY
$2,205.34
GFS Style CG-680, 1 Inch CS 10 lb Carbon Graphite Braided Packing

Cross Section (In.) 1

Pounds (Lb.) 10

Ft. per Lb. 2

Ships Within 3 Days

See more

Starting at: $2,205.34
PRICE QTY
$2,205.34
