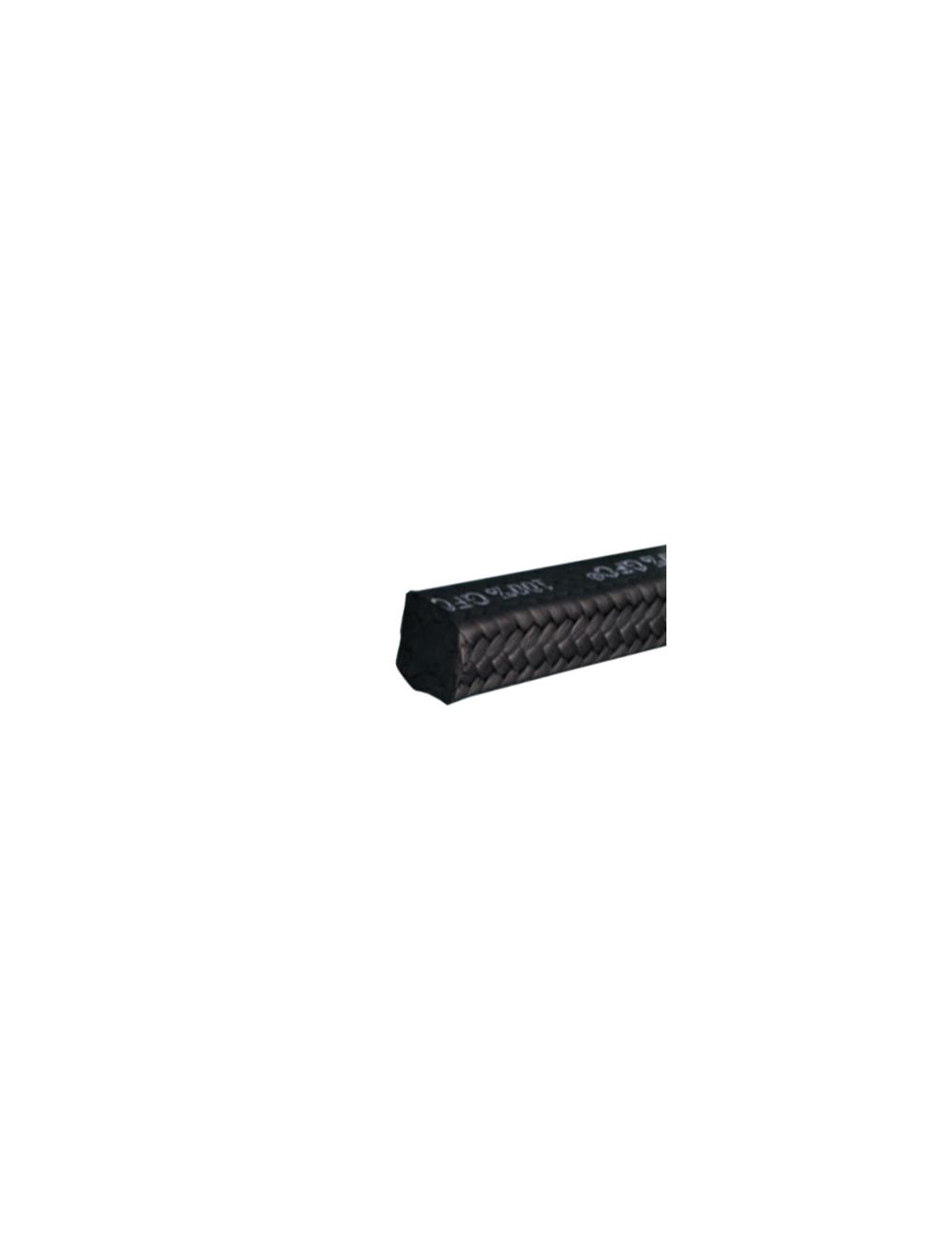

GFS PTFE-900 Braided Packing

Skip to the beginning of the images gallery

GFS PTFE-900 Braided Packing

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

Braided from 100% genuine GFO® fiber, a filament yarn made from finely ground particles of high quality graphite encapsulated in a Teflon® matrix to eliminate graphite migration.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Braided from 100% genuine GFO® fiber, a filament yarn made from finely ground particles of high quality graphite encapsulated in a Teflon® matrix to eliminate graphite migration.

Performance

Max Temperature (F) 550°
Max Rotary Pump Pressure (PSI) 300
Max Rotary Valve Pressure (PSI) 2000
Max Rotary Pump Speed (fpm) 4300

Features and Benefits

Easy to install
Speed capability
Low coefficient of friction
Chemical resistance

Material Datasheets

GFS PTFE-900

Equivalent Materials

Chemstar Style 165
American Braiding Style 8000T
Garlock Style 5100
SEPCO ML4002
Palmetto Style 1389

Sort By

Grouped product items
PART NUMBER	Cross Section (In.)	Pounds (Lb.)	Ft. per Lb.	Ships Within	PRICE	ADD TO CART
GFS PTFE-900, 1/8 Inch CS 1 lb PTFE Braided Packing	Cross Section (In.) 1/8 Pounds (Lb.) 1 Ft. per Lb. 65 Ships Within 3 Days See more BP-PB-05E-15Y3-15Y3-3036	1/8	1	65	3 Days	$182.17	Starting at: $182.17	PRICE QTY $182.17
GFS PTFE-900, 1/8 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 1/8 Pounds (Lb.) 5 Ft. per Lb. 65 Ships Within 3 Days See more BP-PB-05E-15Y3-15Y3-WH3B	1/8	5	65	3 Days	$896.35	Starting at: $896.35	PRICE QTY $896.35
GFS PTFE-900, 3/16 Inch CS 1 lb PTFE Braided Packing	Cross Section (In.) 3/16 Pounds (Lb.) 1 Ft. per Lb. 42 Ships Within 3 Days See more BP-PB-05E-9V46-9V46-3036	3/16	1	42	3 Days	$173.27	Starting at: $173.27	PRICE QTY $173.27
GFS PTFE-900, 3/16 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 3/16 Pounds (Lb.) 5 Ft. per Lb. 42 Ships Within 3 Days See more BP-PB-05E-9V46-9V46-WH3B	3/16	5	42	3 Days	$851.87	Starting at: $851.87	PRICE QTY $851.87
GFS PTFE-900, 1/4 Inch CS 1 lb PTFE Braided Packing	Cross Section (In.) 1/4 Pounds (Lb.) 1 Ft. per Lb. 20 Ships Within 3 Days See more BP-PB-05E-2TPS-2TPS-3036	1/4	1	20	3 Days	$160.55	Starting at: $160.55	PRICE QTY $160.55
GFS PTFE-900, 1/4 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 1/4 Pounds (Lb.) 5 Ft. per Lb. 20 Ships Within 3 Days See more BP-PB-05E-2TPS-2TPS-WH3B	1/4	5	20	3 Days	$788.26	Starting at: $788.26	PRICE QTY $788.26
GFS PTFE-900, 5/16 Inch CS 1 lb PTFE Braided Packing	Cross Section (In.) 5/16 Pounds (Lb.) 1 Ft. per Lb. 14.3 Ships Within 3 Days See more BP-PB-05E-1S2M-1S2M-3036	5/16	1	14.3	3 Days	$154.06	Starting at: $154.06	PRICE QTY $154.06
GFS PTFE-900, 5/16 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 5/16 Pounds (Lb.) 5 Ft. per Lb. 14.3 Ships Within 3 Days See more BP-PB-05E-1S2M-1S2M-WH3B	5/16	5	14.3	3 Days	$755.80	Starting at: $755.80	PRICE QTY $755.80
GFS PTFE-900, 3/8 Inch CS 2 lb PTFE Braided Packing	Cross Section (In.) 3/8 Pounds (Lb.) 2 Ft. per Lb. 10 Ships Within 3 Days See more BP-PB-05E-A52U-A52U-9Y18	3/8	2	10	3 Days	$165.24	Starting at: $165.24	PRICE QTY $165.24
GFS PTFE-900, 3/8 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 3/8 Pounds (Lb.) 5 Ft. per Lb. 10 Ships Within 3 Days See more BP-PB-05E-A52U-A52U-WH3B	3/8	5	10	3 Days	$398.62	Starting at: $398.62	PRICE QTY $398.62
GFS PTFE-900, 1/2 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 1/2 Pounds (Lb.) 5 Ft. per Lb. 5.6 Ships Within 3 Days See more BP-PB-05E-8D8H-8D8H-WH3B	1/2	5	5.6	3 Days	$398.62	Starting at: $398.62	PRICE QTY $398.62
GFS PTFE-900, 1/2 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 1/2 Pounds (Lb.) 10 Ft. per Lb. 5.6 Ships Within 3 Days See more BP-PB-05E-8D8H-8D8H-W80G	1/2	10	5.6	3 Days	$797.24	Starting at: $797.24	PRICE QTY $797.24
GFS PTFE-900, 5/8 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 5/8 Pounds (Lb.) 5 Ft. per Lb. 3.8 Ships Within 3 Days See more BP-PB-05E-4KX1-4KX1-WH3B	5/8	5	3.8	3 Days	$398.62	Starting at: $398.62	PRICE QTY $398.62
GFS PTFE-900, 5/8 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 5/8 Pounds (Lb.) 10 Ft. per Lb. 3.8 Ships Within 3 Days See more BP-PB-05E-4KX1-4KX1-W80G	5/8	10	3.8	3 Days	$797.24	Starting at: $797.24	PRICE QTY $797.24
GFS PTFE-900, 3/4 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 3/4 Pounds (Lb.) 10 Ft. per Lb. 2.6 Ships Within 3 Days See more BP-PB-05E-170A-170A-W80G	3/4	10	2.6	3 Days	$797.24	Starting at: $797.24	PRICE QTY $797.24
GFS PTFE-900, 7/8 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 7/8 Pounds (Lb.) 10 Ft. per Lb. 2.1 Ships Within 3 Days See more BP-PB-05E-7FRV-7FRV-W80G	7/8	10	2.1	3 Days	$797.24	Starting at: $797.24	PRICE QTY $797.24
GFS PTFE-900, 1 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 1 Pounds (Lb.) 10 Ft. per Lb. 1.56 Ships Within 3 Days See more BP-PB-05E-3036-3036-W80G	1	10	1.56	3 Days	$797.24	Starting at: $797.24	PRICE QTY $797.24
