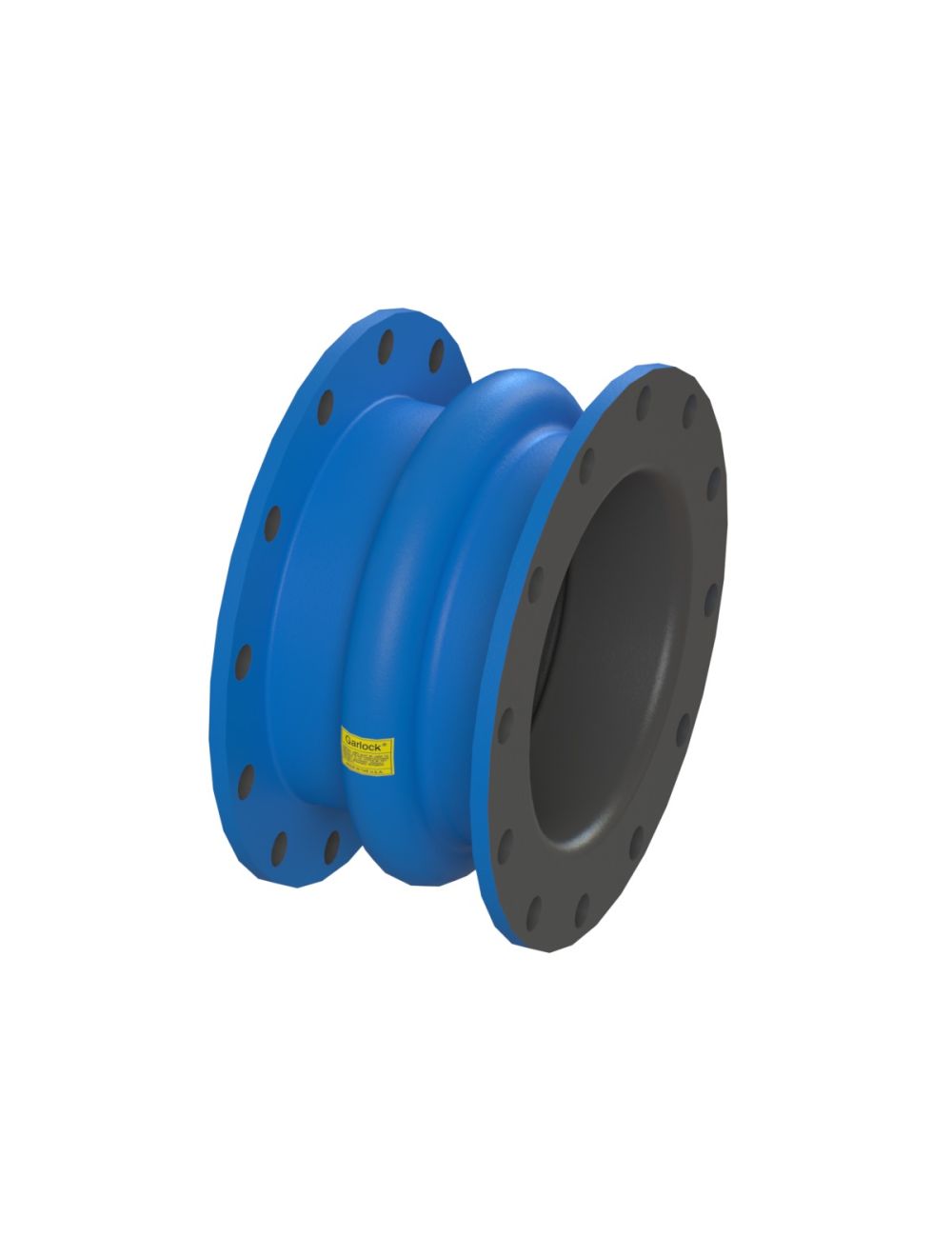

Garlock Style 204HP Expansion Joint
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.
Style 204HP spool-type non-metallic piping expansion joints are manufactured with the industry standard narrow arch design, intended for use in dynamic conditions where both high-pressure and vacuum concerns are present. Utilize Garlock styles 204EPS or 204MAX Expansion Joints for extreme pressure requirements. Control units are recommended for most applications to prevent damage to the expansion joint from excessive pipe movement (sold separately).
PERFORMANCE & SPECIFICATIONS
- Performance
- Pressure (Max) 200 psi
- Temperature Range (F) -40 to 400
- Features
- Fully laboratory and field tested for long life and exceptional reliability
- Single and multi-arch designs are available for a range of movement capabilities
- High pressure and vacuum resistance offer increased safety and ensure suitability for a wide range of applications
- Material Datasheets
| PART NUMBER | Nominal Pipe Size (In.) | Face to Face Length (In.) | Number of Bolt Holes | Pressure (psi) | Max Temperature | Vacuum (in.Hg) | Body Material | Cover Material | Tube Material | Pressure Rating (lbs) | Arch Type | Ships Within | PRICE | ADD TO CART | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style 204HP Expansion Joint 97219-6524, 0.5" Nominal Pipe Size, ASME Cl 150, Chlorobutyl Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 0.5 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material Chlorobutyl Pressure Rating (lbs) ASME Cl 150 Arch Type Filled Ships Within 4-6 Weeks See more | 0.5 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | Chlorobutyl | ASME Cl 150 | Filled | 4-6 Weeks | $1,041.70 | Starting at: $1,041.70 | |
| Style 204HP Expansion Joint 97219-0124, 1" Nominal Pipe Size, ASME Cl 150, Chlorobutyl Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material Chlorobutyl Pressure Rating (lbs) ASME Cl 150 Arch Type Filled Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | Chlorobutyl | ASME Cl 150 | Filled | 4-6 Weeks | $1,041.70 | Starting at: $1,041.70 | |
| Style 204HP Expansion Joint 97227-0124, 1" Nominal Pipe Size, ASME Cl 150, EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material EPDM Tube Material EPDM Pressure Rating (lbs) ASME Cl 150 Arch Type Filled Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | EPDM | EPDM | ASME Cl 150 | Filled | 4-6 Weeks | $1,406.28 | Starting at: $1,406.28 | |
| Style 204HP Expansion Joint 97229-0124, 1" Nominal Pipe Size, ASME Cl 150, Nitrile Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material Nitrile Pressure Rating (lbs) ASME Cl 150 Arch Type Filled Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | Nitrile | ASME Cl 150 | Filled | 4-6 Weeks | $1,250.04 | Starting at: $1,250.04 | |
| Style 204HP Expansion Joint 972MLC-0124, 1" Nominal Pipe Size, ASME Cl 150, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 150 Arch Type Filled Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 150 | Filled | 4-6 Weeks | $1,250.04 | Starting at: $1,250.04 | |
| Style 204HP Expansion Joint 971MLC-0124, 1" Nominal Pipe Size, ASME Cl 150, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 150 Arch Type Hollow Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 150 | Hollow | 4-6 Weeks | $1,250.04 | Starting at: $1,250.04 | |
| Style 204HP Expansion Joint 972MLH-0124, 1" Nominal Pipe Size, ASME Cl 150, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material EPDM Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 150 Arch Type Filled Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | EPDM | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 150 | Filled | 4-6 Weeks | $1,406.48 | Starting at: $1,406.48 | |
| Style 204HP Expansion Joint 971MLH-0124, 1" Nominal Pipe Size, ASME Cl 150, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material EPDM Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 150 Arch Type Hollow Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | EPDM | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 150 | Hollow | 4-6 Weeks | $1,406.29 | Starting at: $1,406.29 | |
| Style 204HP Expansion Joint 972MMZ-0124, 1" Nominal Pipe Size, ASME Cl 300, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 300 Arch Type Filled Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 300 | Filled | 4-6 Weeks | $1,250.04 | Starting at: $1,250.04 | |
| Style 204HP Expansion Joint 971MMZ-0124, 1" Nominal Pipe Size, ASME Cl 300, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 300 Arch Type Hollow Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 300 | Hollow | 4-6 Weeks | $1,250.04 | Starting at: $1,250.04 | |
| Style 204HP Expansion Joint 972MN4-0124, 1" Nominal Pipe Size, ASME Cl 300, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material EPDM Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 300 Arch Type Filled Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | EPDM | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 300 | Filled | 4-6 Weeks | $1,406.48 | Starting at: $1,406.48 | |
| Style 204HP Expansion Joint 971MN4-0124, 1" Nominal Pipe Size, ASME Cl 300, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material EPDM Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 300 Arch Type Hollow Ships Within 4-6 Weeks See more | 1 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | EPDM | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 300 | Hollow | 4-6 Weeks | $1,406.29 | Starting at: $1,406.29 | |
| Style 204HP Expansion Joint 972MLC-6824, 1.25" Nominal Pipe Size, ASME Cl 150, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1.25 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 150 Arch Type Filled Ships Within 4-6 Weeks See more | 1.25 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 150 | Filled | 4-6 Weeks | $1,250.04 | Starting at: $1,250.04 | |
| Style 204HP Expansion Joint 971MLC-6824, 1.25" Nominal Pipe Size, ASME Cl 150, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1.25 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 150 Arch Type Hollow Ships Within 4-6 Weeks See more | 1.25 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 150 | Hollow | 4-6 Weeks | $1,250.04 | Starting at: $1,250.04 | |
| Style 204HP Expansion Joint 972MLH-6824, 1.25" Nominal Pipe Size, ASME Cl 150, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1.25 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material EPDM Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 150 Arch Type Filled Ships Within 4-6 Weeks See more | 1.25 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | EPDM | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 150 | Filled | 4-6 Weeks | $1,406.48 | Starting at: $1,406.48 | |
| Style 204HP Expansion Joint 971MLH-6824, 1.25" Nominal Pipe Size, ASME Cl 150, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1.25 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material EPDM Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 150 Arch Type Hollow Ships Within 4-6 Weeks See more | 1.25 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | EPDM | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 150 | Hollow | 4-6 Weeks | $1,406.29 | Starting at: $1,406.29 | |
| Style 204HP Expansion Joint 972MMZ-6824, 1.25" Nominal Pipe Size, ASME Cl 300, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1.25 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 300 Arch Type Filled Ships Within 4-6 Weeks See more | 1.25 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 300 | Filled | 4-6 Weeks | $1,250.04 | Starting at: $1,250.04 | |
| Style 204HP Expansion Joint 971MMZ-6824, 1.25" Nominal Pipe Size, ASME Cl 300, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1.25 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material CIIR Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 300 Arch Type Hollow Ships Within 4-6 Weeks See more | 1.25 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | CIIR | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 300 | Hollow | 4-6 Weeks | $1,250.04 | Starting at: $1,250.04 | |
| Style 204HP Expansion Joint 972MN4-6824, 1.25" Nominal Pipe Size, ASME Cl 300, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1.25 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material EPDM Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 300 Arch Type Filled Ships Within 4-6 Weeks See more | 1.25 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | EPDM | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 300 | Filled | 4-6 Weeks | $1,406.48 | Starting at: $1,406.48 | |
| Style 204HP Expansion Joint 971MN4-6824, 1.25" Nominal Pipe Size, ASME Cl 300, SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Tube Material, Polyester Body Material | Nominal Pipe Size (In.) 1.25 Face to Face Length (In.) 6.000000 Number of Bolt Holes 4 Pressure (psi) 200 Max Temperature 250 Vacuum (in.Hg) 29.9 Body Material Polyester Cover Material EPDM Tube Material SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM Pressure Rating (lbs) ASME Cl 300 Arch Type Hollow Ships Within 4-6 Weeks See more | 1.25 | 6.000000 | 4 | 200 | 250 | 29.9 | Polyester | EPDM | SURE-TEC™ FDA Compliant/NSF® 61 Certified EPDM | ASME Cl 300 | Hollow | 4-6 Weeks | $1,406.29 | Starting at: $1,406.29 |
