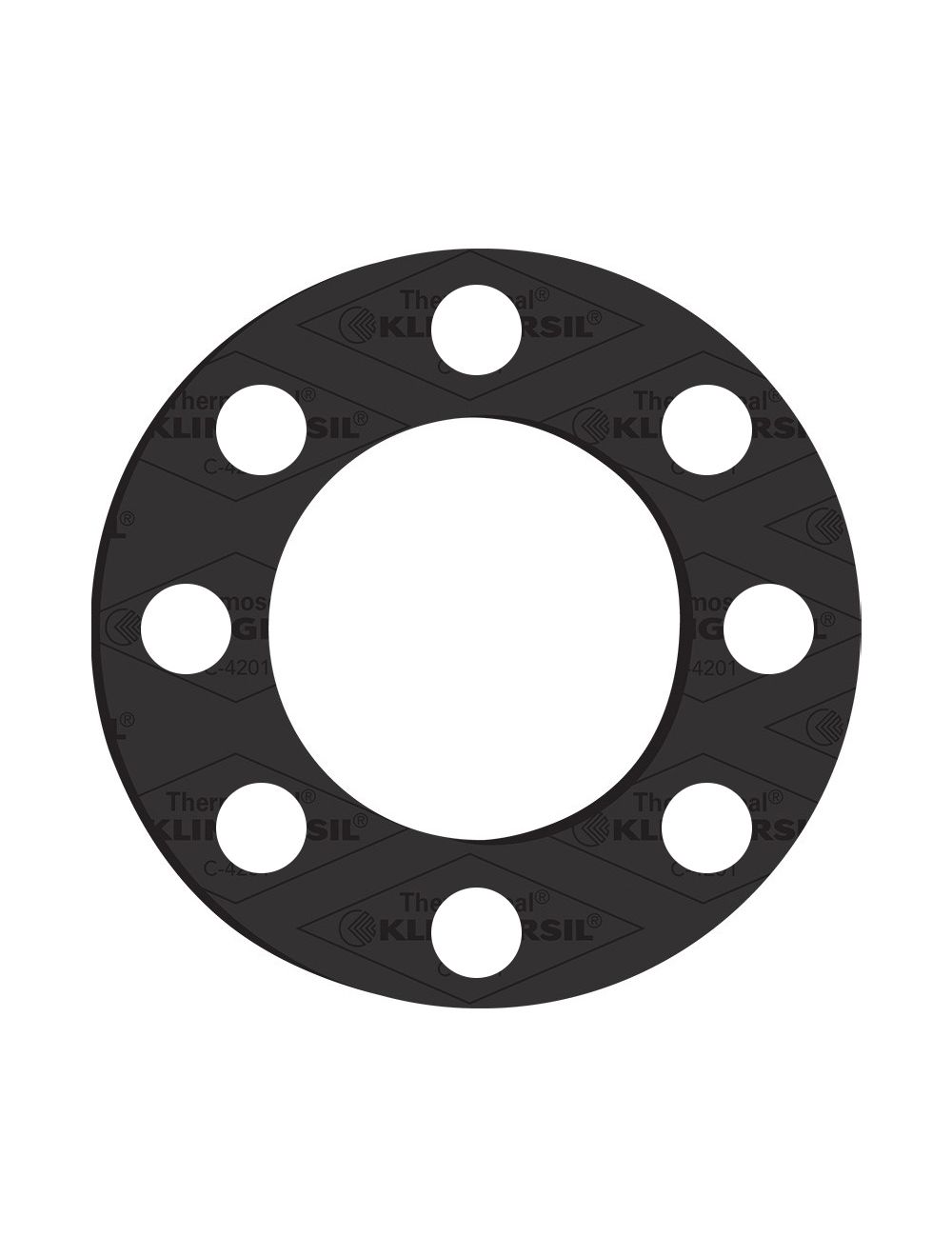

Klingersil C4201 Full-Face Gasket

Skip to the beginning of the images gallery

Klingersil C4201 Full-Face Gasket

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

Thermoseal's KLINGERSIL C-4201 is a general application gasket material that offers excellent resistance to oils and solvents and is an excellent choice for OEM applications. This compressed fiber gasket material is manufactured with a combination of synthetic fibers reinforced with a nitrile binder.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Max Temperature (F) 475°
Continuous Max (F) 390°
Continuous Max with Steam (F) 300°
Max Pressure (PSI) 375

Recommended Applications

Chemical products
Oil
Low temperature steam
Water

Material Datasheets

Klingersil C4201

Sort By

Grouped product items
PART NUMBER	Nominal Pipe Size	Pressure Rating (lbs)	Flange Standard (ASME)	Thickness (In.)	Inner Diameter (In.)	Outer Diameter (In.)	Ships Within	PRICE	ADD TO CART
1/2" 150# 1/64" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 0.840 Outer Diameter (In.) 3.500 Ships Within 3 Days See more GK-FS-4DE-F8Q9-1W84-V35S	1/2	150	ASME B16.5	1/64	0.840	3.500	3 Days	$3.00	Starting at: $3.00	PRICE QTY $3.00
1/2" 150# 1/32" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 3.500 Ships Within 3 Days See more GK-FS-4DE-F8Q9-1W84-8PGR	1/2	150	ASME B16.5	1/32	0.840	3.500	3 Days	$3.03	Starting at: $3.03	PRICE QTY $3.03
1/2" 150# 1/16" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 0.840 Outer Diameter (In.) 3.500 Ships Within 3 Days See more GK-FS-4DE-F8Q9-1W84-PT93	1/2	150	ASME B16.5	1/16	0.840	3.500	3 Days	$3.20	Starting at: $3.20	PRICE QTY $3.20
1/2" 150# 1/8" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 3.500 Ships Within 3 Days See more GK-FS-4DE-F8Q9-1W84-15Y3	1/2	150	ASME B16.5	1/8	0.840	3.500	3 Days	$3.69	Starting at: $3.69	PRICE QTY $3.69
1/2" 300# 1/64" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 0.840 Outer Diameter (In.) 3.750 Ships Within 3 Days See more GK-FS-4DE-F8Q9-TZ0E-V35S	1/2	300	ASME B16.5	1/64	0.840	3.750	3 Days	$3.05	Starting at: $3.05	PRICE QTY $3.05
1/2" 300# 1/32" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 3.750 Ships Within 3 Days See more GK-FS-4DE-F8Q9-TZ0E-8PGR	1/2	300	ASME B16.5	1/32	0.840	3.750	3 Days	$3.09	Starting at: $3.09	PRICE QTY $3.09
1/2" 300# 1/16" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 0.840 Outer Diameter (In.) 3.750 Ships Within 3 Days See more GK-FS-4DE-F8Q9-TZ0E-PT93	1/2	300	ASME B16.5	1/16	0.840	3.750	3 Days	$3.29	Starting at: $3.29	PRICE QTY $3.29
1/2" 300# 1/8" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 3.750 Ships Within 3 Days See more GK-FS-4DE-F8Q9-TZ0E-15Y3	1/2	300	ASME B16.5	1/8	0.840	3.750	3 Days	$3.85	Starting at: $3.85	PRICE QTY $3.85
3/4" 150# 1/64" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 1.060 Outer Diameter (In.) 3.880 Ships Within 3 Days See more GK-FS-4DE-G56P-ML14-V35S	3/4	150	ASME B16.5	1/64	1.060	3.880	3 Days	$3.09	Starting at: $3.09	PRICE QTY $3.09
3/4" 150# 1/32" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 3.880 Ships Within 3 Days See more GK-FS-4DE-G56P-ML14-8PGR	3/4	150	ASME B16.5	1/32	1.060	3.880	3 Days	$3.14	Starting at: $3.14	PRICE QTY $3.14
3/4" 150# 1/16" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.060 Outer Diameter (In.) 3.880 Ships Within 3 Days See more GK-FS-4DE-G56P-ML14-PT93	3/4	150	ASME B16.5	1/16	1.060	3.880	3 Days	$3.35	Starting at: $3.35	PRICE QTY $3.35
3/4" 150# 1/8" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 3.880 Ships Within 3 Days See more GK-FS-4DE-G56P-ML14-15Y3	3/4	150	ASME B16.5	1/8	1.060	3.880	3 Days	$3.95	Starting at: $3.95	PRICE QTY $3.95
3/4" 300# 1/64" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 1.060 Outer Diameter (In.) 4.620 Ships Within 3 Days See more GK-FS-4DE-G56P-960N-V35S	3/4	300	ASME B16.5	1/64	1.060	4.620	3 Days	$3.31	Starting at: $3.31	PRICE QTY $3.31
3/4" 300# 1/32" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 4.620 Ships Within 3 Days See more GK-FS-4DE-G56P-960N-8PGR	3/4	300	ASME B16.5	1/32	1.060	4.620	3 Days	$3.36	Starting at: $3.36	PRICE QTY $3.36
3/4" 300# 1/16" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.060 Outer Diameter (In.) 4.620 Ships Within 3 Days See more GK-FS-4DE-G56P-960N-PT93	3/4	300	ASME B16.5	1/16	1.060	4.620	3 Days	$3.66	Starting at: $3.66	PRICE QTY $3.66
3/4" 300# 1/8" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 4.620 Ships Within 3 Days See more GK-FS-4DE-G56P-960N-15Y3	3/4	300	ASME B16.5	1/8	1.060	4.620	3 Days	$4.50	Starting at: $4.50	PRICE QTY $4.50
1" 150# 1/64" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 1.310 Outer Diameter (In.) 4.250 Ships Within 3 Days See more GK-FS-4DE-E4XU-9696-V35S	1	150	ASME B16.5	1/64	1.310	4.250	3 Days	$3.20	Starting at: $3.20	PRICE QTY $3.20
1" 150# 1/32" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.310 Outer Diameter (In.) 4.250 Ships Within 3 Days See more GK-FS-4DE-E4XU-9696-8PGR	1	150	ASME B16.5	1/32	1.310	4.250	3 Days	$3.25	Starting at: $3.25	PRICE QTY $3.25
1" 150# 1/16" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.310 Outer Diameter (In.) 4.250 Ships Within 3 Days See more GK-FS-4DE-E4XU-9696-PT93	1	150	ASME B16.5	1/16	1.310	4.250	3 Days	$3.50	Starting at: $3.50	PRICE QTY $3.50
1" 150# 1/8" Thk C4201 ASME B16.5 Full Face Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.310 Outer Diameter (In.) 4.250 Ships Within 3 Days See more GK-FS-4DE-E4XU-9696-15Y3	1	150	ASME B16.5	1/8	1.310	4.250	3 Days	$4.21	Starting at: $4.21	PRICE QTY $4.21
