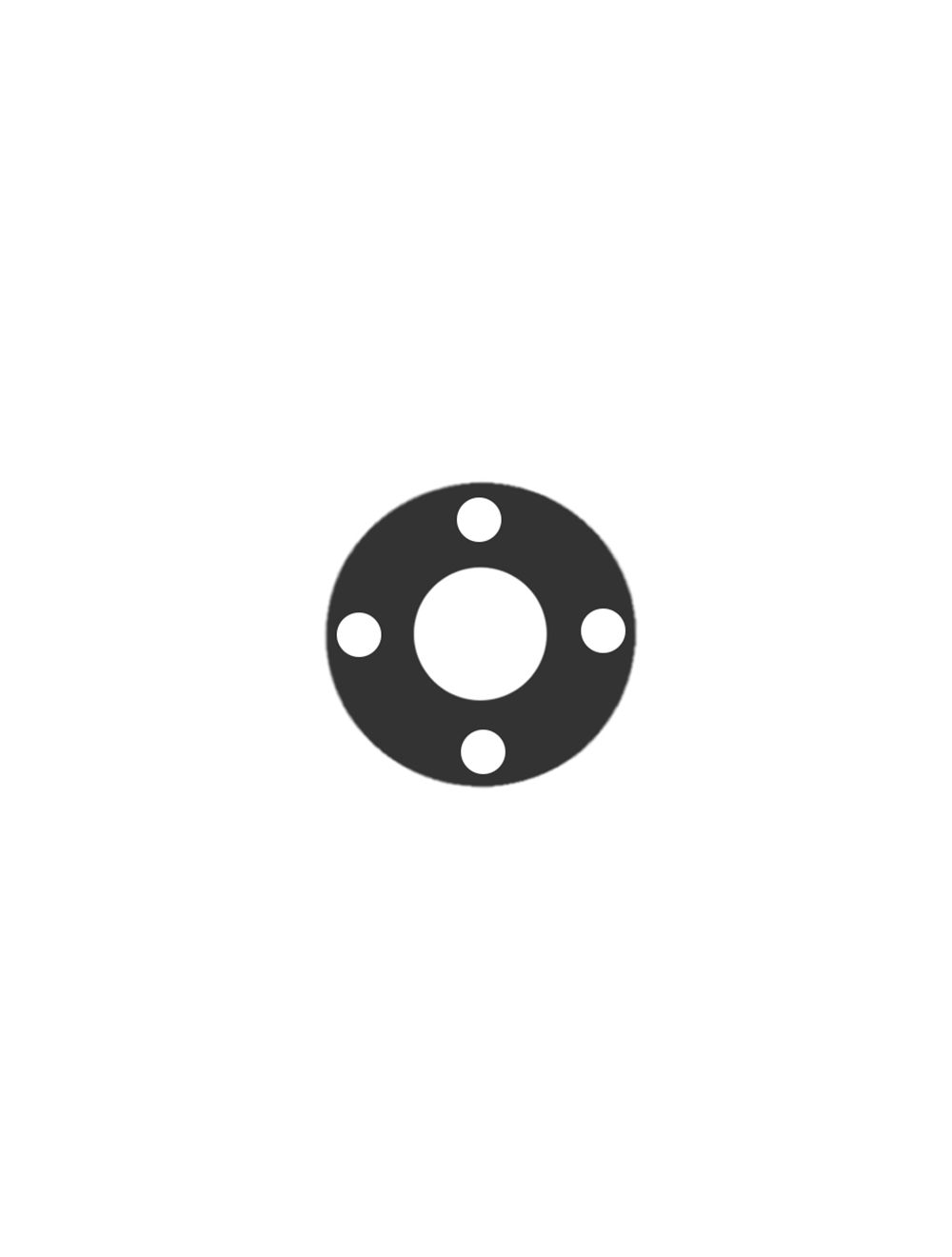

FKM 75A Full-Face Gasket

This FKM is made with 100% virgin domestic-made premium Fluoroelastomer polymer. This material exhibits resistance to a broad range of oils, fuels, lubricants and most mineral acids. It has very good resistance to many alphatic hydrocarbon fluids that act as solvents for many other rubbers.

  •  Performance
    • Min Temperature (F) -20°
    • Max Temperature (F) 450°
    • Max Pressure (PSI) 1000
  • Recommended Applications
    • Oils, Fuels
    • Mineral acids
    • Lubricants
    • Alphatic hydrocarbons
Filter results
Inner Diameter
- (132)
Pressure Rating
x clear all
Outer Diameter
- (132)
Thickness Nominal
x clear all
Grouped product items
PART NUMBER Nominal Pipe Size Pressure Rating (lbs) Flange Standard (ASME) Thickness (In.) Inner Diameter (In.) Outer Diameter (In.) Ships Within
PRICE
ADD TO CART
1/2" 150# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.500

Ships Within : 1-2 Days

See more

Starting at: $3.22
PRICE QTY
$20.96
1/2" 150# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.500

Ships Within : 1-2 Days

See more

Starting at: $1.97
PRICE QTY
$15.14
1/2" 300# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.750

Ships Within : 1-2 Days

See more

Starting at: $3.73
PRICE QTY
$22.66
1/2" 300# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.750

Ships Within : 1-2 Days

See more

Starting at: $2.16
PRICE QTY
$16.01
3/4" 150# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 3.880

Ships Within : 1-2 Days

See more

Starting at: $2.27
PRICE QTY
$16.53
3/4" 150# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 3.880

Ships Within : 1-2 Days

See more

Starting at: $3.94
PRICE QTY
$17.72
3/4" 300# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 4.620

Ships Within : 1-2 Days

See more

Starting at: $5.51
PRICE QTY
$22.17
3/4" 300# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 4.620

Ships Within : 1-2 Days

See more

Starting at: $2.93
PRICE QTY
$19.60
1" 150# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.250

Ships Within : 1-2 Days

See more

Starting at: $4.84
PRICE QTY
$19.86
1" 150# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.250

Ships Within : 1-2 Days

See more

Starting at: $2.59
PRICE QTY
$18.01
1" 300# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.880

Ships Within : 1-2 Days

See more

Starting at: $6.01
PRICE QTY
$23.92
1" 300# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.880

Ships Within : 1-2 Days

See more

Starting at: $3.33
PRICE QTY
$20.80
1.25" 150# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 4.630

Ships Within : 1-2 Days

See more

Starting at: $5.53
PRICE QTY
$16.55
1.25" 150# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 4.630

Ships Within : 1-2 Days

See more

Starting at: $3.09
PRICE QTY
$17.32
1.25" 300# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 5.250

Ships Within : 1-2 Days

See more

Starting at: $4.01
PRICE QTY
$19.54
1.25" 300# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 5.250

Ships Within : 1-2 Days

See more

Starting at: $7.06
PRICE QTY
$19.42
1.5" 150# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 5.000

Ships Within : 1-2 Days

See more

Starting at: $6.54
PRICE QTY
$18.22
1.5" 150# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 5.000

Ships Within : 1-2 Days

See more

Starting at: $3.46
PRICE QTY
$18.61
1.5" 300# 1/8" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 6.120

Ships Within : 1-2 Days

See more

Starting at: $9.04
PRICE QTY
$24.03
1.5" 300# 1/16" Thk FKM 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 6.120

Ships Within : 1-2 Days

See more

Starting at: $5.03
PRICE QTY
$23.09
