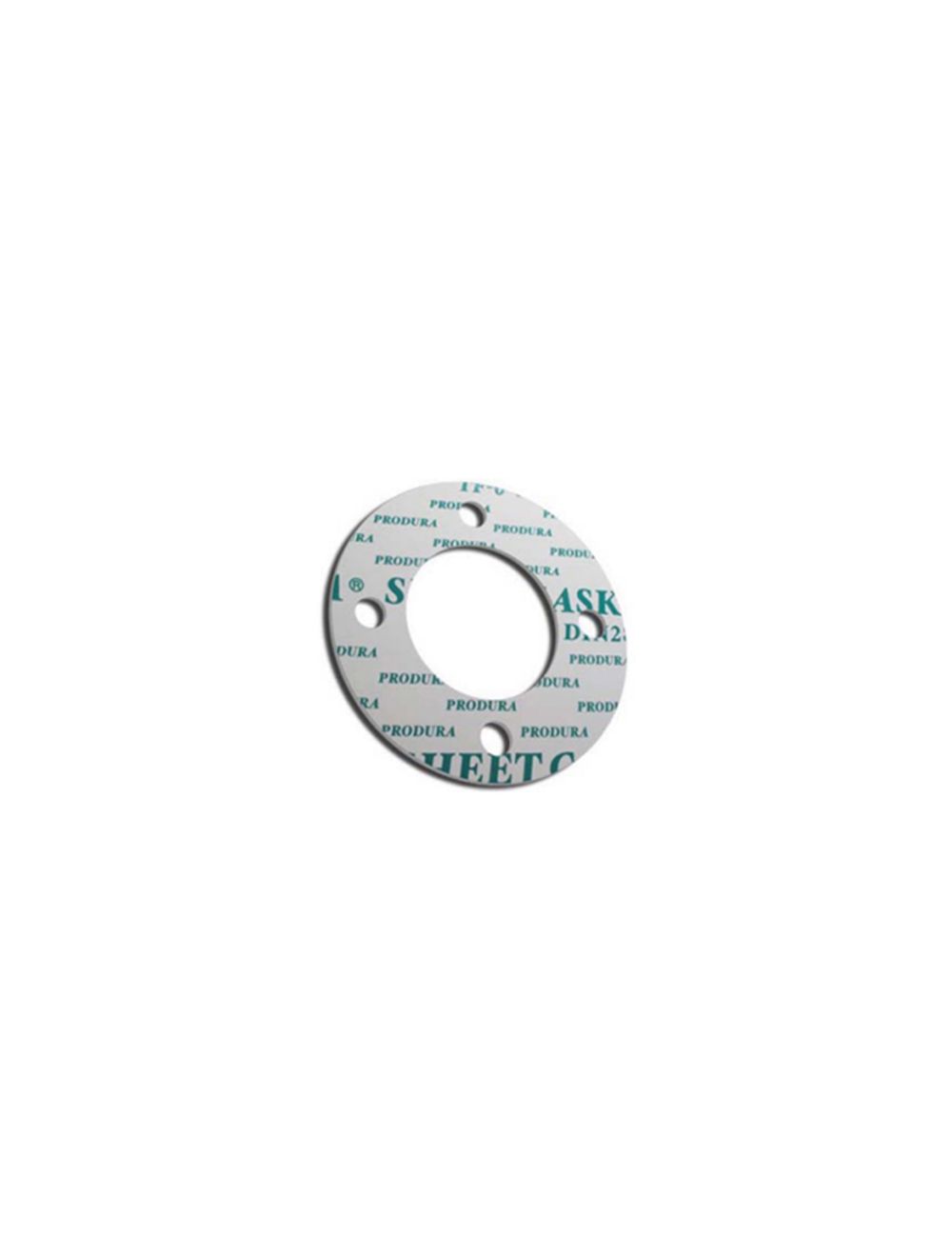

Gore Produra Full-Face Gasket

Produra® sheet gasketing is chemically inert and made from 100% expanded virgin PTFE. It is the ideal sheet for industrial gasketing users who wish to balance sealing reliability with cost. Possessing greater strength than similarly priced PTFE sheets, Produra® sheet gasketing provides better sealing reliability.

Performance

Min Temperature (F) -450°
Max Temperature (F) 600°
Max Pressure (PSI) 3000

Recommended Applications

Pipeline and apparatus flange connections made of steel

Grouped product items
PART NUMBER	Nominal Pipe Size	Pressure Rating (lbs)	Flange Standard (ASME)	Thickness (In.)	Inner Diameter (In.)	Outer Diameter (In.)	Ships Within	PRICE	ADD TO CART
1/2" 150# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1/2 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 0.840 Outer Diameter (In.) : 3.500 Ships Within : 1-2 Days See more GK-FS-BBN-F8Q9-1W84-15Y3	1/2	150	ASME B16.5	1/8	0.840	3.500	1-2 Days	$8.74 x 3 $7.95 x 7 $6.67 x 20	Starting at: $6.67	PRICE QTY $26.22
1/2" 150# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1/2 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 0.840 Outer Diameter (In.) : 3.500 Ships Within : 1-2 Days See more GK-FS-BBN-F8Q9-1W84-PT93	1/2	150	ASME B16.5	1/16	0.840	3.500	1-2 Days	$6.46 x 3 $5.87 x 10 $4.42 x 30	Starting at: $4.42	PRICE QTY $19.39
1/2" 300# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1/2 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 0.840 Outer Diameter (In.) : 3.750 Ships Within : 1-2 Days See more GK-FS-BBN-F8Q9-TZ0E-PT93	1/2	300	ASME B16.5	1/16	0.840	3.750	1-2 Days	$7.06 x 3 $6.42 x 10 $5.22 x 20	Starting at: $5.22	PRICE QTY $21.18
1/2" 300# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1/2 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 0.840 Outer Diameter (In.) : 3.750 Ships Within : 1-2 Days See more GK-FS-BBN-F8Q9-TZ0E-15Y3	1/2	300	ASME B16.5	1/8	0.840	3.750	1-2 Days	$9.66 x 3 $8.79 x 7 $7.76 x 15	Starting at: $7.76	PRICE QTY $28.99
3/4" 150# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 3/4 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 1.060 Outer Diameter (In.) : 3.880 Ships Within : 1-2 Days See more GK-FS-BBN-G56P-ML14-15Y3	3/4	150	ASME B16.5	1/8	1.060	3.880	1-2 Days	$10.18 x 3 $9.25 x 7 $8.20 x 15	Starting at: $8.20	PRICE QTY $30.54
3/4" 150# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 3/4 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 1.060 Outer Diameter (In.) : 3.880 Ships Within : 1-2 Days See more GK-FS-BBN-G56P-ML14-PT93	3/4	150	ASME B16.5	1/16	1.060	3.880	1-2 Days	$7.40 x 3 $6.73 x 7 $5.52 x 20	Starting at: $5.52	PRICE QTY $22.20
3/4" 300# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 3/4 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 1.060 Outer Diameter (In.) : 4.620 Ships Within : 1-2 Days See more GK-FS-BBN-G56P-960N-PT93	3/4	300	ASME B16.5	1/16	1.060	4.620	1-2 Days	$9.48 x 3 $8.62 x 7 $7.31 x 20	Starting at: $7.31	PRICE QTY $28.45
3/4" 300# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 3/4 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 1.060 Outer Diameter (In.) : 4.620 Ships Within : 1-2 Days See more GK-FS-BBN-G56P-960N-15Y3	3/4	300	ASME B16.5	1/8	1.060	4.620	1-2 Days	$13.39 x 2 $12.17 x 5 $10.97 x 15	Starting at: $10.97	PRICE QTY $26.78
1" 150# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 1.310 Outer Diameter (In.) : 4.250 Ships Within : 1-2 Days See more GK-FS-BBN-E4XU-9696-PT93	1	150	ASME B16.5	1/16	1.310	4.250	1-2 Days	$8.40 x 3 $7.64 x 7 $6.67 x 15	Starting at: $6.67	PRICE QTY $25.20
1" 150# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 1.310 Outer Diameter (In.) : 4.250 Ships Within : 1-2 Days See more GK-FS-BBN-E4XU-9696-15Y3	1	150	ASME B16.5	1/8	1.310	4.250	1-2 Days	$11.72 x 2 $10.65 x 5 $9.53 x 15	Starting at: $9.53	PRICE QTY $23.44
1" 300# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 1.310 Outer Diameter (In.) : 4.880 Ships Within : 1-2 Days See more GK-FS-BBN-E4XU-1VVZ-15Y3	1	300	ASME B16.5	1/8	1.310	4.880	1-2 Days	$19.31 x 2 $15.13 x 5 $12.63 x 10	Starting at: $12.63	PRICE QTY $38.63
1" 300# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 1.310 Outer Diameter (In.) : 4.880 Ships Within : 1-2 Days See more GK-FS-BBN-E4XU-1VVZ-PT93	1	300	ASME B16.5	1/16	1.310	4.880	1-2 Days	$10.30 x 2 $9.37 x 7 $8.31 x 15	Starting at: $8.31	PRICE QTY $20.61
1.25" 150# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1-1/4 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 1.660 Outer Diameter (In.) : 4.630 Ships Within : 1-2 Days See more GK-FS-BBN-8WTN-5WQA-PT93	1-1/4	150	ASME B16.5	1/16	1.660	4.630	1-2 Days	$10.38 x 2 $9.43 x 5 $7.63 x 15	Starting at: $7.63	PRICE QTY $20.76
1.25" 150# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1-1/4 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 1.660 Outer Diameter (In.) : 4.630 Ships Within : 1-2 Days See more GK-FS-BBN-8WTN-5WQA-15Y3	1-1/4	150	ASME B16.5	1/8	1.660	4.630	1-2 Days	$14.30 x 2 $13.00 x 4 $11.59 x 10	Starting at: $11.59	PRICE QTY $28.60
1.25" 300# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1-1/4 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 1.660 Outer Diameter (In.) : 5.250 Ships Within : 1-2 Days See more GK-FS-BBN-8WTN-7KF0-PT93	1-1/4	300	ASME B16.5	1/16	1.660	5.250	1-2 Days	$12.40 x 2 $11.27 x 5 $9.37 x 15	Starting at: $9.37	PRICE QTY $24.79
1.25" 300# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1-1/4 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 1.660 Outer Diameter (In.) : 5.250 Ships Within : 1-2 Days See more GK-FS-BBN-8WTN-7KF0-15Y3	1-1/4	300	ASME B16.5	1/8	1.660	5.250	1-2 Days	$17.41 x 2 $15.82 x 4 $14.27 x 10	Starting at: $14.27	PRICE QTY $34.81
1.5" 150# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1-1/2 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 1.910 Outer Diameter (In.) : 5.000 Ships Within : 1-2 Days See more GK-FS-BBN-3TR9-2G91-15Y3	1-1/2	150	ASME B16.5	1/8	1.910	5.000	1-2 Days	$19.92 x 2 $16.59 x 4 $13.88 x 7	Starting at: $13.88	PRICE QTY $39.83
1.5" 150# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1-1/2 Pressure Rating (lbs) : 150 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 1.910 Outer Diameter (In.) : 5.000 Ships Within : 1-2 Days See more GK-FS-BBN-3TR9-2G91-PT93	1-1/2	150	ASME B16.5	1/16	1.910	5.000	1-2 Days	$11.55 x 2 $10.50 x 4 $9.22 x 10	Starting at: $9.22	PRICE QTY $23.10
1.5" 300# 1/16" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1-1/2 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/16 Inner Diameter (In.) : 1.910 Outer Diameter (In.) : 6.120 Ships Within : 1-2 Days See more GK-FS-BBN-3TR9-ZF39-PT93	1-1/2	300	ASME B16.5	1/16	1.910	6.120	1-2 Days	$15.64 x 2 $14.22 x 4 $12.74 x 10	Starting at: $12.74	PRICE QTY $31.28
1.5" 300# 1/8" Thk Gore Produra ASME B16.5 Full Face Gasket	Nominal Pipe Size : 1-1/2 Pressure Rating (lbs) : 300 Flange Standard (ASME) : ASME B16.5 Thickness (In.) : 1/8 Inner Diameter (In.) : 1.910 Outer Diameter (In.) : 6.120 Ships Within : 1-2 Days See more GK-FS-BBN-3TR9-ZF39-15Y3	1-1/2	300	ASME B16.5	1/8	1.910	6.120	1-2 Days	$29.54 x 1 $23.83 x 3 $19.31 x 7	Starting at: $19.31	PRICE QTY $29.54
