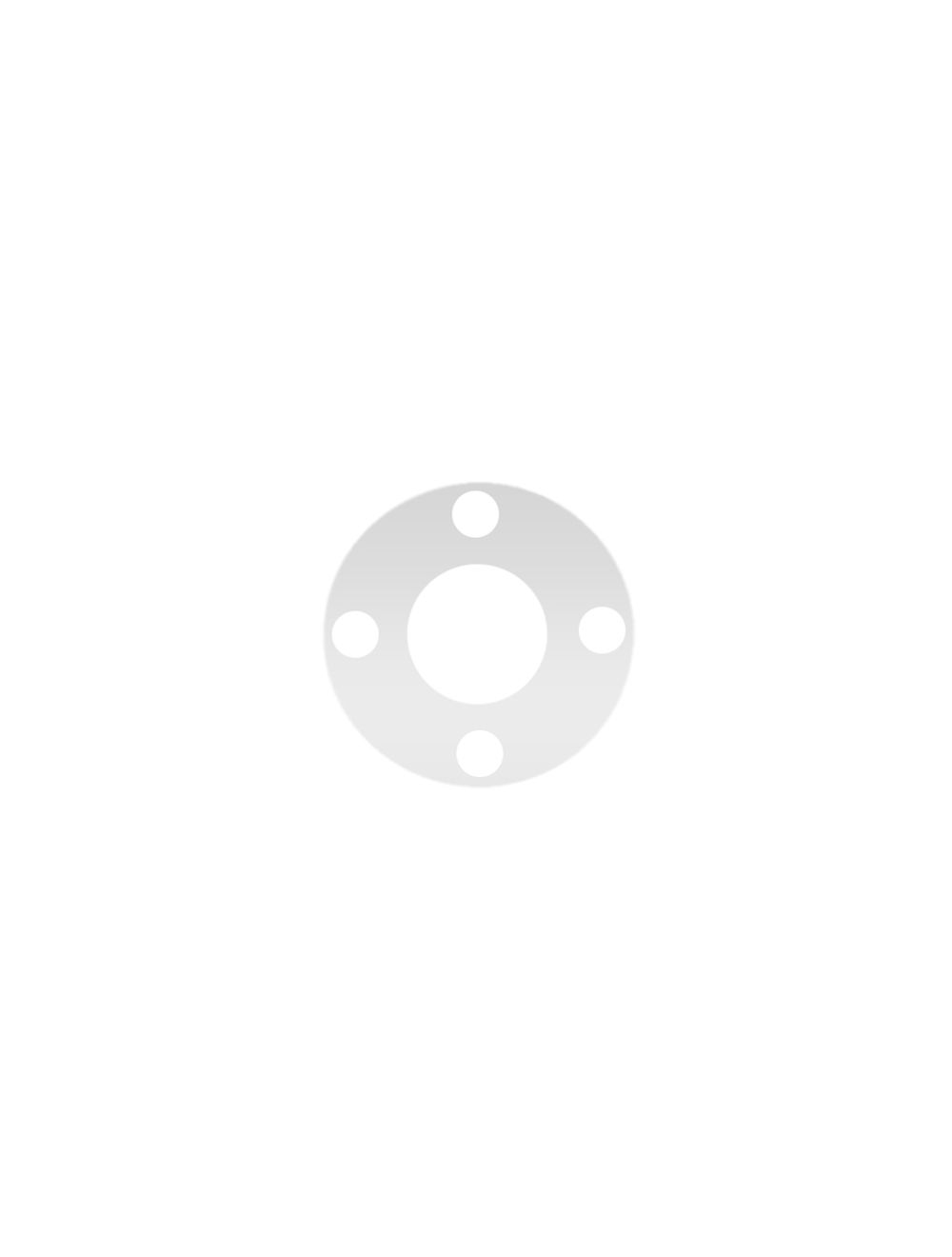

NBR 65A FDA Full-Face Gasket

Nitrile rubber (NBR, Buna-N) is a very common material for gaskets. This material is specially formulated for its whiteness and is used extensively in food and pharmaceutical environments. All materials are made with FDA approved ingredients per 21CFR 177.2600. White in color.

  •  Performance
    • Min Temperature (F) -30°
    • Max Temperature (F) 220°
    • Max Pressure (PSI) 1000
  • Recommended Applications
    • Specially formulated for its whiteness and is used extensively in food and pharmaceutical environments
    • Oily food products
    • Greasy food products
    • Pharmaceutical
Filter results
Inner Diameter
- (132)
Pressure Rating
x clear all
Outer Diameter
- (132)
Thickness Nominal
x clear all
Grouped product items
PART NUMBER Nominal Pipe Size Pressure Rating (lbs) Flange Standard (ASME) Thickness (In.) Inner Diameter (In.) Outer Diameter (In.) Ships Within
PRICE
ADD TO CART
1/2" 150# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.500

Ships Within : 1-2 Days

See more

Starting at: $1.88
PRICE QTY
$14.73
1/2" 150# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.500

Ships Within : 1-2 Days

See more

Starting at: $1.37
PRICE QTY
$15.42
1/2" 300# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.750

Ships Within : 1-2 Days

See more

Starting at: $2.06
PRICE QTY
$15.54
1/2" 300# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.750

Ships Within : 1-2 Days

See more

Starting at: $1.47
PRICE QTY
$16.00
3/4" 150# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 3.880

Ships Within : 1-2 Days

See more

Starting at: $1.53
PRICE QTY
$16.38
3/4" 150# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 3.880

Ships Within : 1-2 Days

See more

Starting at: $2.16
PRICE QTY
$16.03
3/4" 300# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 4.620

Ships Within : 1-2 Days

See more

Starting at: $2.78
PRICE QTY
$18.89
3/4" 300# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 4.620

Ships Within : 1-2 Days

See more

Starting at: $1.89
PRICE QTY
$14.78
1" 150# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.250

Ships Within : 1-2 Days

See more

Starting at: $2.46
PRICE QTY
$17.40
1" 150# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.250

Ships Within : 1-2 Days

See more

Starting at: $1.71
PRICE QTY
$13.91
1" 300# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.880

Ships Within : 1-2 Days

See more

Starting at: $3.02
PRICE QTY
$20.02
1" 300# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.880

Ships Within : 1-2 Days

See more

Starting at: $2.04
PRICE QTY
$15.45
1.25" 150# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 4.630

Ships Within : 1-2 Days

See more

Starting at: $2.94
PRICE QTY
$16.79
1.25" 150# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 4.630

Ships Within : 1-2 Days

See more

Starting at: $1.90
PRICE QTY
$13.70
1.25" 300# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 5.250

Ships Within : 1-2 Days

See more

Starting at: $2.25
PRICE QTY
$14.91
1.25" 300# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 5.250

Ships Within : 1-2 Days

See more

Starting at: $3.53
PRICE QTY
$18.86
1.5" 150# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 5.000

Ships Within : 1-2 Days

See more

Starting at: $3.28
PRICE QTY
$17.99
1.5" 150# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 5.000

Ships Within : 1-2 Days

See more

Starting at: $2.11
PRICE QTY
$14.40
1.5" 300# 1/8" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 6.120

Ships Within : 1-2 Days

See more

Starting at: $4.77
PRICE QTY
$22.17
1.5" 300# 1/16" Thk NBR 65A FDA ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 6.120

Ships Within : 1-2 Days

See more

Starting at: $2.81
PRICE QTY
$16.84
