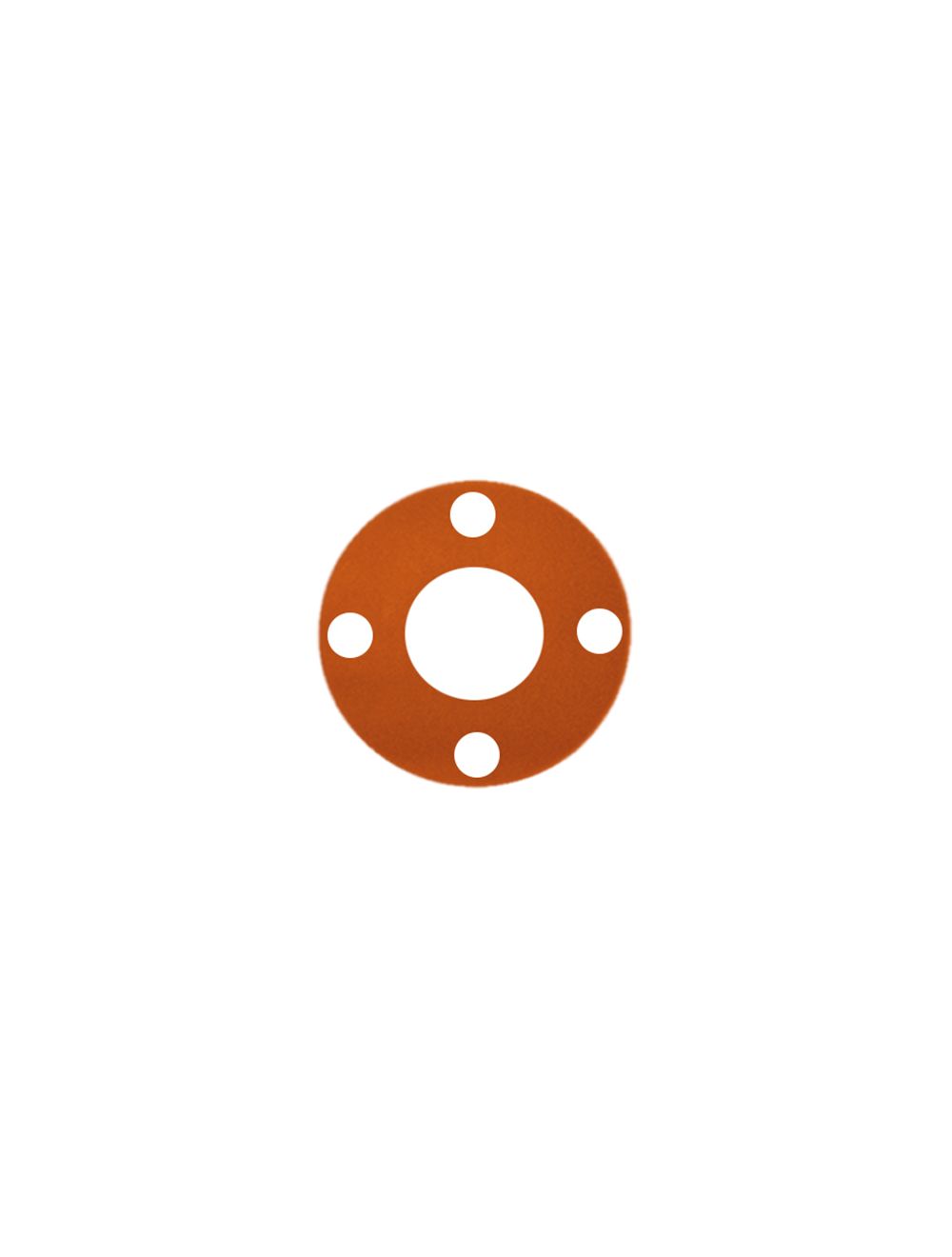

Red Rubber SBR 75A Full-Face Gasket

Styrene-butadiene or styrene-butadiene rubber (SBR) describe families of synthetic rubbers derived from styrene and butadiene. These materials have good abrasion resistance and good aging stability when protected by additives. This Red Rubber SBR is an economical gasket for use in low pressure applications with no oil resistant requirements.

  •  Performance
    • Min Temperature (F) -20°
    • Max Temperature (F) 170°
    • Max Pressure (PSI) 400
  • Recommended Applications
    • Low pressure
    • ASTM D 1330 GRADE 2
    • ASTM D 2000 1AA 704 Z1 (Z1=75+/-5 DUROMETER)
    • Made in USA
Filter results
Inner Diameter
- (132)
Pressure Rating
x clear all
Outer Diameter
- (132)
Thickness Nominal
x clear all
Grouped product items
PART NUMBER Nominal Pipe Size Pressure Rating (lbs) Flange Standard (ASME) Thickness (In.) Inner Diameter (In.) Outer Diameter (In.) Ships Within
PRICE
ADD TO CART
1/2" 150# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.500

Ships Within : 1-2 Days

See more

Starting at: $1.14
PRICE QTY
$14.09
1/2" 150# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.500

Ships Within : 1-2 Days

See more

Starting at: $0.96
PRICE QTY
$13.09
1/2" 300# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.750

Ships Within : 1-2 Days

See more

Starting at: $1.01
PRICE QTY
$13.34
1/2" 300# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 3.750

Ships Within : 1-2 Days

See more

Starting at: $1.20
PRICE QTY
$14.48
3/4" 150# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 3.880

Ships Within : 1-2 Days

See more

Starting at: $1.25
PRICE QTY
$14.75
3/4" 150# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 3.880

Ships Within : 1-2 Days

See more

Starting at: $1.04
PRICE QTY
$13.53
3/4" 300# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 4.620

Ships Within : 1-2 Days

See more

Starting at: $1.50
PRICE QTY
$16.20
3/4" 300# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 4.620

Ships Within : 1-2 Days

See more

Starting at: $1.21
PRICE QTY
$14.49
1" 150# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.250

Ships Within : 1-2 Days

See more

Starting at: $1.37
PRICE QTY
$15.46
1" 150# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.250

Ships Within : 1-2 Days

See more

Starting at: $1.12
PRICE QTY
$14.00
1" 300# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.880

Ships Within : 1-2 Days

See more

Starting at: $1.60
PRICE QTY
$13.42
1" 300# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 4.880

Ships Within : 1-2 Days

See more

Starting at: $1.27
PRICE QTY
$14.88
1.25" 150# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 4.630

Ships Within : 1-2 Days

See more

Starting at: $1.21
PRICE QTY
$15.06
1.25" 150# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 4.630

Ships Within : 1-2 Days

See more

Starting at: $1.51
PRICE QTY
$12.32
1.25" 300# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 5.250

Ships Within : 1-2 Days

See more

Starting at: $1.75
PRICE QTY
$13.15
1.25" 300# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 5.250

Ships Within : 1-2 Days

See more

Starting at: $1.37
PRICE QTY
$11.84
1.5" 150# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 5.000

Ships Within : 1-2 Days

See more

Starting at: $1.65
PRICE QTY
$12.80
1.5" 150# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 5.000

Ships Within : 1-2 Days

See more

Starting at: $1.30
PRICE QTY
$11.61
1.5" 300# 1/16" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 6.120

Ships Within : 1-2 Days

See more

Starting at: $1.62
PRICE QTY
$12.69
1.5" 300# 1/8" Thk Red Rubber SBR 75A ASME B16.5 Full Face Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 6.120

Ships Within : 1-2 Days

See more

Starting at: $2.13
PRICE QTY
$14.47
