Garlock Stress Saver Style XP Gasket

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

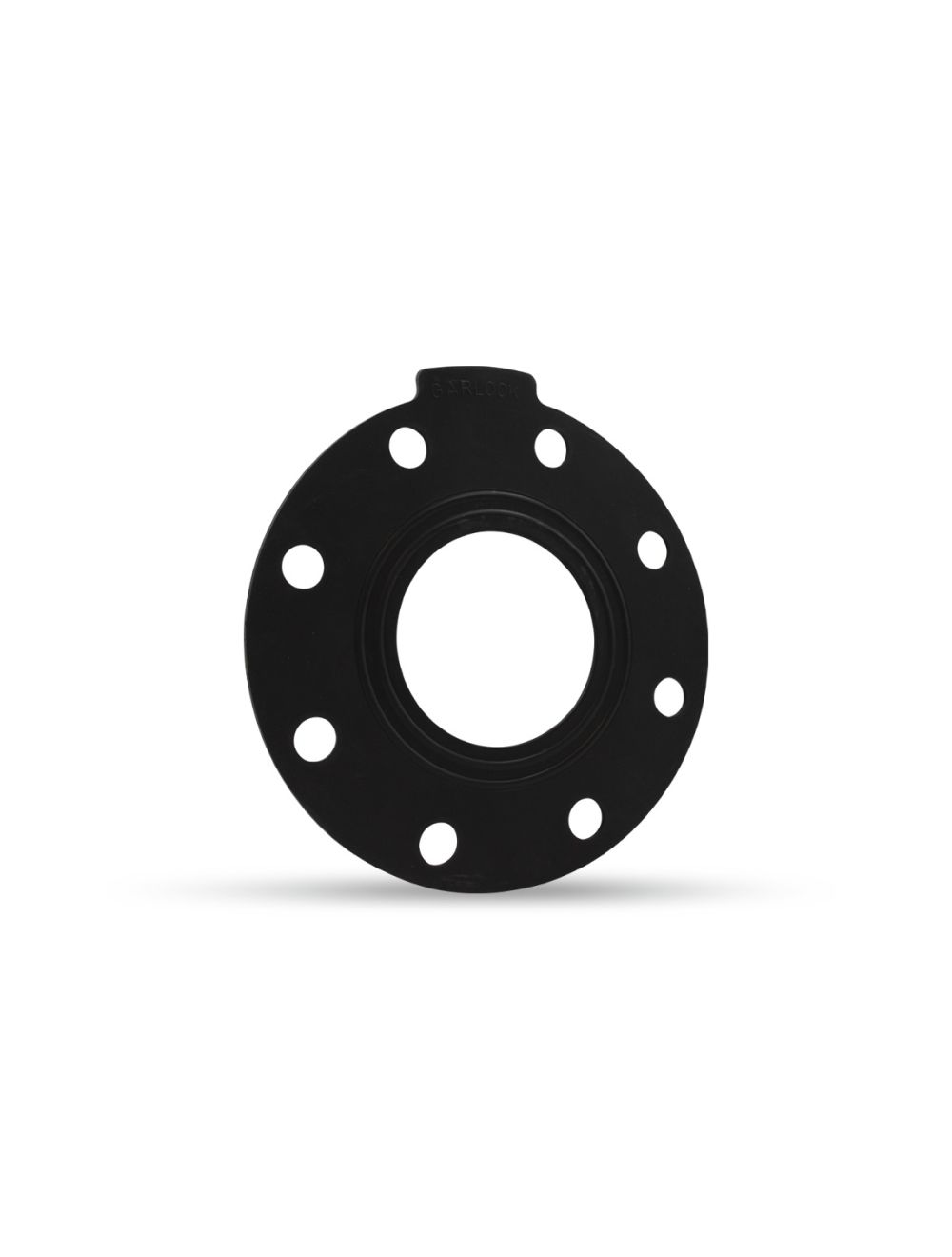

The Garlock STRESS SAVER® XP a blend of high performance fluoroelastomers, molded with the same rib configuration as the rest of the Garlock STRESS SAVER family of products. In addition, the Garlock STRESS SAVER XP is National Sanitation Foundation (NSF) Standard 61/372-certified for use in drinking water systems and carries the Lubrizol FBC™ System Compatible certification making it suitable for use in CORZAN (CPVC) Piping.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Features

Raised, molded-in sealing rings seal with 75% less surface area for high performance in non-metallic flanges (Flat-face flanges strongly recommended)
Lower seating stress than expanded or specialty PTFE gaskets; ideal for nonmetallic flanges
High-performance fluoroelastomer resists a variety of chemicals
Outperforms PTFE envelope gaskets

Won't fail due to filler attack, unlike conventional PTFE envelope gaskets
Requires lower seating stress to seal in flat face flanges
Eliminates envelope fold-over during installation
Performs well in steam

Material Datasheets

Garlock Stress Saver XP Spec Sheet

Sort By

Grouped product items
PART NUMBER	Manufacturer Part #	Nominal Pipe Size	Pressure Rating (lbs)	Flange Standard (ASME)	Thickness (In.)	Inner Diameter (In.)	Outer Diameter (In.)	Ships Within	PRICE	ADD TO CART
1/2" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 36809-0001 Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.719 Outer Diameter (In.) 3.500 Ships Within 5 Days See more GK-SS-A40-F8Q9-1W84-8PGR	36809-0001	1/2	150	ASME B16.5	1/8	0.719	3.500	5 Days	$53.05	Starting at: $53.05	PRICE QTY $53.05
3/4" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 36809-0002 Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.875 Outer Diameter (In.) 3.875 Ships Within 5 Days See more GK-SS-A40-G56P-ML14-8PGR	36809-0002	3/4	150	ASME B16.5	1/8	0.875	3.875	5 Days	$56.53	Starting at: $56.53	PRICE QTY $56.53
1-1/4" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 36809-0004 Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.500 Outer Diameter (In.) 4.625 Ships Within 5 Days See more GK-SS-A40-8WTN-YZ57-8PGR	36809-0004	1-1/4	150	ASME B16.5	1/8	1.500	4.625	5 Days	$63.18	Starting at: $63.18	PRICE QTY $63.18
1-1/2" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 36809-0005 Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.688 Outer Diameter (In.) 5.000 Ships Within 5 Days See more GK-SS-A40-3TR9-2G91-8PGR	36809-0005	1-1/2	150	ASME B16.5	1/8	1.688	5.000	5 Days	$68.50	Starting at: $68.50	PRICE QTY $68.50
2" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 36809-0006 Nominal Pipe Size 2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 2.125 Outer Diameter (In.) 6.000 Ships Within 5 Days See more GK-SS-A40-8EE0-Z5Y9-8PGR	36809-0006	2	150	ASME B16.5	1/8	2.125	6.000	5 Days	$89.33	Starting at: $89.33	PRICE QTY $89.33
2-1/2" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 36809-0007 Nominal Pipe Size 2-1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 2.719 Outer Diameter (In.) 7.000 Ships Within 5 Days See more GK-SS-A40-A01P-X834-15Y3	36809-0007	2-1/2	150	ASME B16.5	1/8	2.719	7.000	5 Days	$100.03	Starting at: $100.03	PRICE QTY $100.03
3" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 36809-0008 Nominal Pipe Size 3 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 3.156 Outer Diameter (In.) 7.500 Ships Within 5 Days See more GK-SS-A40-F43P-9Y18-15Y3	36809-0008	3	150	ASME B16.5	1/8	3.156	7.500	5 Days	$119.02	Starting at: $119.02	PRICE QTY $119.02
3-1/2" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7195 Nominal Pipe Size 3-1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 3.500 Outer Diameter (In.) 8.500 Ships Within 5 Days See more GK-SS-A40-MB2M-M6H6-15Y3	37809-7195	3-1/2	150	ASME B16.5	1/8	3.500	8.500	5 Days	$121.60	Starting at: $121.60	PRICE QTY $121.60
4" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7104 Nominal Pipe Size 4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 4.000 Outer Diameter (In.) 9.000 Ships Within 5 Days See more GK-SS-A40-US9Z-M6H6-15Y3	37809-7104	4	150	ASME B16.5	1/8	4.000	9.000	5 Days	$155.32	Starting at: $155.32	PRICE QTY $155.32
5" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7105 Nominal Pipe Size 5 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 5.000 Outer Diameter (In.) 10.000 Ships Within 5 Days See more GK-SS-A40-67AK-F4P7-15Y3	37809-7105	5	150	ASME B16.5	1/8	5.000	10.000	5 Days	$155.83	Starting at: $155.83	PRICE QTY $155.83
6" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7106 Nominal Pipe Size 6 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 6.000 Outer Diameter (In.) 11.000 Ships Within 5 Days See more GK-SS-A40-8P63-50DP-15Y3	37809-7106	6	150	ASME B16.5	1/8	6.000	11.000	5 Days	$199.91	Starting at: $199.91	PRICE QTY $199.91
8" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7108 Nominal Pipe Size 8 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 8.000 Outer Diameter (In.) 13.500 Ships Within 5 Days See more GK-SS-A40-1H07-Z20G-15Y3	37809-7108	8	150	ASME B16.5	1/8	8.000	13.500	5 Days	$278.74	Starting at: $278.74	PRICE QTY $278.74
10" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7110 Nominal Pipe Size 10 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 10.000 Outer Diameter (In.) 16.000 Ships Within 5 Days See more GK-SS-A40-VVD1-JR16-15Y3	37809-7110	10	150	ASME B16.5	1/8	10.000	16.000	5 Days	$330.18	Starting at: $330.18	PRICE QTY $330.18
12" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7112 Nominal Pipe Size 12 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 12.000 Outer Diameter (In.) 19.000 Ships Within 5 Days See more GK-SS-A40-S17P-A90R-15Y3	37809-7112	12	150	ASME B16.5	1/8	12.000	19.000	5 Days	$691.39	Starting at: $691.39	PRICE QTY $691.39
14" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7114 Nominal Pipe Size 14 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 14.000 Outer Diameter (In.) 21.000 Ships Within 5 Days See more GK-SS-A40-J6Y7-F43P-15Y3	37809-7114	14	150	ASME B16.5	1/8	14.000	21.000	5 Days	$780.34	Starting at: $780.34	PRICE QTY $780.34
16" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7116 Nominal Pipe Size 16 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 16.000 Outer Diameter (In.) 23.500 Ships Within 5 Days See more GK-SS-A40-975H-W472-15Y3	37809-7116	16	150	ASME B16.5	1/8	16.000	23.500	5 Days	$814.64	Starting at: $814.64	PRICE QTY $814.64
18" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7118 Nominal Pipe Size 18 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 18.000 Outer Diameter (In.) 25.000 Ships Within 5 Days See more GK-SS-A40-2411-F43P-15Y3	37809-7118	18	150	ASME B16.5	1/8	18.000	25.000	5 Days	$881.83	Starting at: $881.83	PRICE QTY $881.83
20" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7120 Nominal Pipe Size 20 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 20.000 Outer Diameter (In.) 27.500 Ships Within 5 Days See more GK-SS-A40-V2XN-W472-15Y3	37809-7120	20	150	ASME B16.5	1/8	20.000	27.500	5 Days	$1,054.64	Starting at: $1,054.64	PRICE QTY $1,054.64
24" 150# 1/8" Thk Style XP ASME B16.5 Garlock Stress Saver Gasket	Manufacturer Part # 37809-7124 Nominal Pipe Size 24 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 24.000 Outer Diameter (In.) 32.000 Ships Within 5 Days See more GK-SS-A40-6ARY-MB2M-15Y3	37809-7124	24	150	ASME B16.5	1/8	24.000	32.000	5 Days	$1,170.38	Starting at: $1,170.38	PRICE QTY $1,170.38
