Gore Series 500 Gasket Tape

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

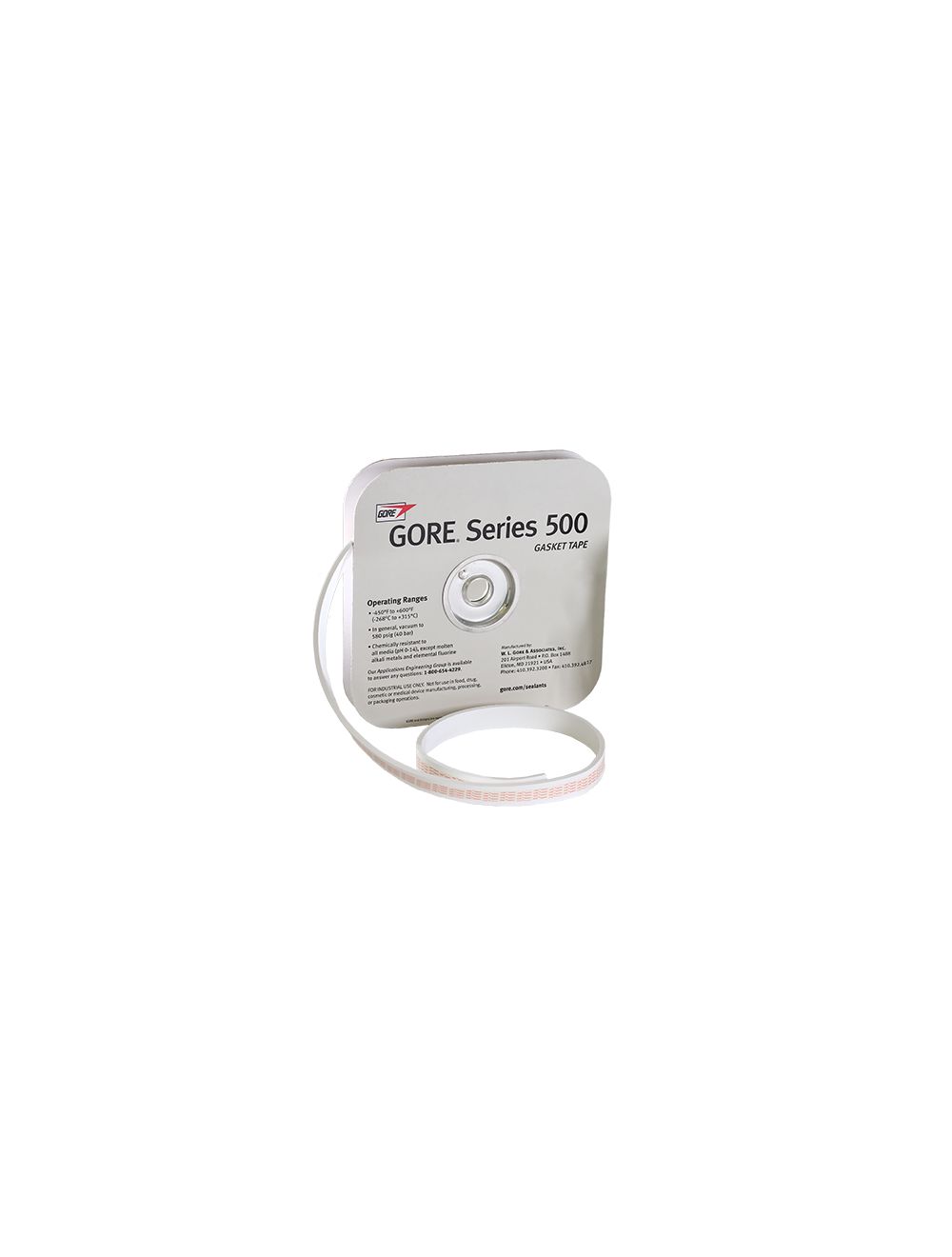

A spool of GORE® Gasket Tape Series 500 provides an immediate, cost-effective solution to sealing challenges that demand reliable performance and extended durability. This advanced product, with its industry-leading creep resistance, is designed to maximize the operational reliability of large steel-flanged applications, especially those with thermal cycling.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Min Temperature (F) -452°
Max Temperature (F) 600°
Max Pressure (PSI) 870

Features and Benefits

Excels at resisting cold flow and creep
Highly comformable, compensating for considerable flange irregularities, resulting in both a very tight and long lasting seal
Broad chemical resistance profile: Chemical resistance to all media pH 0–14, except molten alkali metals and elemental fluorine
Eliminates the lag time, costs and complexities associated with engineering, specifying, procuring, shipping, storing and installing traditional one-piece prefabricated gaskets

Material Datasheets

Gore Series 500

Typical Applications

Large/non-standard steel equipment flanges, such as vessel and tank process flanges, manways, large diameter piping, and heat exchangers
Processes using highly-aggressive media, such as chemical processing, pulp & paper, mining & minerals, semicon, and power gen

Sort By

Grouped product items
PART NUMBER	Width (In.)	Thickness (In.)	Length (Ft.)	Manufacturer Part #	Material	Color	Ships Within	PRICE	ADD TO CART
Gore Series 500 Gasket Tape 3/8" Width, 1/8" Thk, 25 Ft Length, S503-10076WA Mfg Part #	Width (In.) 0.375 Thickness (In.) 0.125 Length (Ft.) 25.000 Manufacturer Part # S503-10076WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-A52U-1H03	0.375	0.125	25.000	S503-10076WA	ePTFE	White	10 Days	$934.74	Starting at: $934.74	PRICE QTY $934.74
Gore Series 500 Gasket Tape 1/2" Width, 1/8" Thk, 25 Ft Length, S503-15076WA Mfg Part #	Width (In.) 0.500 Thickness (In.) 0.125 Length (Ft.) 25.000 Manufacturer Part # S503-15076WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-8D8H-1H03	0.500	0.125	25.000	S503-15076WA	ePTFE	White	10 Days	$979.92	Starting at: $979.92	PRICE QTY $979.92
Gore Series 500 Gasket Tape 3/4" Width, 1/8" Thk, 25 Ft Length, S503-20076WA Mfg Part #	Width (In.) 0.750 Thickness (In.) 0.125 Length (Ft.) 25.000 Manufacturer Part # S503-20076WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-170A-1H03	0.750	0.125	25.000	S503-20076WA	ePTFE	White	10 Days	$1,026.82	Starting at: $1,026.82	PRICE QTY $1,026.82
Gore Series 500 Gasket Tape 1" Width, 1/8" Thk, 25 Ft Length, S503-25076WA Mfg Part #	Width (In.) 1.000 Thickness (In.) 0.125 Length (Ft.) 25.000 Manufacturer Part # S503-25076WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-3036-1H03	1.000	0.125	25.000	S503-25076WA	ePTFE	White	10 Days	$1,078.96	Starting at: $1,078.96	PRICE QTY $1,078.96
Gore Series 500 Gasket Tape 1.5" Width, 1/8" Thk, 25 Ft Length, S503-40076WA Mfg Part #	Width (In.) 1.500 Thickness (In.) 0.125 Length (Ft.) 25.000 Manufacturer Part # S503-40076WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-UBWN-1H03	1.500	0.125	25.000	S503-40076WA	ePTFE	White	10 Days	$1,242.26	Starting at: $1,242.26	PRICE QTY $1,242.26
Gore Series 500 Gasket Tape 2" Width, 1/8" Thk, 25 Ft Length, S503-50076WA Mfg Part #	Width (In.) 2.000 Thickness (In.) 0.125 Length (Ft.) 25.000 Manufacturer Part # S503-50076WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-9Y18-1H03	2.000	0.125	25.000	S503-50076WA	ePTFE	White	10 Days	$1,363.90	Starting at: $1,363.90	PRICE QTY $1,363.90
Gore Series 500 Gasket Tape 3/8" Width, 1/8" Thk, 50 Ft Length, S503-10153WA Mfg Part #	Width (In.) 0.375 Thickness (In.) 0.125 Length (Ft.) 50.000 Manufacturer Part # S503-10153WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-A52U-36SR	0.375	0.125	50.000	S503-10153WA	ePTFE	White	10 Days	$1,867.76	Starting at: $1,867.76	PRICE QTY $1,867.76
Gore Series 500 Gasket Tape 1/2" Width, 1/8" Thk, 50 Ft Length, S503-15153WA Mfg Part #	Width (In.) 0.500 Thickness (In.) 0.125 Length (Ft.) 50.000 Manufacturer Part # S503-15153WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-8D8H-36SR	0.500	0.125	50.000	S503-15153WA	ePTFE	White	10 Days	$1,961.60	Starting at: $1,961.60	PRICE QTY $1,961.60
Gore Series 500 Gasket Tape 3/4" Width, 1/8" Thk, 50 Ft Length, S503-20153WA Mfg Part #	Width (In.) 0.750 Thickness (In.) 0.125 Length (Ft.) 50.000 Manufacturer Part # S503-20153WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-170A-36SR	0.750	0.125	50.000	S503-20153WA	ePTFE	White	10 Days	$2,053.68	Starting at: $2,053.68	PRICE QTY $2,053.68
Gore Series 500 Gasket Tape 1" Width, 1/8" Thk, 50 Ft Length, S503-25153WA Mfg Part #	Width (In.) 1.000 Thickness (In.) 0.125 Length (Ft.) 50.000 Manufacturer Part # S503-25153WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-3036-36SR	1.000	0.125	50.000	S503-25153WA	ePTFE	White	10 Days	$2,157.92	Starting at: $2,157.92	PRICE QTY $2,157.92
Gore Series 500 Gasket Tape 1.5" Width, 1/8" Thk, 50 Ft Length, S503-40153WA Mfg Part #	Width (In.) 1.500 Thickness (In.) 0.125 Length (Ft.) 50.000 Manufacturer Part # S503-40153WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-UBWN-36SR	1.500	0.125	50.000	S503-40153WA	ePTFE	White	10 Days	$2,484.56	Starting at: $2,484.56	PRICE QTY $2,484.56
Gore Series 500 Gasket Tape 2" Width, 1/8" Thk, 50 Ft Length, S503-50153WA Mfg Part #	Width (In.) 2.000 Thickness (In.) 0.125 Length (Ft.) 50.000 Manufacturer Part # S503-50153WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-9Y18-36SR	2.000	0.125	50.000	S503-50153WA	ePTFE	White	10 Days	$2,727.82	Starting at: $2,727.82	PRICE QTY $2,727.82
Gore Series 500 Gasket Tape 3/8" Width, 1/8" Thk, 100 Ft Length, S503-10305WA Mfg Part #	Width (In.) 0.375 Thickness (In.) 0.125 Length (Ft.) 100.000 Manufacturer Part # S503-10305WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-A52U-J890	0.375	0.125	100.000	S503-10305WA	ePTFE	White	10 Days	$3,737.28	Starting at: $3,737.28	PRICE QTY $3,737.28
Gore Series 500 Gasket Tape 1/2" Width, 1/8" Thk, 100 Ft Length, S503-15305WA Mfg Part #	Width (In.) 0.500 Thickness (In.) 0.125 Length (Ft.) 100.000 Manufacturer Part # S503-15305WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-8D8H-J890	0.500	0.125	100.000	S503-15305WA	ePTFE	White	10 Days	$3,923.20	Starting at: $3,923.20	PRICE QTY $3,923.20
Gore Series 500 Gasket Tape 3/4" Width, 1/8" Thk, 100 Ft Length, S503-20305WA Mfg Part #	Width (In.) 0.750 Thickness (In.) 0.125 Length (Ft.) 100.000 Manufacturer Part # S503-20305WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-170A-J890	0.750	0.125	100.000	S503-20305WA	ePTFE	White	10 Days	$4,109.10	Starting at: $4,109.10	PRICE QTY $4,109.10
Gore Series 500 Gasket Tape 1" Width, 1/8" Thk, 100 Ft Length, S503-25305WA Mfg Part #	Width (In.) 1.000 Thickness (In.) 0.125 Length (Ft.) 100.000 Manufacturer Part # S503-25305WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-3036-J890	1.000	0.125	100.000	S503-25305WA	ePTFE	White	10 Days	$4,315.86	Starting at: $4,315.86	PRICE QTY $4,315.86
Gore Series 500 Gasket Tape 1.5" Width, 1/8" Thk, 100 Ft Length, S503-40305WA Mfg Part #	Width (In.) 1.500 Thickness (In.) 0.125 Length (Ft.) 100.000 Manufacturer Part # S503-40305WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-UBWN-J890	1.500	0.125	100.000	S503-40305WA	ePTFE	White	10 Days	$4,967.42	Starting at: $4,967.42	PRICE QTY $4,967.42
Gore Series 500 Gasket Tape 2" Width, 1/8" Thk, 100 Ft Length, S503-50305WA Mfg Part #	Width (In.) 2.000 Thickness (In.) 0.125 Length (Ft.) 100.000 Manufacturer Part # S503-50305WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-15Y3-9Y18-J890	2.000	0.125	100.000	S503-50305WA	ePTFE	White	10 Days	$5,453.90	Starting at: $5,453.90	PRICE QTY $5,453.90
Gore Series 500 Gasket Tape 1/2" Width, 1/4" Thk, 25 Ft Length, S506-15076WA Mfg Part #	Width (In.) 0.500 Thickness (In.) 0.250 Length (Ft.) 25.000 Manufacturer Part # S506-15076WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-2TPS-8D8H-1H03	0.500	0.250	25.000	S506-15076WA	ePTFE	White	10 Days	$1,004.24	Starting at: $1,004.24	PRICE QTY $1,004.24
Gore Series 500 Gasket Tape 3/4" Width, 1/4" Thk, 25 Ft Length, S506-20076WA Mfg Part #	Width (In.) 0.750 Thickness (In.) 0.250 Length (Ft.) 25.000 Manufacturer Part # S506-20076WA Material ePTFE Color White Ships Within 10 Days See more GK-GT-FN2-2TPS-170A-1H03	0.750	0.250	25.000	S506-20076WA	ePTFE	White	10 Days	$1,216.22	Starting at: $1,216.22	PRICE QTY $1,216.22
