Gylon 3500 Ring Gasket

Skip to the beginning of the images gallery

Gylon 3500 Ring Gasket

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

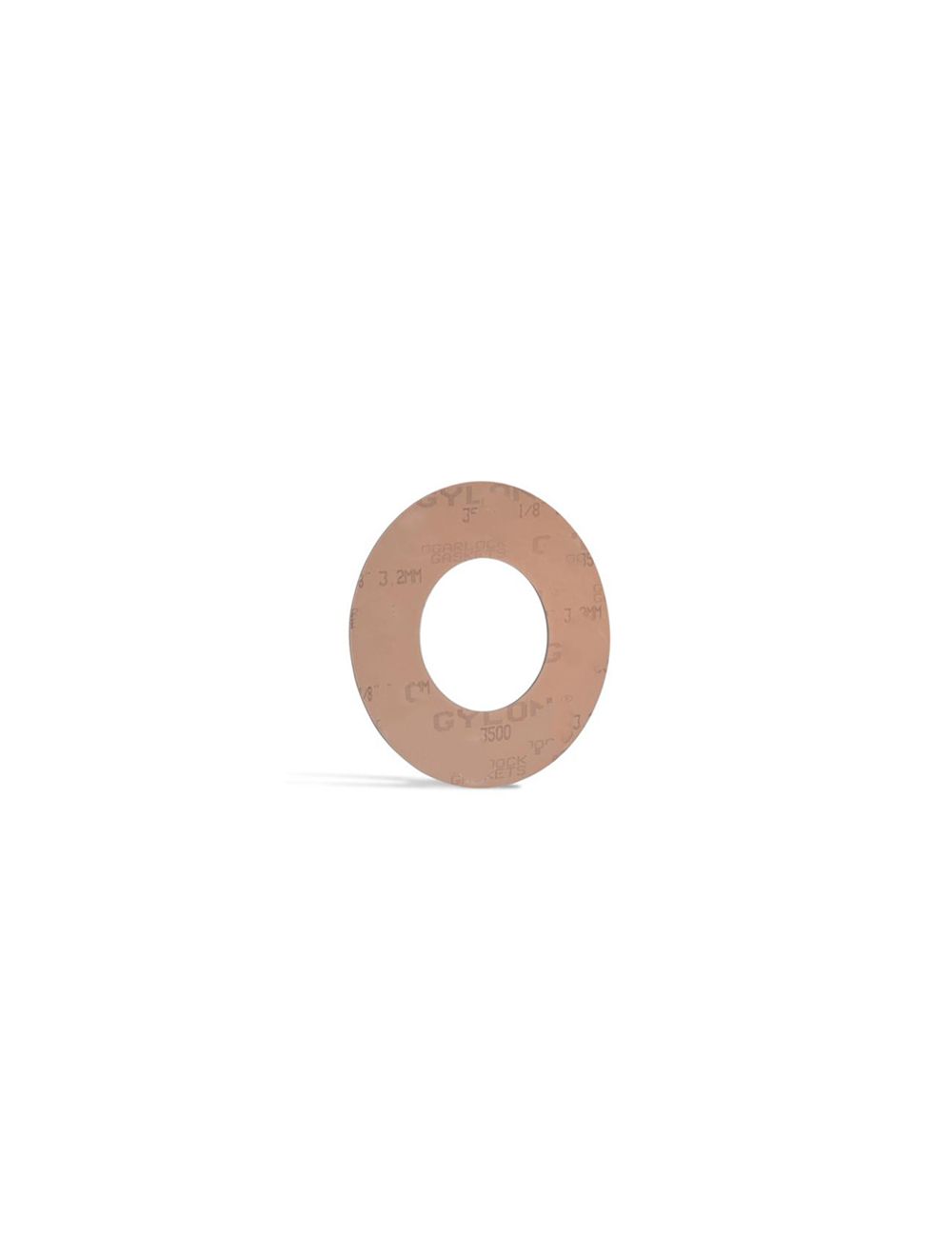

The GYLON® Style 3500 is a high performance, silica filled PTFE sheet material designed for use with strong acids, solvents, hydrocarbons, and other aggressive media. Download our ring gasket guide here.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Min Temperature (F) -450°
Max Temperature (F) 500°
Max Pressure (PSI) 1200

Recommended Applications

Strong Acids (except hydrofluoric acid), Solvents
Hydrocarbons, Water
Chlorine, Steam
Cryogenics

Material Datasheets

Gylon 3500

Sort By

Grouped product items
PART NUMBER	Nominal Pipe Size	Pressure Rating (lbs)	Flange Standard (ASME)	Thickness (In.)	Inner Diameter (In.)	Outer Diameter (In.)	Ships Within	PRICE	ADD TO CART
1/2" 150# 1/8" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 1-2 Days See more GK-RS-023-F8Q9-RE20-8PGR	1/2	150	ASME B16.5	1/8	0.840	1.880	1-2 Days	$7.24 x 2 $5.49 x 7 $3.94 x 20	Starting at: $3.94	PRICE QTY $14.49
1/2" 150# 1/16" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 1-2 Days See more GK-RS-023-F8Q9-RE20-NYGF	1/2	150	ASME B16.5	1/16	0.840	1.880	1-2 Days	$5.59 x 3 $4.02 x 10 $2.28 x 30	Starting at: $2.28	PRICE QTY $14.37
1/2" 150# 1/32" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 1-2 Days See more GK-RS-023-F8Q9-RE20-15Y3	1/2	150	ASME B16.5	1/32	0.840	1.880	1-2 Days	$4.79 x 3 $2.56 x 15 $1.47 x 40	Starting at: $1.47	PRICE QTY $12.62
1/2" 300# 1/8" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 1-2 Days See more GK-RS-023-F8Q9-G35E-8PGR	1/2	300	ASME B16.5	1/8	0.840	2.120	1-2 Days	$8.15 x 2 $7.24 x 5 $4.99 x 15	Starting at: $4.99	PRICE QTY $16.29
1/2" 300# 1/16" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 1-2 Days See more GK-RS-023-F8Q9-G35E-NYGF	1/2	300	ASME B16.5	1/16	0.840	2.120	1-2 Days	$6.07 x 3 $4.44 x 10 $2.67 x 30	Starting at: $2.67	PRICE QTY $15.43
1/2" 300# 1/32" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 1-2 Days See more GK-RS-023-F8Q9-G35E-15Y3	1/2	300	ASME B16.5	1/32	0.840	2.120	1-2 Days	$5.07 x 3 $2.81 x 15 $1.70 x 40	Starting at: $1.70	PRICE QTY $13.24
3/4" 150# 1/8" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 1-2 Days See more GK-RS-023-G56P-9CD0-8PGR	3/4	150	ASME B16.5	1/8	1.060	2.250	1-2 Days	$8.69 x 2 $7.73 x 5 $5.43 x 15	Starting at: $5.43	PRICE QTY $17.38
3/4" 150# 1/16" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 1-2 Days See more GK-RS-023-G56P-9CD0-NYGF	3/4	150	ASME B16.5	1/16	1.060	2.250	1-2 Days	$6.37 x 3 $5.66 x 7 $3.24 x 20	Starting at: $3.24	PRICE QTY $16.09
3/4" 150# 1/32" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 1-2 Days See more GK-RS-023-G56P-9CD0-15Y3	3/4	150	ASME B16.5	1/32	1.060	2.250	1-2 Days	$5.25 x 3 $3.71 x 10 $1.84 x 40	Starting at: $1.84	PRICE QTY $13.64
3/4" 300# 1/8" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-023-G56P-3983-8PGR	3/4	300	ASME B16.5	1/8	1.060	2.620	1-2 Days	$10.36 x 2 $9.21 x 4 $7.43 x 10	Starting at: $7.43	PRICE QTY $20.73
3/4" 300# 1/16" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-023-G56P-3983-NYGF	3/4	300	ASME B16.5	1/16	1.060	2.620	1-2 Days	$7.26 x 2 $6.45 x 7 $3.95 x 20	Starting at: $3.95	PRICE QTY $14.52
3/4" 300# 1/32" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-023-G56P-3983-15Y3	3/4	300	ASME B16.5	1/32	1.060	2.620	1-2 Days	$5.76 x 3 $4.17 x 10 $2.42 x 30	Starting at: $2.42	PRICE QTY $14.78
1" 150# 1/8" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-023-E4XU-VETT-8PGR	1	150	ASME B16.5	1/8	1.310	2.620	1-2 Days	$11.81 x 2 $10.50 x 4 $7.45 x 10	Starting at: $7.45	PRICE QTY $23.62
1" 150# 1/16" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-023-E4XU-VETT-NYGF	1	150	ASME B16.5	1/16	1.310	2.620	1-2 Days	$8.71 x 2 $7.74 x 5 $3.96 x 20	Starting at: $3.96	PRICE QTY $17.41
1" 150# 1/32" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-023-E4XU-VETT-15Y3	1	150	ASME B16.5	1/32	1.310	2.620	1-2 Days	$7.21 x 2 $4.18 x 10 $2.43 x 30	Starting at: $2.43	PRICE QTY $14.41
1" 300# 1/8" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 1-2 Days See more GK-RS-023-E4XU-R7WZ-8PGR	1	300	ASME B16.5	1/8	1.310	2.880	1-2 Days	$13.12 x 2 $11.67 x 3 $8.50 x 10	Starting at: $8.50	PRICE QTY $26.25
1" 300# 1/16" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 1-2 Days See more GK-RS-023-E4XU-R7WZ-NYGF	1	300	ASME B16.5	1/16	1.310	2.880	1-2 Days	$9.41 x 2 $8.36 x 5 $4.86 x 15	Starting at: $4.86	PRICE QTY $18.81
1" 300# 1/32" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 1-2 Days See more GK-RS-023-E4XU-R7WZ-15Y3	1	300	ASME B16.5	1/32	1.310	2.880	1-2 Days	$7.61 x 2 $6.76 x 5 $3.09 x 20	Starting at: $3.09	PRICE QTY $15.22
1.25" 150# 1/8" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.000 Ships Within 1-2 Days See more GK-RS-023-8WTN-QTZ0-8PGR	1-1/4	150	ASME B16.5	1/8	1.660	3.000	1-2 Days	$15.05 x 1 $13.37 x 3 $9.04 x 10	Starting at: $9.04	PRICE QTY $15.05
1.25" 150# 1/16" Thk Gylon 3500 ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.000 Ships Within 1-2 Days See more GK-RS-023-8WTN-QTZ0-NYGF	1-1/4	150	ASME B16.5	1/16	1.660	3.000	1-2 Days	$11.02 x 2 $9.80 x 4 $5.15 x 15	Starting at: $5.15	PRICE QTY $22.05
