Gylon 3510 Ring Gasket

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

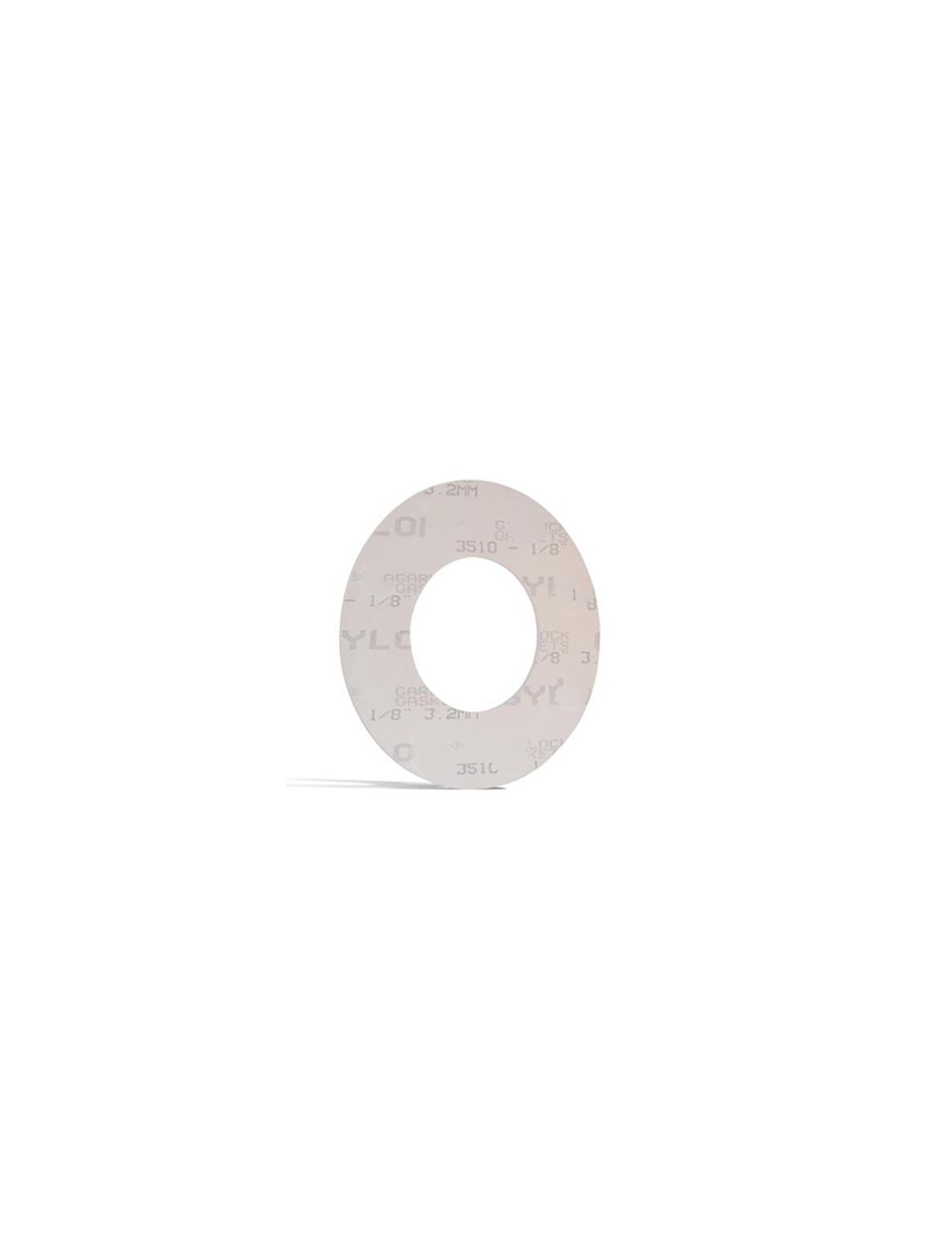

The GYLON® Style 3510 is a high performance, barium sulfate filled PTFE gasketing material. GYLON® 3510 PTFE gasket is designed for use in strong caustics and toxic chemicals, such as chlorine, ammonia, and phosgene, where initiating and maintaining an extremely tight seal is critical. Download our ring gasket guide here.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Min Temperature (F) -450°
Max Temperature (F) 500°
Max Pressure (PSI) 1200

Recommended Applications

Strong Caustics, Moderate Acids
Chlorine, Gases
Monomers, Steam
Hydrocarbons, Cryogenics and Aluminum Fluoride

Material Datasheets

Gylon 3510

Sort By

Grouped product items
PART NUMBER	Nominal Pipe Size	Pressure Rating (lbs)	Flange Standard (ASME)	Thickness (In.)	Inner Diameter (In.)	Outer Diameter (In.)	Ships Within	PRICE	ADD TO CART
1/2" 150# 1/8" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 1-2 Days See more GK-RS-48V-F8Q9-RE20-15Y3	1/2	150	ASME B16.5	1/8	0.840	1.880	1-2 Days	$8.16 x 2 $7.25 x 5 $5.00 x 15	Starting at: $5.00	PRICE QTY $16.32
1/2" 150# 1/16" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 1-2 Days See more GK-RS-48V-F8Q9-RE20-NYGF	1/2	150	ASME B16.5	1/16	0.840	1.880	1-2 Days	$6.07 x 3 $4.44 x 10 $2.67 x 30	Starting at: $2.67	PRICE QTY $15.42
1/2" 150# 1/32" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 1-2 Days See more GK-RS-48V-F8Q9-RE20-8PGR	1/2	150	ASME B16.5	1/32	0.840	1.880	1-2 Days	$5.06 x 3 $2.81 x 15 $1.69 x 40	Starting at: $1.69	PRICE QTY $13.21
1/2" 300# 1/8" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 1-2 Days See more GK-RS-48V-F8Q9-G35E-15Y3	1/2	300	ASME B16.5	1/8	0.840	2.120	1-2 Days	$9.29 x 2 $8.26 x 5 $5.91 x 15	Starting at: $5.91	PRICE QTY $18.59
1/2" 300# 1/16" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 1-2 Days See more GK-RS-48V-F8Q9-G35E-NYGF	1/2	300	ASME B16.5	1/16	0.840	2.120	1-2 Days	$6.68 x 3 $5.93 x 7 $3.48 x 20	Starting at: $3.48	PRICE QTY $16.75
1/2" 300# 1/32" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 1-2 Days See more GK-RS-48V-F8Q9-G35E-8PGR	1/2	300	ASME B16.5	1/32	0.840	2.120	1-2 Days	$5.41 x 3 $3.86 x 10 $2.14 x 30	Starting at: $2.14	PRICE QTY $13.98
3/4" 150# 1/8" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 1-2 Days See more GK-RS-48V-G56P-9CD0-15Y3	3/4	150	ASME B16.5	1/8	1.060	2.250	1-2 Days	$9.98 x 2 $8.87 x 4 $7.12 x 10	Starting at: $7.12	PRICE QTY $19.95
3/4" 150# 1/16" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 1-2 Days See more GK-RS-48V-G56P-9CD0-NYGF	3/4	150	ASME B16.5	1/16	1.060	2.250	1-2 Days	$7.04 x 2 $6.26 x 7 $3.78 x 20	Starting at: $3.78	PRICE QTY $14.09
3/4" 150# 1/32" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 1-2 Days See more GK-RS-48V-G56P-9CD0-8PGR	3/4	150	ASME B16.5	1/32	1.060	2.250	1-2 Days	$5.63 x 3 $4.05 x 10 $2.31 x 30	Starting at: $2.31	PRICE QTY $14.47
3/4" 300# 1/8" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-48V-G56P-3983-15Y3	3/4	300	ASME B16.5	1/8	1.060	2.620	1-2 Days	$12.08 x 2 $10.74 x 4 $8.80 x 10	Starting at: $8.80	PRICE QTY $24.15
3/4" 300# 1/16" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-48V-G56P-3983-NYGF	3/4	300	ASME B16.5	1/16	1.060	2.620	1-2 Days	$8.16 x 2 $7.26 x 5 $5.01 x 15	Starting at: $5.01	PRICE QTY $16.33
3/4" 300# 1/32" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-48V-G56P-3983-8PGR	3/4	300	ASME B16.5	1/32	1.060	2.620	1-2 Days	$6.27 x 3 $5.57 x 7 $3.16 x 20	Starting at: $3.16	PRICE QTY $15.89
1" 150# 1/8" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-48V-E4XU-VETT-15Y3	1	150	ASME B16.5	1/8	1.310	2.620	1-2 Days	$13.52 x 2 $12.02 x 3 $8.82 x 10	Starting at: $8.82	PRICE QTY $27.04
1" 150# 1/16" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-48V-E4XU-VETT-NYGF	1	150	ASME B16.5	1/16	1.310	2.620	1-2 Days	$9.61 x 2 $8.54 x 4 $5.02 x 15	Starting at: $5.02	PRICE QTY $19.22
1" 150# 1/32" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-48V-E4XU-VETT-8PGR	1	150	ASME B16.5	1/32	1.310	2.620	1-2 Days	$7.72 x 2 $6.86 x 5 $3.17 x 20	Starting at: $3.17	PRICE QTY $15.43
1" 300# 1/8" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 1-2 Days See more GK-RS-48V-E4XU-R7WZ-15Y3	1	300	ASME B16.5	1/8	1.310	2.880	1-2 Days	$15.18 x 1 $13.49 x 3 $11.00 x 7	Starting at: $11.00	PRICE QTY $15.18
1" 300# 1/16" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 1-2 Days See more GK-RS-48V-E4XU-R7WZ-NYGF	1	300	ASME B16.5	1/16	1.310	2.880	1-2 Days	$10.49 x 2 $9.32 x 4 $5.72 x 15	Starting at: $5.72	PRICE QTY $20.98
1" 300# 1/32" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 1-2 Days See more GK-RS-48V-E4XU-R7WZ-8PGR	1	300	ASME B16.5	1/32	1.310	2.880	1-2 Days	$8.22 x 2 $7.31 x 5 $3.58 x 20	Starting at: $3.58	PRICE QTY $16.44
1.25" 150# 1/8" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.000 Ships Within 1-2 Days See more GK-RS-48V-8WTN-QTZ0-15Y3	1-1/4	150	ASME B16.5	1/8	1.660	3.000	1-2 Days	$17.27 x 1 $15.35 x 3 $11.67 x 7	Starting at: $11.67	PRICE QTY $17.27
1.25" 150# 1/16" Thk Gylon 3510 ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.000 Ships Within 1-2 Days See more GK-RS-48V-8WTN-QTZ0-NYGF	1-1/4	150	ASME B16.5	1/16	1.660	3.000	1-2 Days	$12.19 x 2 $10.84 x 4 $6.09 x 15	Starting at: $6.09	PRICE QTY $24.39
