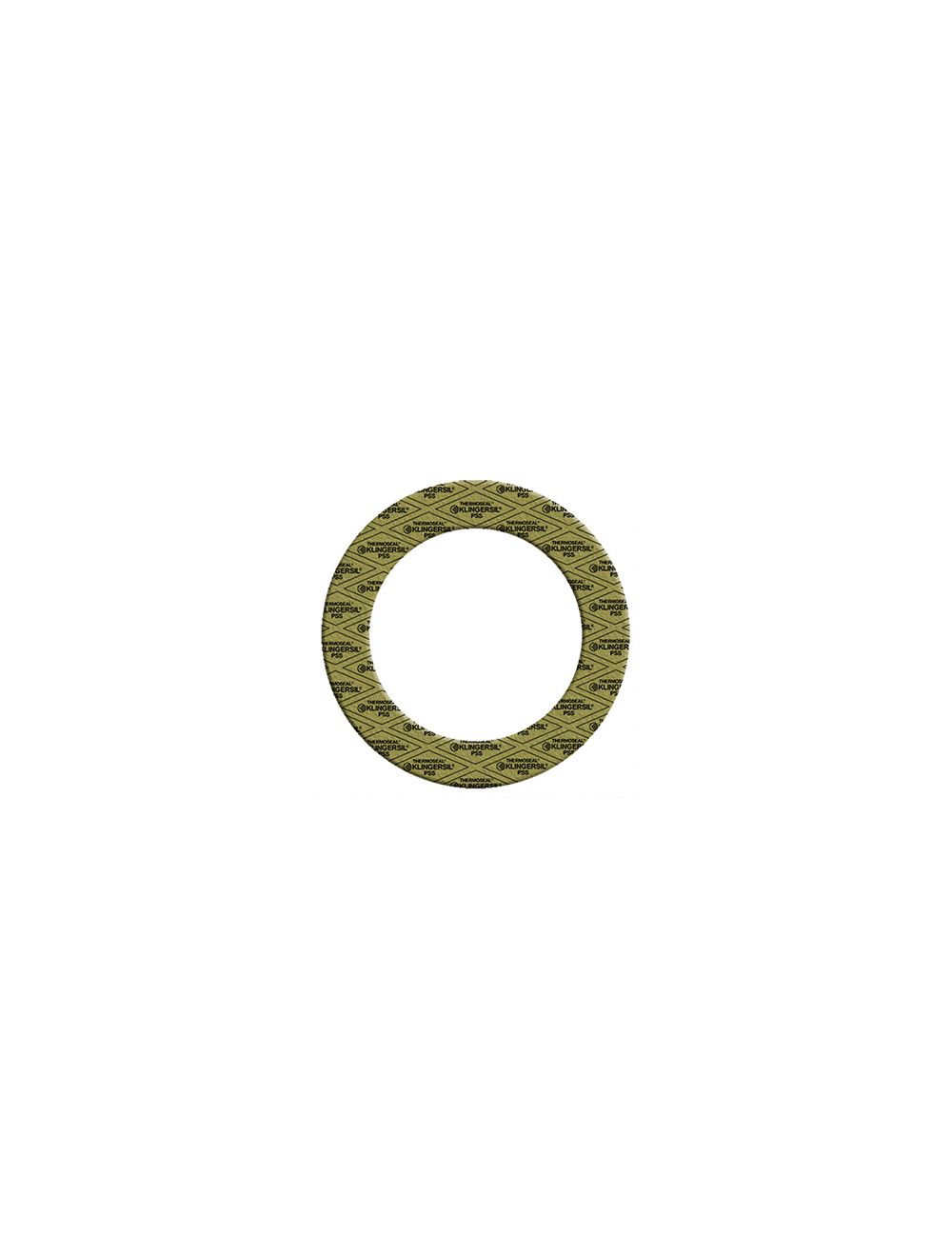

Klinger PSS High Temp Ring Gasket

Skip to the beginning of the images gallery

Klinger PSS High Temp Ring Gasket

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

Klinger PSS130 is a high temperature gasket material based on Mica with Perforated Stainless Steel Reinforcement 1.4401(AISI 316). It is specifically designed for hot, dry gas applications up to 900°C and 5 bar. KLINGER PSS130 is specifically suitable for use in aggressive acids and high temperatures applications. Download our ring gasket guide here.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Continuous Max Temperature (F) 1652°
Pressure at Continuous Max (PSI) 72.5
Max Stress (MPa) 100

Features and Benefits

Used for high temperature applications such as exhaust manifolds, turbines, turbochargers, and burner ducting
Outstanding resistance to dry heat, Good compressive strength
Good resistance to aggressive acids, bases, solvents, mineral oils
Non-flammable and non-toxic, Does not give off fumes

Material Datasheets

Klinger PSS

Sort By

Grouped product items
PART NUMBER	Nominal Pipe Size	Pressure Rating (lbs)	Flange Standard (ASME)	Thickness (In.)	Inner Diameter (In.)	Outer Diameter (In.)	Ships Within	PRICE	ADD TO CART
1/2" 150# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 1-2 Days See more GK-RS-JT0-F8Q9-RE20-NYGF	1/2	150	ASME B16.5	1/16	0.840	1.880	1-2 Days	$4.74 x 3 $4.21 x 10 $2.79 x 20	Starting at: $2.79	PRICE QTY $13.07
1/2" 150# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 1-2 Days See more GK-RS-JT0-F8Q9-RE20-15Y3	1/2	150	ASME B16.5	1/8	0.840	1.880	1-2 Days	$5.06 x 3 $4.50 x 7 $3.05 x 20	Starting at: $3.05	PRICE QTY $13.97
1/2" 300# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 1-2 Days See more GK-RS-JT0-F8Q9-G35E-NYGF	1/2	300	ASME B16.5	1/16	0.840	2.120	1-2 Days	$5.27 x 3 $4.69 x 7 $3.22 x 20	Starting at: $3.22	PRICE QTY $14.55
1/2" 300# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 1-2 Days See more GK-RS-JT0-F8Q9-G35E-15Y3	1/2	300	ASME B16.5	1/8	0.840	2.120	1-2 Days	$5.68 x 3 $5.05 x 7 $3.55 x 20	Starting at: $3.55	PRICE QTY $15.69
3/4" 150# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 1-2 Days See more GK-RS-JT0-G56P-9CD0-NYGF	3/4	150	ASME B16.5	1/16	1.060	2.250	1-2 Days	$5.60 x 3 $4.98 x 7 $3.48 x 20	Starting at: $3.48	PRICE QTY $15.47
3/4" 150# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 1-2 Days See more GK-RS-JT0-G56P-9CD0-15Y3	3/4	150	ASME B16.5	1/8	1.060	2.250	1-2 Days	$6.06 x 3 $5.39 x 7 $4.18 x 15	Starting at: $4.18	PRICE QTY $16.73
3/4" 300# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-JT0-G56P-3983-NYGF	3/4	300	ASME B16.5	1/16	1.060	2.620	1-2 Days	$6.60 x 2 $5.86 x 7 $4.61 x 15	Starting at: $4.61	PRICE QTY $13.19
3/4" 300# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-JT0-G56P-3983-15Y3	3/4	300	ASME B16.5	1/8	1.060	2.620	1-2 Days	$7.21 x 2 $6.41 x 5 $5.10 x 15	Starting at: $5.10	PRICE QTY $14.42
1" 150# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-JT0-E4XU-VETT-NYGF	1	150	ASME B16.5	1/16	1.310	2.620	1-2 Days	$6.61 x 2 $5.88 x 7 $4.62 x 15	Starting at: $4.62	PRICE QTY $13.23
1" 150# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more GK-RS-JT0-E4XU-VETT-15Y3	1	150	ASME B16.5	1/8	1.310	2.620	1-2 Days	$7.23 x 2 $6.42 x 5 $5.12 x 15	Starting at: $5.12	PRICE QTY $14.46
1" 300# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 1-2 Days See more GK-RS-JT0-E4XU-R7WZ-NYGF	1	300	ASME B16.5	1/16	1.310	2.880	1-2 Days	$7.40 x 2 $6.57 x 5 $5.25 x 15	Starting at: $5.25	PRICE QTY $14.79
1" 300# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 1-2 Days See more GK-RS-JT0-E4XU-R7WZ-15Y3	1	300	ASME B16.5	1/8	1.310	2.880	1-2 Days	$13.97 x 2 $9.45 x 5 $6.51 x 10	Starting at: $6.51	PRICE QTY $27.93
1.25" 150# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.000 Ships Within 1-2 Days See more GK-RS-JT0-8WTN-QTZ0-NYGF	1-1/4	150	ASME B16.5	1/16	1.660	3.000	1-2 Days	$8.87 x 2 $7.89 x 4 $6.24 x 10	Starting at: $6.24	PRICE QTY $17.75
1.25" 150# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.000 Ships Within 1-2 Days See more GK-RS-JT0-8WTN-QTZ0-15Y3	1-1/4	150	ASME B16.5	1/8	1.660	3.000	1-2 Days	$9.67 x 2 $8.60 x 4 $6.88 x 10	Starting at: $6.88	PRICE QTY $19.34
1.25" 300# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.250 Ships Within 1-2 Days See more GK-RS-JT0-8WTN-63DR-NYGF	1-1/4	300	ASME B16.5	1/16	1.660	3.250	1-2 Days	$9.72 x 2 $8.64 x 4 $6.92 x 10	Starting at: $6.92	PRICE QTY $19.45
1.25" 300# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.250 Ships Within 1-2 Days See more GK-RS-JT0-8WTN-63DR-15Y3	1-1/4	300	ASME B16.5	1/8	1.660	3.250	1-2 Days	$10.65 x 2 $9.47 x 4 $7.66 x 10	Starting at: $7.66	PRICE QTY $21.30
1.5" 150# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.910 Outer Diameter (In.) 3.380 Ships Within 1-2 Days See more GK-RS-JT0-3TR9-G2Q9-NYGF	1-1/2	150	ASME B16.5	1/16	1.910	3.380	1-2 Days	$10.21 x 2 $9.07 x 4 $7.31 x 10	Starting at: $7.31	PRICE QTY $20.41
1.5" 150# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.910 Outer Diameter (In.) 3.380 Ships Within 1-2 Days See more GK-RS-JT0-3TR9-G2Q9-15Y3	1-1/2	150	ASME B16.5	1/8	1.910	3.380	1-2 Days	$15.97 x 2 $12.34 x 4 $8.97 x 7	Starting at: $8.97	PRICE QTY $31.94
1.5" 300# 1/16" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/16 Inner Diameter (In.) 1.910 Outer Diameter (In.) 3.750 Ships Within 1-2 Days See more GK-RS-JT0-3TR9-S36D-NYGF	1-1/2	300	ASME B16.5	1/16	1.910	3.750	1-2 Days	$16.39 x 2 $14.57 x 3 $9.30 x 7	Starting at: $9.30	PRICE QTY $32.78
1.5" 300# 1/8" Thk Klinger PSS ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.910 Outer Diameter (In.) 3.750 Ships Within 1-2 Days See more GK-RS-JT0-3TR9-S36D-15Y3	1-1/2	300	ASME B16.5	1/8	1.910	3.750	1-2 Days	$21.78 x 1 $15.66 x 3 $10.28 x 7	Starting at: $10.28	PRICE QTY $21.78
