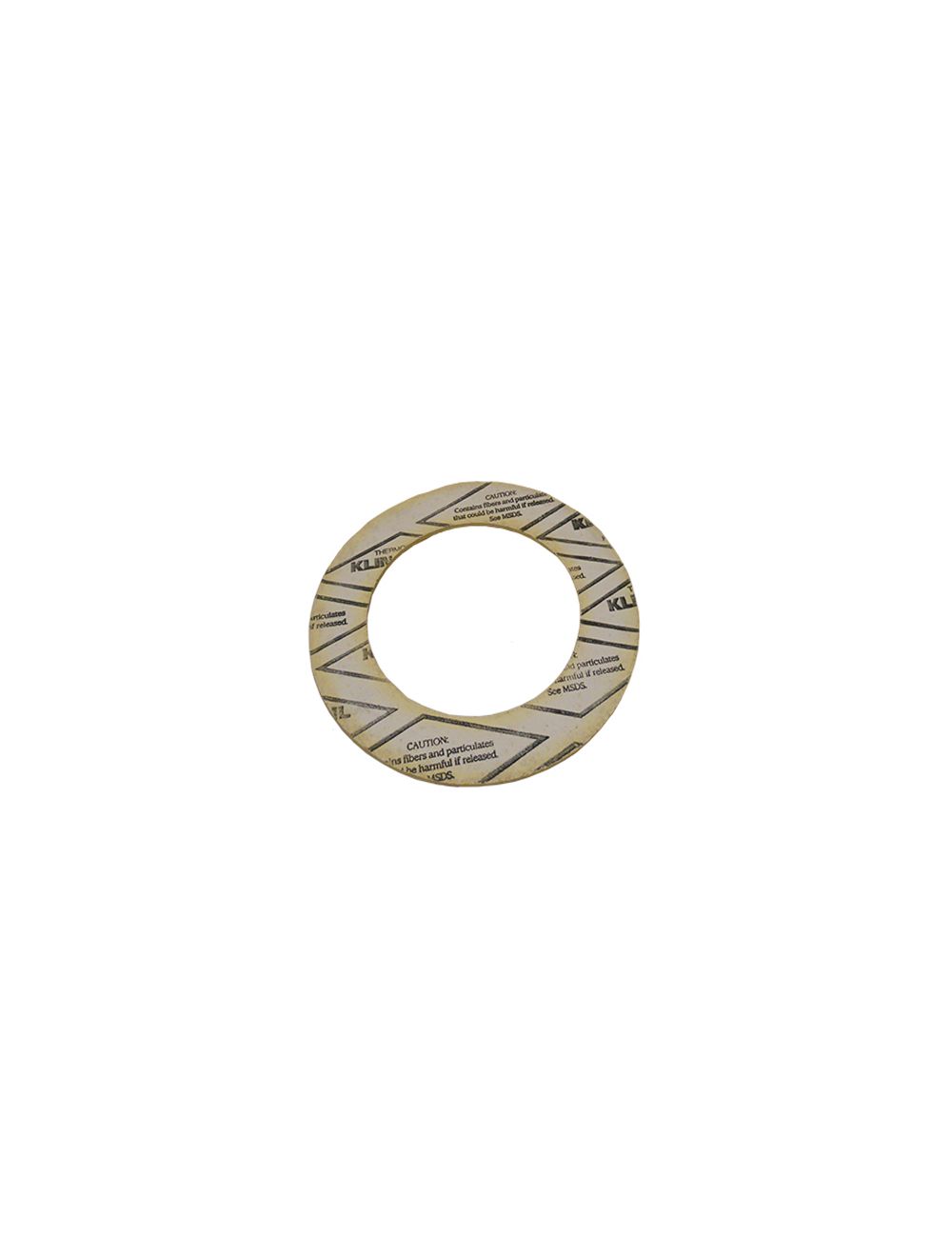

Klingersil C6400 Ring Gasket

Thermoseal's KLINGERSIL C-6400 ring gasket is a general purpose high performance compressed gasket material made with a modified SBR binder. It offers good anti-stick properties and is a good steam sheet.

  •  Performance
    • Min Temperature (F) -148°
    • Max Temperature (F) 662°
    • Continuous Max with Steam (F) 500°
    • Max Pressure (PSI) 1200
  • Recommended Applications
    • Petrochemical, Chemical
    • Paper, Food
    • Steel, Mining
    • Transportation, Aerospace
Filter results
Inner Diameter
- (392)
Pressure Rating
x clear all
Outer Diameter
- (392)
Thickness Nominal
x clear all
Grouped product items
PART NUMBER Nominal Pipe Size Pressure Rating (lbs) Flange Standard (ASME) Thickness (In.) Inner Diameter (In.) Outer Diameter (In.) Ships Within
PRICE
ADD TO CART
1/2" 150# 1/64" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/64

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 1.880

Ships Within : 1-2 Days

See more

Starting at: $0.63
PRICE QTY
$11.18
1/2" 150# 1/8" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 1.880

Ships Within : 1-2 Days

See more

Starting at: $0.83
PRICE QTY
$12.30
1/2" 150# 1/16" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 1.880

Ships Within : 1-2 Days

See more

Starting at: $0.69
PRICE QTY
$11.51
1/2" 150# 1/32" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 1.880

Ships Within : 1-2 Days

See more

Starting at: $0.64
PRICE QTY
$11.19
1/2" 300# 1/32" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 2.120

Ships Within : 1-2 Days

See more

Starting at: $0.67
PRICE QTY
$11.37
1/2" 300# 1/64" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/64

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 2.120

Ships Within : 1-2 Days

See more

Starting at: $0.67
PRICE QTY
$11.36
1/2" 300# 1/8" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 2.120

Ships Within : 1-2 Days

See more

Starting at: $0.91
PRICE QTY
$10.21
1/2" 300# 1/16" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 2.120

Ships Within : 1-2 Days

See more

Starting at: $0.74
PRICE QTY
$11.77
3/4" 150# 1/32" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.250

Ships Within : 1-2 Days

See more

Starting at: $0.70
PRICE QTY
$11.53
3/4" 150# 1/16" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.250

Ships Within : 1-2 Days

See more

Starting at: $0.77
PRICE QTY
$11.98
3/4" 150# 1/8" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.250

Ships Within : 1-2 Days

See more

Starting at: $0.96
PRICE QTY
$10.48
3/4" 150# 1/64" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/64

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.250

Ships Within : 1-2 Days

See more

Starting at: $0.69
PRICE QTY
$11.52
3/4" 300# 1/32" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $0.75
PRICE QTY
$11.85
3/4" 300# 1/64" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/64

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $0.75
PRICE QTY
$11.83
3/4" 300# 1/8" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $1.11
PRICE QTY
$11.15
3/4" 300# 1/16" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $0.85
PRICE QTY
$12.45
1" 150# 1/64" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/64

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $0.76
PRICE QTY
$11.90
1" 150# 1/8" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $1.12
PRICE QTY
$11.20
1" 150# 1/16" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $0.87
PRICE QTY
$10.01
1" 150# 1/32" Thk C6400 ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $0.76
PRICE QTY
$11.92
