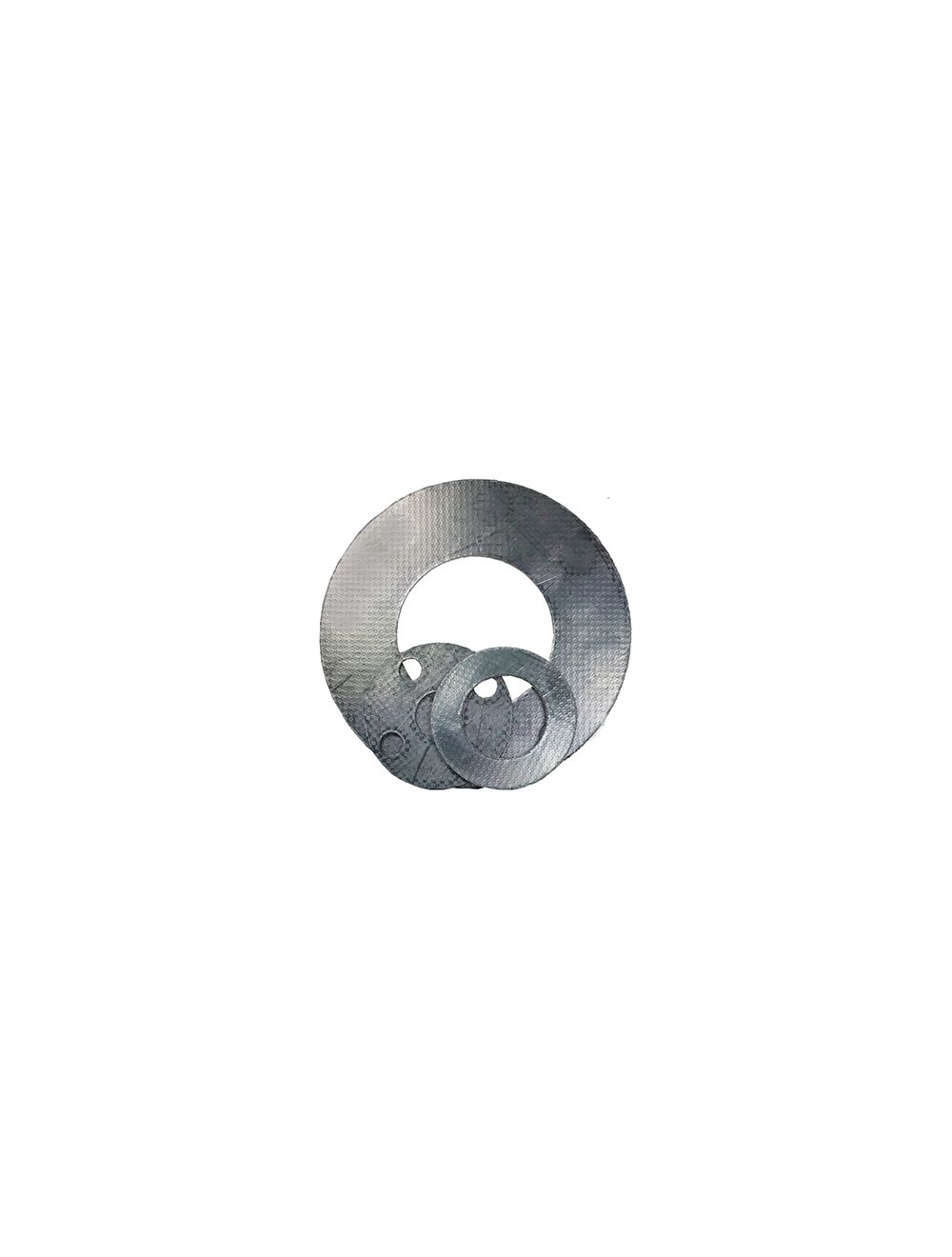

Klingersil Flexible Graphite PSM-TC Ring Gasket

Klinger PSM Flexible Graphite: High strength material with optimum handling. KLINGER flexible graphite materials do not flow under pressure and temperature loading, and are a reliable source for sealing of gases and liquids. They have an outstanding resistance against temperature variations and high thermal conductivity.

  •  Performance
    • Min Temperature (F) -328°
    • Max Temperature (F) 850°
    • Max Pressure (PSI) 2000
  • Features and Benefits
    • Graphite mechanically clinched to a .004" 316 stainless steel tang core (no adhesive)
    • Highly compressible & compactible; Excellent anti-stick properties
    • Low gas permeability
    • Ideal for hot water and steam at temperatures up to 450°C. In combination with an inner eyelet, also suitable for media used in the food industry
Filter results
Inner Diameter
- (254)
Pressure Rating
x clear all
Outer Diameter
- (254)
Thickness Nominal
x clear all
Grouped product items
PART NUMBER Nominal Pipe Size Pressure Rating (lbs) Flange Standard (ASME) Thickness (In.) Inner Diameter (In.) Outer Diameter (In.) Ships Within
PRICE
ADD TO CART
1/2" 150# 1/8" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 1.880

Ships Within : 1-2 Days

See more

Starting at: $1.22
PRICE QTY
$11.66
1/2" 150# 1/16" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 1.880

Ships Within : 1-2 Days

See more

Starting at: $0.94
PRICE QTY
$10.38
1/2" 150# 1/32" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 1.880

Ships Within : 1-2 Days

See more

Starting at: $0.98
PRICE QTY
$10.55
1/2" 300# 1/32" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 2.120

Ships Within : 1-2 Days

See more

Starting at: $1.10
PRICE QTY
$11.10
1/2" 300# 1/8" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 2.120

Ships Within : 1-2 Days

See more

Starting at: $1.40
PRICE QTY
$12.49
1/2" 300# 1/16" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 2.120

Ships Within : 1-2 Days

See more

Starting at: $1.05
PRICE QTY
$10.89
3/4" 150# 1/32" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.250

Ships Within : 1-2 Days

See more

Starting at: $1.18
PRICE QTY
$11.47
3/4" 150# 1/8" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.250

Ships Within : 1-2 Days

See more

Starting at: $1.66
PRICE QTY
$13.02
3/4" 150# 1/16" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.250

Ships Within : 1-2 Days

See more

Starting at: $1.13
PRICE QTY
$11.23
3/4" 300# 1/8" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $1.99
PRICE QTY
$10.92
3/4" 300# 1/32" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $1.40
PRICE QTY
$12.48
3/4" 300# 1/16" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $1.33
PRICE QTY
$12.16
1" 150# 1/16" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $1.34
PRICE QTY
$12.21
1" 150# 1/32" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $1.41
PRICE QTY
$12.54
1" 150# 1/8" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $2.29
PRICE QTY
$10.96
1" 300# 1/8" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.880

Ships Within : 1-2 Days

See more

Starting at: $2.55
PRICE QTY
$11.86
1" 300# 1/16" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.880

Ships Within : 1-2 Days

See more

Starting at: $1.64
PRICE QTY
$12.94
1" 300# 1/32" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/32

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.880

Ships Within : 1-2 Days

See more

Starting at: $1.72
PRICE QTY
$13.33
1.25" 150# 1/8" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 3.000

Ships Within : 1-2 Days

See more

Starting at: $2.69
PRICE QTY
$14.93
1.25" 150# 1/16" Thk Flexible Graphite PSM-TC ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 3.000

Ships Within : 1-2 Days

See more

Starting at: $1.73
PRICE QTY
$12.60
