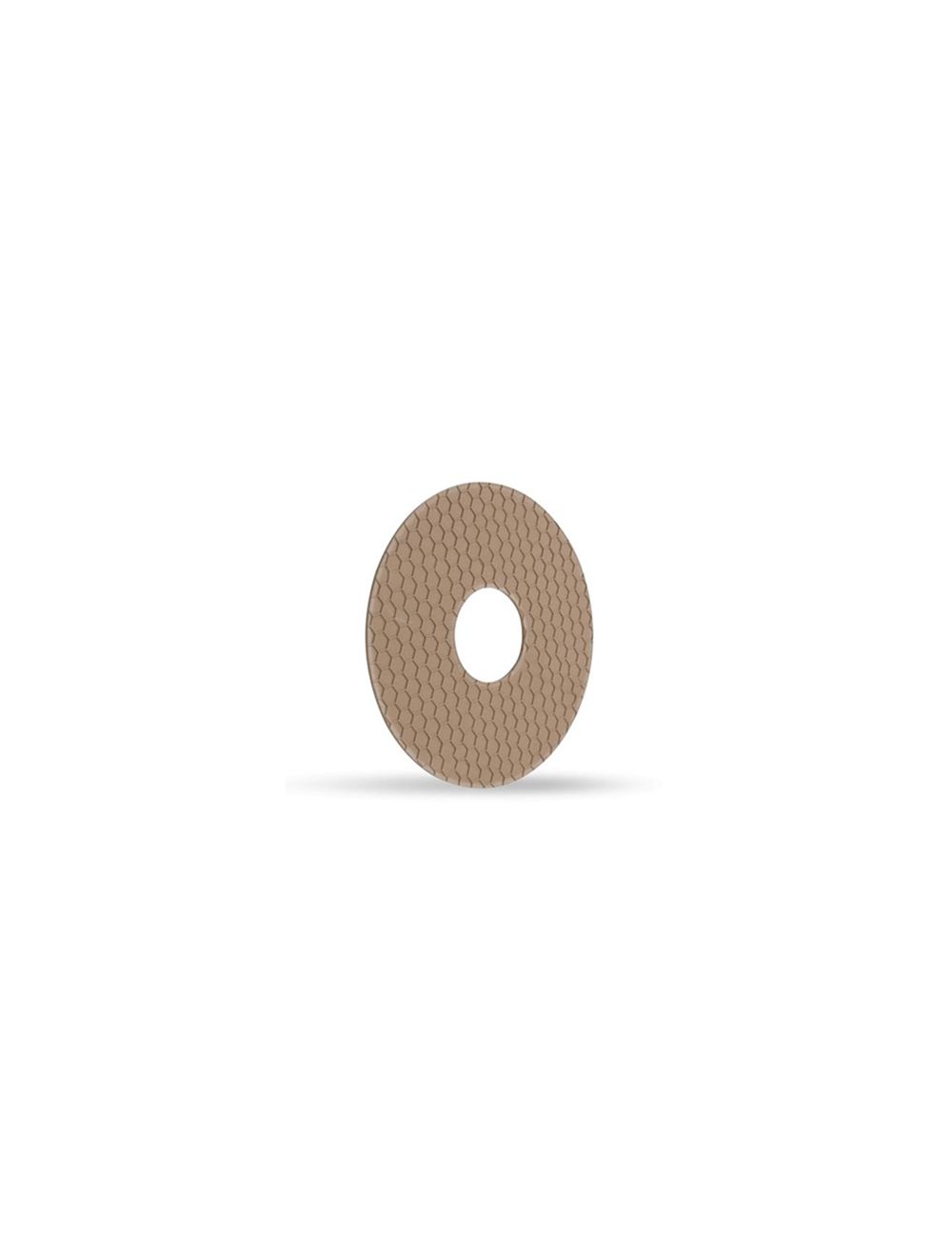

Gylon 3500 EPIX Ring Gasket
Can't find your size or material?
Need a higher quantity price?
Let us customize your order.
GYLON EPIX® Style 3500 is a high performance, silica filled PTFE gasket sheet material designed for use with strong acids, solvents, hydrocarbons, and other aggressive media. GYLON EPIX® Style 3500 withstands a wide range of chemicals for extended service in a wide variety of applications. Download our ring gasket guide here.
PERFORMANCE & SPECIFICATIONS
- Performance
- Min Temperature (F) -450°
- Max Temperature (F) 500°
- Max Pressure (PSI) 1200
- Recommended Applications
- Strong Acids (except hydrofluoric acid), Solvents
- Water, Hydrocarbons
- Chlorine, Steam
- Cryogenics
- Material Datasheets
| PART NUMBER | Nominal Pipe Size | Pressure Rating (lbs) | Flange Standard (ASME) | Thickness (In.) | Inner Diameter (In.) | Outer Diameter (In.) | Ships Within |
PRICE
|
ADD TO CART | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 1-2 Days See more |
1/2 | 150 | ASME B16.5 | 3/32 | 0.840 | 1.880 | 1-2 Days |
$7.03
x 2
$6.25
x 7
$3.77
x 20
|
Starting at: $3.77 | |
| 1/2" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 1-2 Days See more |
1/2 | 300 | ASME B16.5 | 3/32 | 0.840 | 2.120 | 1-2 Days |
$7.88
x 2
$7.01
x 5
$4.78
x 15
|
Starting at: $4.78 | |
| 3/4" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 1-2 Days See more |
3/4 | 150 | ASME B16.5 | 3/32 | 1.060 | 2.250 | 1-2 Days |
$8.40
x 2
$7.46
x 5
$5.19
x 15
|
Starting at: $5.19 | |
| 3/4" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more |
3/4 | 300 | ASME B16.5 | 3/32 | 1.060 | 2.620 | 1-2 Days |
$9.97
x 2
$8.86
x 4
$7.12
x 10
|
Starting at: $7.12 | |
| 1" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 1-2 Days See more |
1 | 150 | ASME B16.5 | 3/32 | 1.310 | 2.620 | 1-2 Days |
$11.42
x 2
$10.15
x 4
$7.13
x 10
|
Starting at: $7.13 | |
| 1" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 1-2 Days See more |
1 | 300 | ASME B16.5 | 3/32 | 1.310 | 2.880 | 1-2 Days |
$12.65
x 2
$11.25
x 4
$8.12
x 10
|
Starting at: $8.12 | |
| 1.25" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.000 Ships Within 1-2 Days See more |
1-1/4 | 150 | ASME B16.5 | 3/32 | 1.660 | 3.000 | 1-2 Days |
$14.54
x 1
$12.92
x 3
$8.63
x 10
|
Starting at: $8.63 | |
| 1.25" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.250 Ships Within 1-2 Days See more |
1-1/4 | 300 | ASME B16.5 | 3/32 | 1.660 | 3.250 | 1-2 Days |
$15.88
x 1
$14.12
x 3
$10.56
x 7
|
Starting at: $10.56 | |
| 1.5" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 1.910 Outer Diameter (In.) 3.380 Ships Within 1-2 Days See more |
1-1/2 | 150 | ASME B16.5 | 3/32 | 1.910 | 3.380 | 1-2 Days |
$18.72
x 1
$16.64
x 3
$11.17
x 7
|
Starting at: $11.17 | |
| 1.5" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 1.910 Outer Diameter (In.) 3.750 Ships Within 1-2 Days See more |
1-1/2 | 300 | ASME B16.5 | 3/32 | 1.910 | 3.750 | 1-2 Days |
$20.98
x 1
$18.64
x 3
$14.11
x 5
|
Starting at: $14.11 | |
| 2" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 2.380 Outer Diameter (In.) 4.120 Ships Within 1-2 Days See more |
2 | 150 | ASME B16.5 | 3/32 | 2.380 | 4.120 | 1-2 Days |
$23.49
x 1
$20.88
x 3
$16.12
x 5
|
Starting at: $16.12 | |
| 2" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 2.380 Outer Diameter (In.) 4.380 Ships Within 1-2 Days See more |
2 | 300 | ASME B16.5 | 3/32 | 2.380 | 4.380 | 1-2 Days |
$25.36
x 1
$22.54
x 3
$17.62
x 5
|
Starting at: $17.62 | |
| 2.5" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 2-1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 2.880 Outer Diameter (In.) 4.880 Ships Within 1-2 Days See more |
2-1/2 | 150 | ASME B16.5 | 3/32 | 2.880 | 4.880 | 1-2 Days |
$33.48
x 1
$26.06
x 3
$20.78
x 5
|
Starting at: $20.78 | |
| 2.5" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 2-1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 2.880 Outer Diameter (In.) 5.120 Ships Within 1-2 Days See more |
2-1/2 | 300 | ASME B16.5 | 3/32 | 2.880 | 5.120 | 1-2 Days |
$35.51
x 1
$27.86
x 3
$22.40
x 5
|
Starting at: $22.40 | |
| 3" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 3 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 3.500 Outer Diameter (In.) 5.380 Ships Within 1-2 Days See more |
3 | 150 | ASME B16.5 | 3/32 | 3.500 | 5.380 | 1-2 Days |
$37.85
x 1
$29.94
x 3
$24.28
x 5
|
Starting at: $24.28 | |
| 3" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 3 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 3.500 Outer Diameter (In.) 5.880 Ships Within 1-2 Days See more |
3 | 300 | ASME B16.5 | 3/32 | 3.500 | 5.880 | 1-2 Days |
$42.58
x 1
$34.15
x 3
$28.07
x 5
|
Starting at: $28.07 | |
| 3.5" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 3-1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 4.000 Outer Diameter (In.) 6.380 Ships Within 1-2 Days See more |
3-1/2 | 150 | ASME B16.5 | 3/32 | 4.000 | 6.380 | 1-2 Days |
$47.76
x 1
$38.75
x 3
$32.21
x 5
|
Starting at: $32.21 | |
| 3.5" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 3-1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 4.000 Outer Diameter (In.) 6.500 Ships Within 1-2 Days See more |
3-1/2 | 300 | ASME B16.5 | 3/32 | 4.000 | 6.500 | 1-2 Days |
$49.06
x 1
$39.90
x 3
$33.24
x 5
|
Starting at: $33.24 | |
| 4" 150# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 4.500 Outer Diameter (In.) 6.880 Ships Within 1-2 Days See more |
4 | 150 | ASME B16.5 | 3/32 | 4.500 | 6.880 | 1-2 Days |
$53.35
x 1
$43.72
x 3
$36.68
x 5
|
Starting at: $36.68 | |
| 4" 300# 3/32" Thk Gylon 3500 EPIX ASME B16.5 Ring Gasket |
Nominal Pipe Size 4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 3/32 Inner Diameter (In.) 4.500 Outer Diameter (In.) 7.120 Ships Within 1-2 Days See more |
4 | 300 | ASME B16.5 | 3/32 | 4.500 | 7.120 | 1-2 Days |
$56.16
x 1
$46.21
x 3
$38.93
x 5
|
Starting at: $38.93 |
