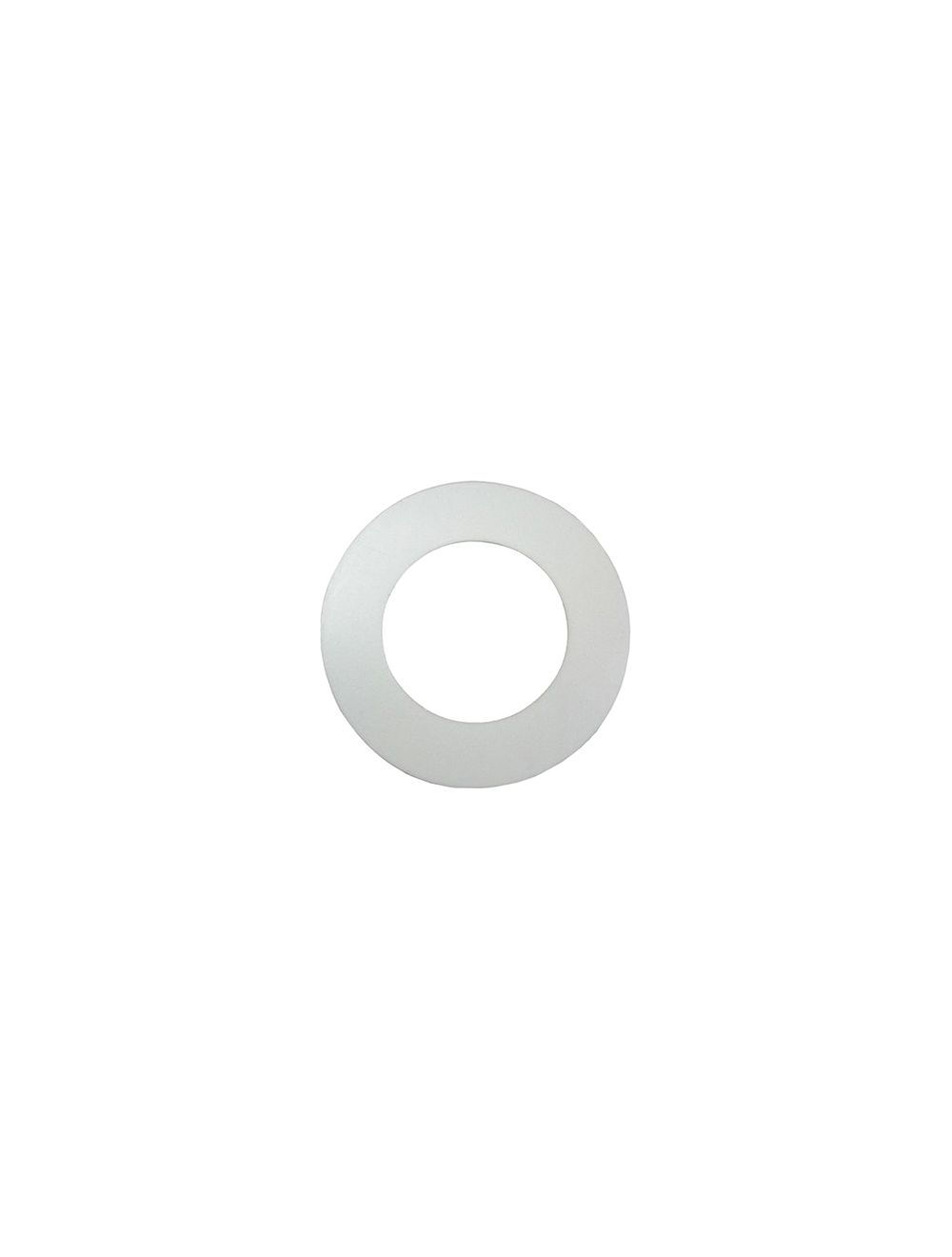

Virgin PTFE Ring Gasket

Virgin PTFE is a high molecular weight polymer and one of the most versatile plastics known to man. This PTFE ring gasket can handle virtually all chemicals in the 0-14 pH range with the exception of molten alkali metals and elemental fluorine. It is suitable for service at temperatures from the cryogenic range up to 500°F.

  •  Performance
    • Min Temperature (F) -328°
    • Max Temperature (F) 500°
    • Max Pressure (PSI) 5000
  • Recommended Applications
    • Food
    • Beverage
    • Anywhere high purity materials are needed
    • Anywhere contamination or discoloration of flow media cannot be tolerated
Filter results
Inner Diameter
- (196)
Pressure Rating
x clear all
Outer Diameter
- (196)
Thickness Nominal
x clear all
Grouped product items
PART NUMBER Nominal Pipe Size Pressure Rating (lbs) Flange Standard (ASME) Thickness (In.) Inner Diameter (In.) Outer Diameter (In.) Ships Within
PRICE
ADD TO CART
1/2" 150# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 1.880

Ships Within : 1-2 Days

See more

Starting at: $1.35
PRICE QTY
$12.28
1/2" 150# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 1.880

Ships Within : 1-2 Days

See more

Starting at: $0.95
PRICE QTY
$10.41
1/2" 300# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 2.120

Ships Within : 1-2 Days

See more

Starting at: $1.06
PRICE QTY
$10.93
1/2" 300# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 0.840

Outer Diameter (In.) : 2.120

Ships Within : 1-2 Days

See more

Starting at: $1.71
PRICE QTY
$13.27
3/4" 150# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.250

Ships Within : 1-2 Days

See more

Starting at: $1.14
PRICE QTY
$11.28
3/4" 150# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.250

Ships Within : 1-2 Days

See more

Starting at: $1.85
PRICE QTY
$10.42
3/4" 300# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $2.53
PRICE QTY
$11.79
3/4" 300# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 3/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.060

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $1.34
PRICE QTY
$12.23
1" 150# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $2.54
PRICE QTY
$11.83
1" 150# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.620

Ships Within : 1-2 Days

See more

Starting at: $1.35
PRICE QTY
$12.28
1" 300# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.880

Ships Within : 1-2 Days

See more

Starting at: $1.66
PRICE QTY
$13.02
1" 300# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.310

Outer Diameter (In.) : 2.880

Ships Within : 1-2 Days

See more

Starting at: $2.85
PRICE QTY
$12.90
1.25" 150# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 3.000

Ships Within : 1-2 Days

See more

Starting at: $1.75
PRICE QTY
$12.66
1.25" 150# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 3.000

Ships Within : 1-2 Days

See more

Starting at: $3.01
PRICE QTY
$10.71
1.25" 300# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 3.250

Ships Within : 1-2 Days

See more

Starting at: $3.63
PRICE QTY
$11.48
1.25" 300# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/4

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.660

Outer Diameter (In.) : 3.250

Ships Within : 1-2 Days

See more

Starting at: $1.92
PRICE QTY
$13.26
1.5" 150# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 3.380

Ships Within : 1-2 Days

See more

Starting at: $3.83
PRICE QTY
$11.93
1.5" 150# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 150

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 3.380

Ships Within : 1-2 Days

See more

Starting at: $2.31
PRICE QTY
$13.63
1.5" 300# 1/16" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/16

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 3.750

Ships Within : 1-2 Days

See more

Starting at: $2.60
PRICE QTY
$14.62
1.5" 300# 1/8" Thk Virgin PTFE ASME B16.5 Ring Gasket

Nominal Pipe Size : 1-1/2

Pressure Rating (lbs) : 300

Flange Standard (ASME) : ASME B16.5

Thickness (In.) : 1/8

Inner Diameter (In.) : 1.910

Outer Diameter (In.) : 3.750

Ships Within : 1-2 Days

See more

Starting at: $4.39
PRICE QTY
$13.23
