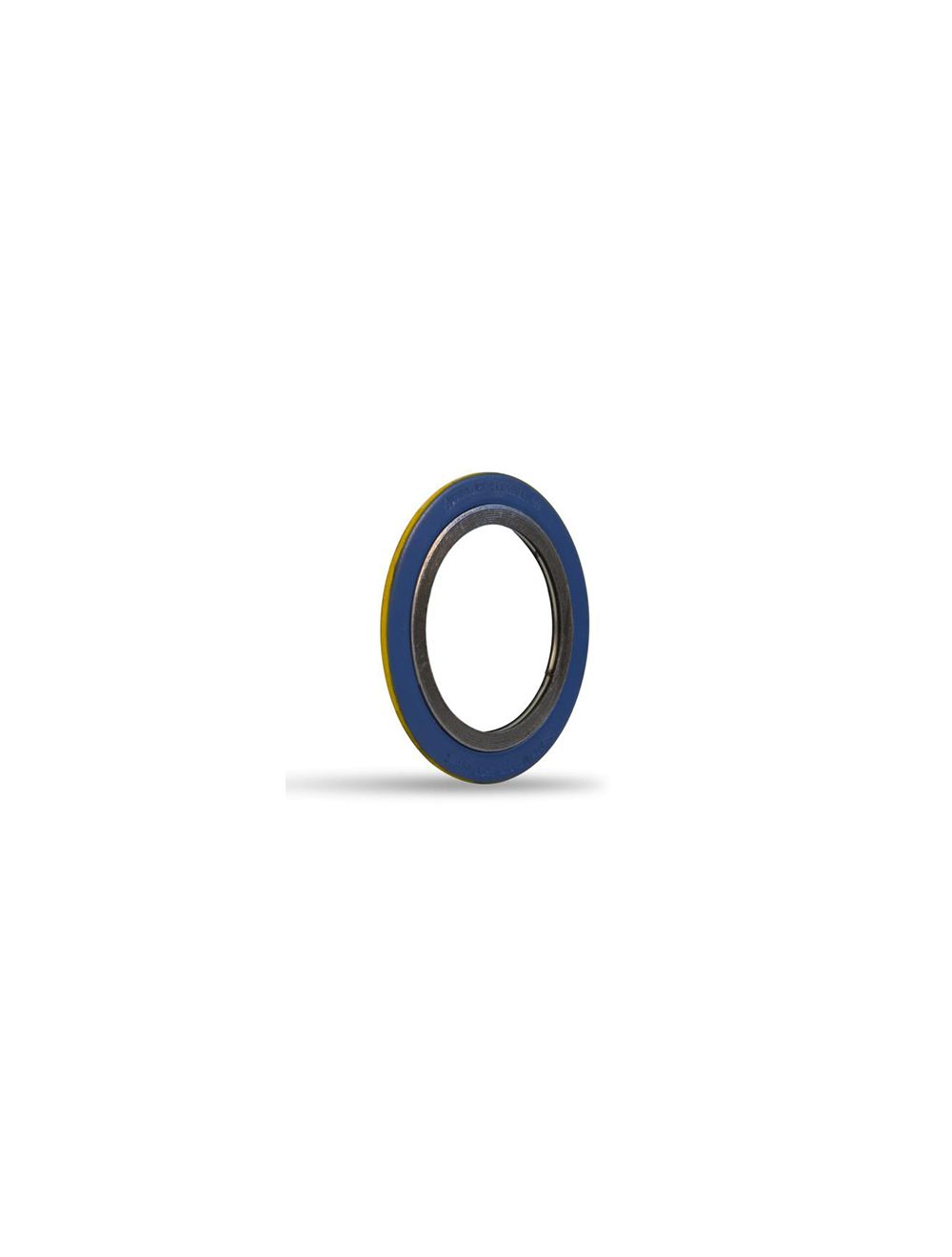

Spiral Wound Gasket (No Inner Ring)

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

This spiral wound gasket is engineered for ASME flanges with metal windings, filler material, and a centering ring. It offers excellent general purpose performance for raised face flanges. Its durable construction and consistent compression deliver superior safety and exceptional sealing performance.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Features and Benefits

Suited to temperatures from cryogenic to 2000°F / 1093°C, depending on metal and filler
Centering ring accurately locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter

Features and Benefits

Spiral winding (sealing element) consists of preformed metal and soft filler material
Suited to temperatures from cryogenic to 2000°F / 1093°C, depending on metal and filler

Sort By

Grouped product items
PART NUMBER	Nominal Pipe Size	Pressure Rating (lbs)	Inner Diameter (In.)	Outer Diameter (In.)	Winding Material	Ships Within	PRICE	ADD TO CART
1/2" 150# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Inner Diameter (In.) 0.560 Outer Diameter (In.) 1.880 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-DH95-381N-U05B	1/2	150	0.560	1.880	304 SS	1-2 Days	$1.02	Starting at: $1.02	PRICE QTY $1.02
1/2" 150# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Inner Diameter (In.) 0.560 Outer Diameter (In.) 1.880 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-DH95-381N-U05B	1/2	150	0.560	1.880	316L SS	1-2 Days	$1.20	Starting at: $1.20	PRICE QTY $1.20
1/2" 300# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Inner Diameter (In.) 0.560 Outer Diameter (In.) 2.130 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-DH95-R7WZ-U05B	1/2	300	0.560	2.130	304 SS	1-2 Days	$1.14	Starting at: $1.14	PRICE QTY $1.14
1/2" 300# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Inner Diameter (In.) 0.560 Outer Diameter (In.) 2.130 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-DH95-R7WZ-U05B	1/2	300	0.560	2.130	316L SS	1-2 Days	$1.35	Starting at: $1.35	PRICE QTY $1.35
3/4" 150# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Inner Diameter (In.) 0.810 Outer Diameter (In.) 2.250 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-1431-E5M2-U05B	3/4	150	0.810	2.250	304 SS	1-2 Days	$1.14	Starting at: $1.14	PRICE QTY $1.14
3/4" 150# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Inner Diameter (In.) 0.810 Outer Diameter (In.) 2.250 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-1431-E5M2-U05B	3/4	150	0.810	2.250	316L SS	1-2 Days	$1.40	Starting at: $1.40	PRICE QTY $1.40
3/4" 300# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Inner Diameter (In.) 0.810 Outer Diameter (In.) 2.630 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-1431-958Y-U05B	3/4	300	0.810	2.630	304 SS	1-2 Days	$1.50	Starting at: $1.50	PRICE QTY $1.50
3/4" 300# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Inner Diameter (In.) 0.810 Outer Diameter (In.) 2.630 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-1431-958Y-U05B	3/4	300	0.810	2.630	316L SS	1-2 Days	$1.64	Starting at: $1.64	PRICE QTY $1.64
1" 150# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.630 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-G56P-R7WZ-U05B	1	150	1.060	2.630	304 SS	1-2 Days	$1.38	Starting at: $1.38	PRICE QTY $1.38
1" 150# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.630 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-G56P-R7WZ-U05B	1	150	1.060	2.630	316L SS	1-2 Days	$1.68	Starting at: $1.68	PRICE QTY $1.68
1" 300# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.880 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-G56P-958Y-U05B	1	300	1.060	2.880	304 SS	1-2 Days	$1.64	Starting at: $1.64	PRICE QTY $1.64
1" 300# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.880 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-G56P-958Y-U05B	1	300	1.060	2.880	316L SS	1-2 Days	$1.90	Starting at: $1.90	PRICE QTY $1.90
1.25" 150# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Inner Diameter (In.) 1.500 Outer Diameter (In.) 3.000 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-UBWN-170A-U05B	1-1/4	150	1.500	3.000	304 SS	1-2 Days	$1.46	Starting at: $1.46	PRICE QTY $1.46
1.25" 150# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Inner Diameter (In.) 1.500 Outer Diameter (In.) 3.000 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-UBWN-170A-U05B	1-1/4	150	1.500	3.000	316L SS	1-2 Days	$1.81	Starting at: $1.81	PRICE QTY $1.81
1.25" 300# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 300 Inner Diameter (In.) 1.500 Outer Diameter (In.) 3.250 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-UBWN-7FRV-U05B	1-1/4	300	1.500	3.250	304 SS	1-2 Days	$1.75	Starting at: $1.75	PRICE QTY $1.75
1.25" 300# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 300 Inner Diameter (In.) 1.500 Outer Diameter (In.) 3.250 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-UBWN-7FRV-U05B	1-1/4	300	1.500	3.250	316L SS	1-2 Days	$2.07	Starting at: $2.07	PRICE QTY $2.07
1.5" 150# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 150 Inner Diameter (In.) 1.750 Outer Diameter (In.) 3.380 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-L511-0N29-U05B	1-1/2	150	1.750	3.380	304 SS	1-2 Days	$1.90	Starting at: $1.90	PRICE QTY $1.90
1.5" 150# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 150 Inner Diameter (In.) 1.750 Outer Diameter (In.) 3.380 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-L511-0N29-U05B	1-1/2	150	1.750	3.380	316L SS	1-2 Days	$2.11	Starting at: $2.11	PRICE QTY $2.11
1.5" 300# Spiral Wound Gasket 304 SS Windings	Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 300 Inner Diameter (In.) 1.750 Outer Diameter (In.) 3.750 Winding Material 304 SS Ships Within 1-2 Days See more GS-RW-REU-L511-3036-U05B	1-1/2	300	1.750	3.750	304 SS	1-2 Days	$2.23	Starting at: $2.23	PRICE QTY $2.23
1.5" 300# Spiral Wound Gasket 316L SS Windings	Nominal Pipe Size 1-1/2 Pressure Rating (lbs) 300 Inner Diameter (In.) 1.750 Outer Diameter (In.) 3.750 Winding Material 316L SS Ships Within 1-2 Days See more GS-RW-C1X-L511-3036-U05B	1-1/2	300	1.750	3.750	316L SS	1-2 Days	$2.47	Starting at: $2.47	PRICE QTY $2.47
