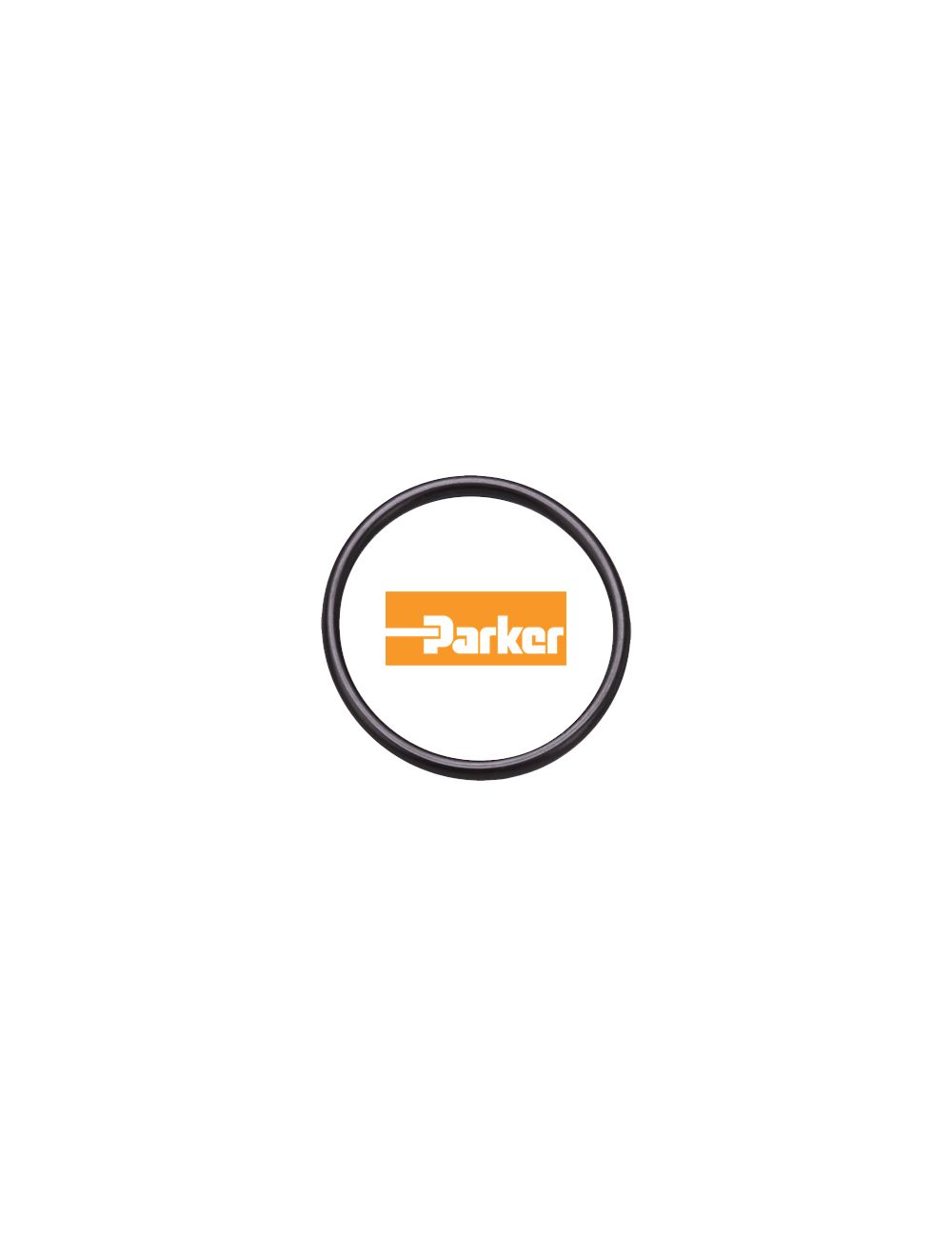

Parker’s VX065-75 is a black 75-Durometer Extreme Low-Temperature Fluorocarbon (Viton®, FKM) O-ring material. Facing the demanding requirements of the Aerospace industry, VX065-75 delivers the extreme low temperature performance needed at high altitudes and during engine startup. With outstanding compression set resistance, VX065-75 significantly extends seal life in low temperature fuel applications where traditionally only Fluorosilicone could be used. These characteristics make VX065-75 the ideal material when looking for extended life from a Fluorosilicone or lower temperature performance from an FKM.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Temperature Range (F) -65° to 400°
Extreme Low-Temperature Performance
Excellent jet fuel & HTS oil compatibility
Excellent Compression Set Resistance

Not Compatible Withs

Glycol based brake fluids
Low molecular weight organic acids (formic and acetic acids)
Superheated steam

Material Datasheets

VX065-75

Sort By

Grouped product items
PART NUMBER	O-Ring Size (AS-568)	Inner Diameter (In.)	Cross Section (In.)	Specification	O-Ring Size Series	PRICE	ADD TO CART
FKM Parker VX065-75 O-Ring, Size 001, 0.029" ID x 0.040" CS	O-Ring Size (AS-568) 001 Inner Diameter (In.) 0.029 Cross Section (In.) 0.040 Specification Low Temp O-Ring Size Series 000 Series Ships Within 4-6 Weeks Out of stock 0 See more OR-AS-9J5-ZM3J-212M-212M	001	0.029	0.040	Low Temp	4-6 Weeks 0Out of stock	$2.58	Starting at: $2.58	PRICE QTY $876.20
FKM Parker VX065-75 O-Ring, Size 002, 0.042" ID x 0.050" CS	O-Ring Size (AS-568) 002 Inner Diameter (In.) 0.042 Cross Section (In.) 0.050 Specification Low Temp O-Ring Size Series 000 Series Ships Within 5 Days Qty in stock 1187 See more OR-AS-9J5-NQA4-07QD-07QD	002	0.042	0.050	Low Temp	5 Days 1187Qty in stock	$2.46	Starting at: $2.46	PRICE QTY $17.22
FKM Parker VX065-75 O-Ring, Size 003, 0.056" ID x 0.060" CS	O-Ring Size (AS-568) 003 Inner Diameter (In.) 0.056 Cross Section (In.) 0.060 Specification Low Temp O-Ring Size Series 000 Series Ships Within 5 Days Qty in stock 1506 See more OR-AS-9J5-7TF9-3XL6-3XL6	003	0.056	0.060	Low Temp	5 Days 1506Qty in stock	$2.40	Starting at: $2.40	PRICE QTY $174.97
FKM Parker VX065-75 O-Ring, Size 004, 0.070" ID x 0.070" CS	O-Ring Size (AS-568) 004 Inner Diameter (In.) 0.070 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 5 Days Qty in stock 1457 See more OR-AS-9J5-90L8-90L8-90L8	004	0.070	0.070	Low Temp	5 Days 1457Qty in stock	$2.34	Starting at: $2.34	PRICE QTY $175.77
FKM Parker VX065-75 O-Ring, Size 005, 0.101" ID x 0.070" CS	O-Ring Size (AS-568) 005 Inner Diameter (In.) 0.101 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 4-6 Weeks Out of stock 0 See more OR-AS-9J5-6TMQ-90L8-90L8	005	0.101	0.070	Low Temp	4-6 Weeks 0Out of stock	$2.16	Starting at: $2.16	PRICE QTY $874.74
FKM Parker VX065-75 O-Ring, Size 006, 0.114" ID x 0.070" CS	O-Ring Size (AS-568) 006 Inner Diameter (In.) 0.114 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 1-2 Days Qty in stock 4 See more OR-AS-9J5-VJVX-90L8-90L8	006	0.114	0.070	Low Temp	1-2 Days 4Qty in stock	$2.06	Starting at: $2.06	PRICE QTY $8.23
FKM Parker VX065-75 O-Ring, Size 007, 0.145" ID x 0.070" CS	O-Ring Size (AS-568) 007 Inner Diameter (In.) 0.145 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 5 Days Qty in stock 1954 See more OR-AS-9J5-P4ED-90L8-90L8	007	0.145	0.070	Low Temp	5 Days 1954Qty in stock	$2.10	Starting at: $2.10	PRICE QTY $35.63
FKM Parker VX065-75 O-Ring, Size 008, 0.176" ID x 0.070" CS	O-Ring Size (AS-568) 008 Inner Diameter (In.) 0.176 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 5 Days Qty in stock 105 See more OR-AS-9J5-MV8H-90L8-90L8	008	0.176	0.070	Low Temp	5 Days 105Qty in stock	$2.17	Starting at: $2.17	PRICE QTY $173.94
FKM Parker VX065-75 O-Ring, Size 009, 0.208" ID x 0.070" CS	O-Ring Size (AS-568) 009 Inner Diameter (In.) 0.210 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 1-2 Days Qty in stock 81 See more OR-AS-9J5-17B5-90L8-90L8	009	0.210	0.070	Low Temp	1-2 Days 81Qty in stock	$2.21	Starting at: $2.21	PRICE QTY $35.41
FKM Parker VX065-75 O-Ring, Size 010, 0.239" ID x 0.070" CS	O-Ring Size (AS-568) 010 Inner Diameter (In.) 0.239 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 5 Days Qty in stock 782 See more OR-AS-9J5-JQVV-90L8-90L8	010	0.239	0.070	Low Temp	5 Days 782Qty in stock	$2.29	Starting at: $2.29	PRICE QTY $34.36
FKM Parker VX065-75 O-Ring, Size 011, 0.300" ID x 0.070" CS	O-Ring Size (AS-568) 011 Inner Diameter (In.) 0.300 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 1-2 Days Qty in stock 8 See more OR-AS-9J5-LK37-90L8-90L8	011	0.300	0.070	Low Temp	1-2 Days 8Qty in stock	$2.35	Starting at: $2.35	PRICE QTY $35.32
FKM Parker VX065-75 O-Ring, Size 012, 0.360" ID x 0.070" CS	O-Ring Size (AS-568) 012 Inner Diameter (In.) 0.360 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 1-2 Days Qty in stock 13 See more OR-AS-9J5-8DU4-90L8-90L8	012	0.360	0.070	Low Temp	1-2 Days 13Qty in stock	$2.58	Starting at: $2.58	PRICE QTY $36.08
FKM Parker VX065-75 O-Ring, Size 013, 0.426" ID x 0.070" CS	O-Ring Size (AS-568) 013 Inner Diameter (In.) 0.426 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 5 Days Qty in stock 71 See more OR-AS-9J5-W7Y7-90L8-90L8	013	0.426	0.070	Low Temp	5 Days 71Qty in stock	$2.96	Starting at: $2.96	PRICE QTY $35.55
FKM Parker VX065-75 O-Ring, Size 014, 0.489" ID x 0.070" CS	O-Ring Size (AS-568) 014 Inner Diameter (In.) 0.489 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 4-6 Weeks Out of stock 0 See more OR-AS-9J5-3K18-90L8-90L8	014	0.489	0.070	Low Temp	4-6 Weeks 0Out of stock	$3.07	Starting at: $3.07	PRICE QTY $874.51
FKM Parker VX065-75 O-Ring, Size 015, 0.551" ID x 0.070" CS	O-Ring Size (AS-568) 015 Inner Diameter (In.) 0.551 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 1-2 Days Qty in stock 56 See more OR-AS-9J5-N1Y5-90L8-90L8	015	0.551	0.070	Low Temp	1-2 Days 56Qty in stock	$3.62	Starting at: $3.62	PRICE QTY $36.24
FKM Parker VX065-75 O-Ring, Size 016, 0.614" ID x 0.070" CS	O-Ring Size (AS-568) 016 Inner Diameter (In.) 0.614 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 1-2 Days Qty in stock 24 See more OR-AS-9J5-KMLK-90L8-90L8	016	0.614	0.070	Low Temp	1-2 Days 24Qty in stock	$3.87	Starting at: $3.87	PRICE QTY $34.80
FKM Parker VX065-75 O-Ring, Size 017, 0.676" ID x 0.070" CS	O-Ring Size (AS-568) 017 Inner Diameter (In.) 0.676 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 1-2 Days Qty in stock 75 See more OR-AS-9J5-R1Q8-90L8-90L8	017	0.676	0.070	Low Temp	1-2 Days 75Qty in stock	$3.96	Starting at: $3.96	PRICE QTY $35.63
FKM Parker VX065-75 O-Ring, Size 018, 0.739" ID x 0.070" CS	O-Ring Size (AS-568) 018 Inner Diameter (In.) 0.739 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 1-2 Days Qty in stock 9 See more OR-AS-9J5-URS7-90L8-90L8	018	0.739	0.070	Low Temp	1-2 Days 9Qty in stock	$4.45	Starting at: $4.45	PRICE QTY $35.63
FKM Parker VX065-75 O-Ring, Size 019, 0.801" ID x 0.070" CS	O-Ring Size (AS-568) 019 Inner Diameter (In.) 0.801 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 5 Days Qty in stock 1143 See more OR-AS-9J5-1094-90L8-90L8	019	0.801	0.070	Low Temp	5 Days 1143Qty in stock	$4.56	Starting at: $4.56	PRICE QTY $173.15
FKM Parker VX065-75 O-Ring, Size 020, 0.864" ID x 0.070" CS	O-Ring Size (AS-568) 020 Inner Diameter (In.) 0.864 Cross Section (In.) 0.070 Specification Low Temp O-Ring Size Series 000 Series Ships Within 5 Days Qty in stock 122 See more OR-AS-9J5-L1F7-90L8-90L8	020	0.864	0.070	Low Temp	5 Days 122Qty in stock	$4.66	Starting at: $4.66	PRICE QTY $37.27
