Wear Band Symmetrical

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

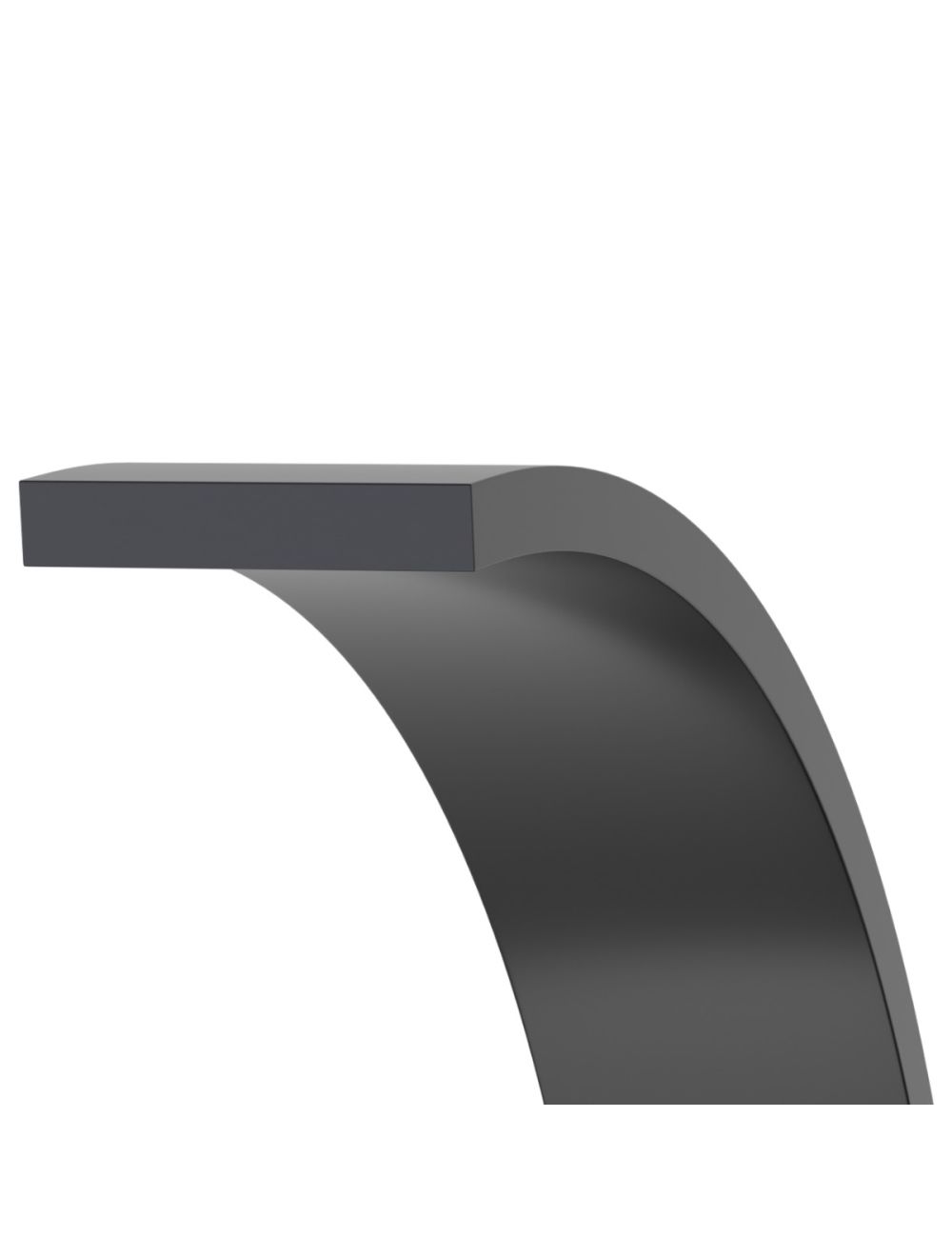

The GFS Wear Band Symmetrical is a tight toleranced premium wear band. It can be used for either Piston or Rod applications. This Wear Band is capable of withstanding extreme side lodes and prevents metal on metal contact between the piston and the bore or the rod and the gland. This profile is recommended for light and medium duty hydraulic applications. Parts offered below are supplied with a butt cut for easy installation. Step and angled cuts are also available upon request. The standard material offering is a 40% Glass Filled Nylon; additional materials can be supplied upon request.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Speed (ft/s) 16
Temperature Range (F) -40 to 275

Recommended Applications

Mobile Hydraulics
Standard Cylinders
Machine Tools

Material Datasheets

40% Glass Filled Nylon

Equivalent Profiles

Trelleborg Slydring®
Hallite 533
Parker WN

Sort By

Grouped product items
PART NUMBER	Cross Section (In.)	Inner Diameter (In.)	Outer Diameter (In.)	Groove Width (In.)	Material	Ships Within	PRICE	ADD TO CART
Symmetrical Wear Band, HW Dims 0.750" ID x 1.000" OD x 0.385" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 0.750 Outer Diameter (In.) 1.000 Groove Width (In.) 0.385 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 94 See more RC-GS-ZEV-170A-15Y3-H1W4	0.125	0.750	1.000	0.385	40% Glass Filled Nylon	1-2 Days 94Qty in stock	$9.52	Starting at: $9.52	PRICE QTY $9.52
Symmetrical Wear Band, HW Dims 0.875" ID x 1.125" OD x 0.385" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 0.875 Outer Diameter (In.) 1.125 Groove Width (In.) 0.385 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 86 See more RC-GS-ZEV-7FRV-15Y3-H1W4	0.125	0.875	1.125	0.385	40% Glass Filled Nylon	1-2 Days 86Qty in stock	$15.81	Starting at: $15.81	PRICE QTY $15.81
Symmetrical Wear Band, HW Dims 1.000" ID x 1.250" OD x 0.385" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.000 Outer Diameter (In.) 1.250 Groove Width (In.) 0.385 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 92 See more RC-GS-ZEV-3036-15Y3-H1W4	0.125	1.000	1.250	0.385	40% Glass Filled Nylon	1-2 Days 92Qty in stock	$9.71	Starting at: $9.71	PRICE QTY $9.71
Symmetrical Wear Band, HW Dims 1.000" ID x 1.250" OD x 0.510" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.000 Outer Diameter (In.) 1.250 Groove Width (In.) 0.510 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 86 See more RC-GS-ZEV-3036-15Y3-3BL1	0.125	1.000	1.250	0.510	40% Glass Filled Nylon	1-2 Days 86Qty in stock	$9.89	Starting at: $9.89	PRICE QTY $9.89
Symmetrical Wear Band, HW Dims 1.125" ID x 1.375" OD x 0.510" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.125 Outer Diameter (In.) 1.375 Groove Width (In.) 0.510 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 77 See more RC-GS-ZEV-XA44-15Y3-3BL1	0.125	1.125	1.375	0.510	40% Glass Filled Nylon	1-2 Days 77Qty in stock	$10.19	Starting at: $10.19	PRICE QTY $10.19
Symmetrical Wear Band, HW Dims 1.250" ID x 1.500" OD x 0.260" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.250 Outer Diameter (In.) 1.500 Groove Width (In.) 0.260 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 101 See more RC-GS-ZEV-VWDT-15Y3-3231	0.125	1.250	1.500	0.260	40% Glass Filled Nylon	1-2 Days 101Qty in stock	$5.30	Starting at: $5.30	PRICE QTY $5.30
Symmetrical Wear Band, HW Dims 1.250" ID x 1.500" OD x 0.385" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.250 Outer Diameter (In.) 1.500 Groove Width (In.) 0.385 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 79 See more RC-GS-ZEV-VWDT-15Y3-H1W4	0.125	1.250	1.500	0.385	40% Glass Filled Nylon	1-2 Days 79Qty in stock	$6.81	Starting at: $6.81	PRICE QTY $6.81
Symmetrical Wear Band, HW Dims 1.250" ID x 1.500" OD x 0.510" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.250 Outer Diameter (In.) 1.500 Groove Width (In.) 0.510 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 73 See more RC-GS-ZEV-VWDT-15Y3-3BL1	0.125	1.250	1.500	0.510	40% Glass Filled Nylon	1-2 Days 73Qty in stock	$6.81	Starting at: $6.81	PRICE QTY $6.81
Symmetrical Wear Band, HW Dims 1.375" ID x 1.625" OD x 0.385" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.375 Outer Diameter (In.) 1.625 Groove Width (In.) 0.385 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 75 See more RC-GS-ZEV-J762-15Y3-H1W4	0.125	1.375	1.625	0.385	40% Glass Filled Nylon	1-2 Days 75Qty in stock	$10.79	Starting at: $10.79	PRICE QTY $10.79
Symmetrical Wear Band, HW Dims 1.375" ID x 1.625" OD x 0.510" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.375 Outer Diameter (In.) 1.625 Groove Width (In.) 0.510 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 73 See more RC-GS-ZEV-J762-15Y3-3BL1	0.125	1.375	1.625	0.510	40% Glass Filled Nylon	1-2 Days 73Qty in stock	$7.32	Starting at: $7.32	PRICE QTY $7.32
Symmetrical Wear Band, HW Dims 1.500" ID x 1.750" OD x 0.260" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.500 Outer Diameter (In.) 1.750 Groove Width (In.) 0.260 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 98 See more RC-GS-ZEV-UBWN-15Y3-3231	0.125	1.500	1.750	0.260	40% Glass Filled Nylon	1-2 Days 98Qty in stock	$9.05	Starting at: $9.05	PRICE QTY $9.05
Symmetrical Wear Band, HW Dims 1.500" ID x 1.750" OD x 0.385" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.500 Outer Diameter (In.) 1.750 Groove Width (In.) 0.385 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 79 See more RC-GS-ZEV-UBWN-15Y3-H1W4	0.125	1.500	1.750	0.385	40% Glass Filled Nylon	1-2 Days 79Qty in stock	$6.49	Starting at: $6.49	PRICE QTY $6.49
Symmetrical Wear Band, HW Dims 1.500" ID x 1.750" OD x 0.510" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.500 Outer Diameter (In.) 1.750 Groove Width (In.) 0.510 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 73 See more RC-GS-ZEV-UBWN-15Y3-3BL1	0.125	1.500	1.750	0.510	40% Glass Filled Nylon	1-2 Days 73Qty in stock	$6.39	Starting at: $6.39	PRICE QTY $6.39
Symmetrical Wear Band, HW Dims 1.500" ID x 1.750" OD x 0.760" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.500 Outer Diameter (In.) 1.750 Groove Width (In.) 0.760 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 58 See more RC-GS-ZEV-UBWN-15Y3-1291	0.125	1.500	1.750	0.760	40% Glass Filled Nylon	1-2 Days 58Qty in stock	$8.15	Starting at: $8.15	PRICE QTY $8.15
Symmetrical Wear Band, HW Dims 1.500" ID x 1.750" OD x 1.010" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.500 Outer Diameter (In.) 1.750 Groove Width (In.) 1.010 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 45 See more RC-GS-ZEV-UBWN-15Y3-8Z9W	0.125	1.500	1.750	1.010	40% Glass Filled Nylon	1-2 Days 45Qty in stock	$9.99	Starting at: $9.99	PRICE QTY $9.99
Symmetrical Wear Band, HW Dims 1.625" ID x 1.875" OD x 0.510" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.625 Outer Diameter (In.) 1.875 Groove Width (In.) 0.510 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 63 See more RC-GS-ZEV-GM80-15Y3-3BL1	0.125	1.625	1.875	0.510	40% Glass Filled Nylon	1-2 Days 63Qty in stock	$10.37	Starting at: $10.37	PRICE QTY $10.37
Symmetrical Wear Band, HW Dims 1.750" ID x 2.000" OD x 0.260" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.750 Outer Diameter (In.) 2.000 Groove Width (In.) 0.260 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 95 See more RC-GS-ZEV-L511-15Y3-3231	0.125	1.750	2.000	0.260	40% Glass Filled Nylon	1-2 Days 95Qty in stock	$5.53	Starting at: $5.53	PRICE QTY $5.53
Symmetrical Wear Band, HW Dims 1.750" ID x 2.000" OD x 0.385" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.750 Outer Diameter (In.) 2.000 Groove Width (In.) 0.385 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 79 See more RC-GS-ZEV-L511-15Y3-H1W4	0.125	1.750	2.000	0.385	40% Glass Filled Nylon	1-2 Days 79Qty in stock	$6.49	Starting at: $6.49	PRICE QTY $6.49
Symmetrical Wear Band, HW Dims 1.750" ID x 2.000" OD x 0.510" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.750 Outer Diameter (In.) 2.000 Groove Width (In.) 0.510 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 60 See more RC-GS-ZEV-L511-15Y3-3BL1	0.125	1.750	2.000	0.510	40% Glass Filled Nylon	1-2 Days 60Qty in stock	$6.82	Starting at: $6.82	PRICE QTY $6.82
Symmetrical Wear Band, HW Dims 1.750" ID x 2.000" OD x 0.635" Groove Width, 40% Glass Filled Nylon	Cross Section (In.) 0.125 Inner Diameter (In.) 1.750 Outer Diameter (In.) 2.000 Groove Width (In.) 0.635 Material 40% Glass Filled Nylon Ships Within 1-2 Days Qty in stock 53 See more RC-GS-ZEV-L511-15Y3-0G0Q	0.125	1.750	2.000	0.635	40% Glass Filled Nylon	1-2 Days 53Qty in stock	$7.01	Starting at: $7.01	PRICE QTY $7.01
