GFS GS-320 Braided Packing

Skip to the beginning of the images gallery

GFS GS-320 Braided Packing

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

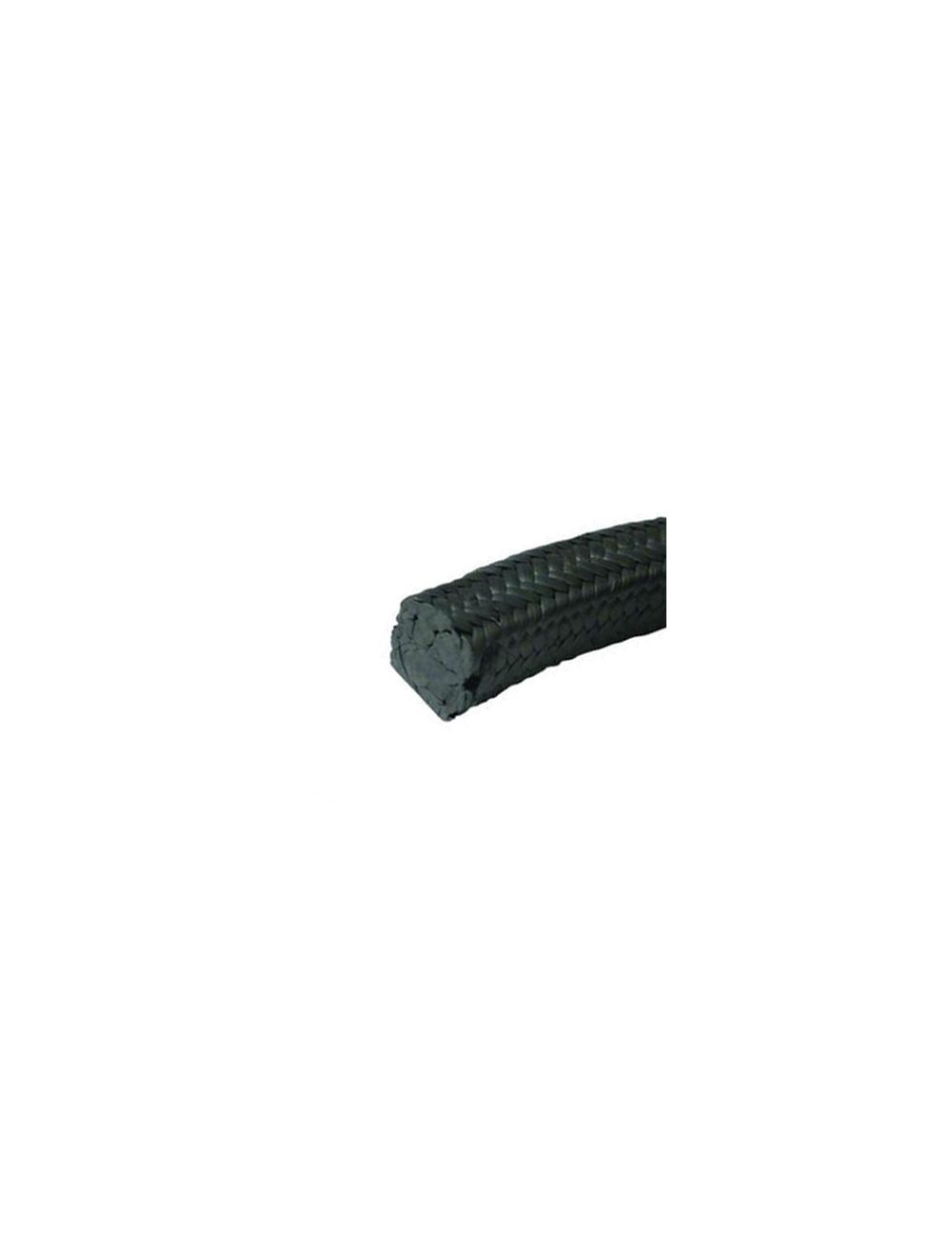

Braided from continuous Acrylic blended fiber, Style GS-320 is impregnated with our proprietary high temperature lubricant, and pre and post lubricated with high purity graphite flake. Our unique lubrication process insures a dense but flexible general service packing.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Max Temperature (F) 500°
Max Rotary Pump Pressure (PSI) 300
Max Rotary Pump Speed (fpm) 1500

Applications

Steam
Water
Oil
Mild acid or alkali

Material Datasheets

GFS GS-320

Equivalent Materials

Chemstar Style 1398
American Braiding Style 3000G
Garlock Style 1340
SEPCO ML402, ML6402
Palmetto Style 1007AF, Style 1030AF

Sort By

Grouped product items
PART NUMBER	Cross Section (In.)	Pounds (Lb.)	Ft. per Lb.	Ships Within	PRICE	ADD TO CART
GFS GS-320, 1/4 Inch CS 1 lb PTFE Braided Packing	Cross Section (In.) 1/4 Pounds (Lb.) 1 Ft. per Lb. 38 Ships Within 3 Days See more BP-PB-FSN-2TPS-2TPS-3036	1/4	1	38	3 Days	$31.27	Starting at: $31.27	PRICE QTY $31.27
GFS GS-320, 1/4 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 1/4 Pounds (Lb.) 5 Ft. per Lb. 38 Ships Within 3 Days See more BP-PB-FSN-2TPS-2TPS-WH3B	1/4	5	38	3 Days	$141.86	Starting at: $141.86	PRICE QTY $141.86
GFS GS-320, 3/8 Inch CS 1 lb PTFE Braided Packing	Cross Section (In.) 3/8 Pounds (Lb.) 1 Ft. per Lb. 17.5 Ships Within 3 Days See more BP-PB-FSN-A52U-A52U-3036	3/8	1	17.5	3 Days	$31.27	Starting at: $31.27	PRICE QTY $31.27
GFS GS-320, 3/8 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 3/8 Pounds (Lb.) 5 Ft. per Lb. 17.5 Ships Within 3 Days See more BP-PB-FSN-A52U-A52U-WH3B	3/8	5	17.5	3 Days	$141.86	Starting at: $141.86	PRICE QTY $141.86
GFS GS-320, 3/8 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 3/8 Pounds (Lb.) 10 Ft. per Lb. 17.5 Ships Within 3 Days See more BP-PB-FSN-A52U-A52U-W80G	3/8	10	17.5	3 Days	$283.71	Starting at: $283.71	PRICE QTY $283.71
GFS GS-320, 1/2 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 1/2 Pounds (Lb.) 5 Ft. per Lb. 8.6 Ships Within 3 Days See more BP-PB-FSN-8D8H-8D8H-WH3B	1/2	5	8.6	3 Days	$141.86	Starting at: $141.86	PRICE QTY $141.86
GFS GS-320, 1/2 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 1/2 Pounds (Lb.) 10 Ft. per Lb. 8.6 Ships Within 3 Days See more BP-PB-FSN-8D8H-8D8H-W80G	1/2	10	8.6	3 Days	$283.71	Starting at: $283.71	PRICE QTY $283.71
GFS GS-320, 5/8 Inch CS 5 lb PTFE Braided Packing	Cross Section (In.) 5/8 Pounds (Lb.) 5 Ft. per Lb. 5.9 Ships Within 3 Days See more BP-PB-FSN-4KX1-4KX1-WH3B	5/8	5	5.9	3 Days	$141.86	Starting at: $141.86	PRICE QTY $141.86
GFS GS-320, 5/8 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 5/8 Pounds (Lb.) 10 Ft. per Lb. 5.9 Ships Within 3 Days See more BP-PB-FSN-4KX1-4KX1-W80G	5/8	10	5.9	3 Days	$283.71	Starting at: $283.71	PRICE QTY $283.71
GFS GS-320, 3/4 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 3/4 Pounds (Lb.) 10 Ft. per Lb. 4.2 Ships Within 3 Days See more BP-PB-FSN-170A-170A-W80G	3/4	10	4.2	3 Days	$283.71	Starting at: $283.71	PRICE QTY $283.71
GFS GS-320, 7/8 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 7/8 Pounds (Lb.) 10 Ft. per Lb. 3.3 Ships Within 3 Days See more BP-PB-FSN-7FRV-7FRV-W80G	7/8	10	3.3	3 Days	$283.71	Starting at: $283.71	PRICE QTY $283.71
GFS GS-320, 1 Inch CS 10 lb PTFE Braided Packing	Cross Section (In.) 1 Pounds (Lb.) 10 Ft. per Lb. 2.3 Ships Within 3 Days See more BP-PB-FSN-3036-3036-W80G	1	10	2.3	3 Days	$283.71	Starting at: $283.71	PRICE QTY $283.71
