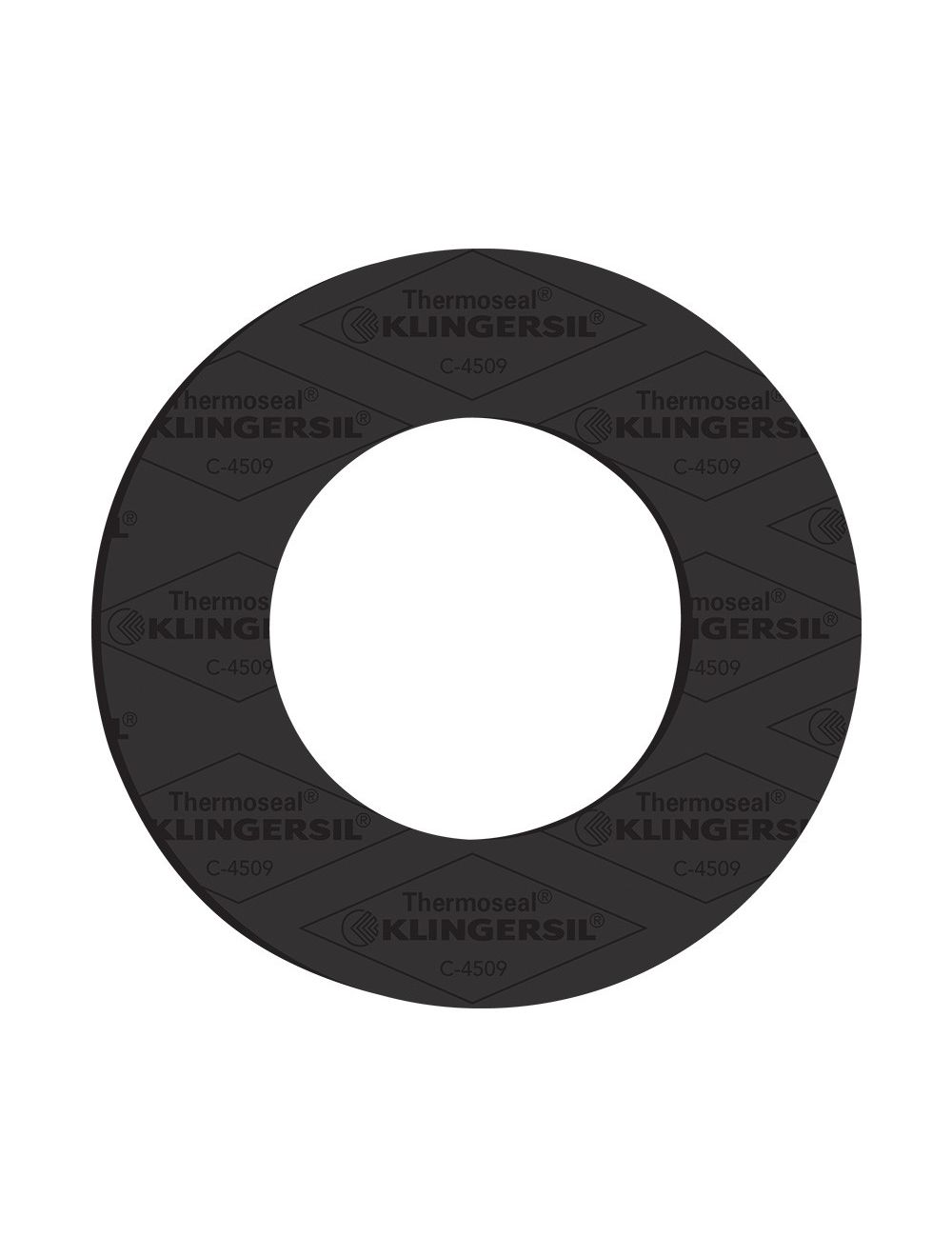

Klingersil C4509 Ring Gasket

Can't find your size or material?

Need a higher quantity price?

Let us customize your order.

Thermoseal's KLINGERSIL C-4509 is a special high pressure gasket material that offers excellent service in many sectors of the chemical industry. Main fields of application: alkaline media and steam. The expanded metal reinforcement is a galvanized low carbon steel insert which increases the compressive strength and pressure capability. Suitable for high-pressure applications because of its higher resistance against blow outs This material is manufactured with carbon fibers and special high temperature resistance additives and reinforced with a nitrile binder. Download our ring gasket guide here.

Start Shopping

PERFORMANCE & SPECIFICATIONS

Performance

Max Temperature (F) 850°
Continuous Max (F) 590°
Continuous Max with Steam (F) 400°
Max Pressure (PSI) 2200

Recommended Applications

Chemical products
Oil
Low temperature steam
Water

Material Datasheets

Klingersil C4509

Sort By

Grouped product items
PART NUMBER	Nominal Pipe Size	Pressure Rating (lbs)	Flange Standard (ASME)	Thickness (In.)	Inner Diameter (In.)	Outer Diameter (In.)	Ships Within	PRICE	ADD TO CART
1/2" 150# 1/64" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 3 Days See more GK-RS-7WM-F8Q9-RE20-V35S	1/2	150	ASME B16.5	1/64	0.840	1.880	3 Days	$7.65	Starting at: $7.65	PRICE QTY $7.65
1/2" 150# 1/32" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 3 Days See more GK-RS-7WM-F8Q9-RE20-8PGR	1/2	150	ASME B16.5	1/32	0.840	1.880	3 Days	$7.68	Starting at: $7.68	PRICE QTY $7.68
1/2" 150# 1/8" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 1.880 Ships Within 3 Days See more GK-RS-7WM-F8Q9-RE20-15Y3	1/2	150	ASME B16.5	1/8	0.840	1.880	3 Days	$8.29	Starting at: $8.29	PRICE QTY $8.29
1/2" 300# 1/64" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 3 Days See more GK-RS-7WM-F8Q9-G35E-V35S	1/2	300	ASME B16.5	1/64	0.840	2.120	3 Days	$7.76	Starting at: $7.76	PRICE QTY $7.76
1/2" 300# 1/32" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 3 Days See more GK-RS-7WM-F8Q9-G35E-8PGR	1/2	300	ASME B16.5	1/32	0.840	2.120	3 Days	$7.80	Starting at: $7.80	PRICE QTY $7.80
1/2" 300# 1/8" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1/2 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 0.840 Outer Diameter (In.) 2.120 Ships Within 3 Days See more GK-RS-7WM-F8Q9-G35E-15Y3	1/2	300	ASME B16.5	1/8	0.840	2.120	3 Days	$8.56	Starting at: $8.56	PRICE QTY $8.56
3/4" 150# 1/64" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 3 Days See more GK-RS-7WM-G56P-9CD0-V35S	3/4	150	ASME B16.5	1/64	1.060	2.250	3 Days	$7.86	Starting at: $7.86	PRICE QTY $7.86
3/4" 150# 1/32" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 3 Days See more GK-RS-7WM-G56P-9CD0-8PGR	3/4	150	ASME B16.5	1/32	1.060	2.250	3 Days	$7.91	Starting at: $7.91	PRICE QTY $7.91
3/4" 150# 1/8" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.250 Ships Within 3 Days See more GK-RS-7WM-G56P-9CD0-15Y3	3/4	150	ASME B16.5	1/8	1.060	2.250	3 Days	$8.76	Starting at: $8.76	PRICE QTY $8.76
3/4" 300# 1/8" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 3 Days See more GK-RS-7WM-G56P-3983-15Y3	3/4	300	ASME B16.5	1/8	1.060	2.620	3 Days	$9.25	Starting at: $9.25	PRICE QTY $9.25
3/4" 300# 1/32" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 3 Days See more GK-RS-7WM-G56P-3983-8PGR	3/4	300	ASME B16.5	1/32	1.060	2.620	3 Days	$8.11	Starting at: $8.11	PRICE QTY $8.11
3/4" 300# 1/64" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 3/4 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 1.060 Outer Diameter (In.) 2.620 Ships Within 3 Days See more GK-RS-7WM-G56P-3983-V35S	3/4	300	ASME B16.5	1/64	1.060	2.620	3 Days	$8.05	Starting at: $8.05	PRICE QTY $8.05
1" 150# 1/64" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 3 Days See more GK-RS-7WM-E4XU-VETT-V35S	1	150	ASME B16.5	1/64	1.310	2.620	3 Days	$8.10	Starting at: $8.10	PRICE QTY $8.10
1" 150# 1/32" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 3 Days See more GK-RS-7WM-E4XU-VETT-8PGR	1	150	ASME B16.5	1/32	1.310	2.620	3 Days	$8.15	Starting at: $8.15	PRICE QTY $8.15
1" 150# 1/8" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.620 Ships Within 3 Days See more GK-RS-7WM-E4XU-VETT-15Y3	1	150	ASME B16.5	1/8	1.310	2.620	3 Days	$9.30	Starting at: $9.30	PRICE QTY $9.30
1" 300# 1/64" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 3 Days See more GK-RS-7WM-E4XU-R7WZ-V35S	1	300	ASME B16.5	1/64	1.310	2.880	3 Days	$8.24	Starting at: $8.24	PRICE QTY $8.24
1" 300# 1/32" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 3 Days See more GK-RS-7WM-E4XU-R7WZ-8PGR	1	300	ASME B16.5	1/32	1.310	2.880	3 Days	$8.31	Starting at: $8.31	PRICE QTY $8.31
1" 300# 1/8" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1 Pressure Rating (lbs) 300 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/8 Inner Diameter (In.) 1.310 Outer Diameter (In.) 2.880 Ships Within 3 Days See more GK-RS-7WM-E4XU-R7WZ-15Y3	1	300	ASME B16.5	1/8	1.310	2.880	3 Days	$9.68	Starting at: $9.68	PRICE QTY $9.68
1.25" 150# 1/64" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/64 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.000 Ships Within 3 Days See more GK-RS-7WM-8WTN-QTZ0-V35S	1-1/4	150	ASME B16.5	1/64	1.660	3.000	3 Days	$8.37	Starting at: $8.37	PRICE QTY $8.37
1.25" 150# 1/32" Thk C4509 ASME B16.5 Ring Gasket	Nominal Pipe Size 1-1/4 Pressure Rating (lbs) 150 Flange Standard (ASME) ASME B16.5 Thickness (In.) 1/32 Inner Diameter (In.) 1.660 Outer Diameter (In.) 3.000 Ships Within 3 Days See more GK-RS-7WM-8WTN-QTZ0-8PGR	1-1/4	150	ASME B16.5	1/32	1.660	3.000	3 Days	$8.45	Starting at: $8.45	PRICE QTY $8.45
