The pure graphite gasket material with a stainless steel tang insert
KLINGER® Graphite Laminate PSM has a 0.1 mm thick perforated stainless steel insert. The insert aids material handling properties and also increases the blow-out resistance. The insert is mechanically bonded to pure exfoliated graphite and therefore does not rely on adhesive.
Stable physical properties over the whole temperature range. KLINGER® Graphite Laminates PSM is suitable for hot water and steam at high temperatures up to 842°F (450°C).
In order to prevent the gasket material from sticking to the flange surface (even at high temperatures), the graphite surface can be given a non-stick coating at the customer's request. With this process, the gasket material's surface is coated and not impregnated.
KEY FEATURES & BENEFITS
Mechanically bonded tanged stainless steel insert
Free of organic resins or toxic risks
Excellent chemical resistance
Excellent high temperature resistance
Stable physical properties over the whole temperature range
Provides excellent adaptability to any sealing surface
Very good tightness
CERTIFICATES AND APPROVALS
DIN-DVGW
KTW-Guideline
Fire-Safe acc. to DIN EN ISO 10497
German Lloyd
BAM tested
The pressure/temperature graphs shown are the most current method of determining the suitability of a gasket material in a known environment. However, chemical compatibility must also be considered.

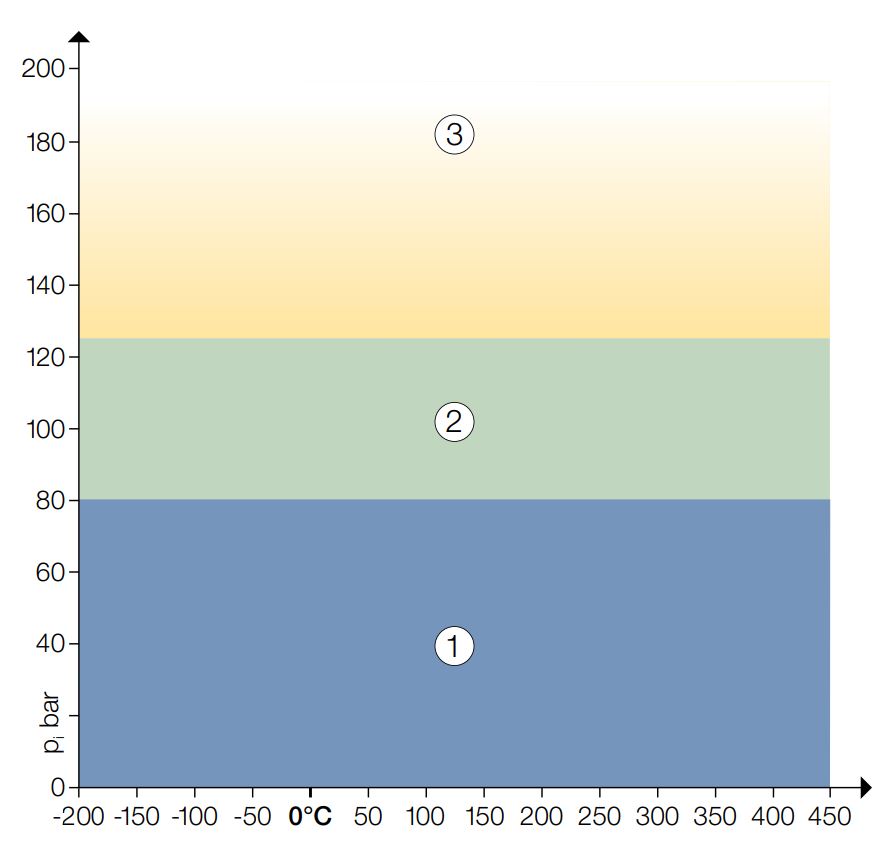

pT diagram for thickness 2.0 mm:
In area 1 the gasket material is suitable using common installment practices subject to chemical compatibility
In area 2 appropriate measures are necessary for installation of the gasket to ensure maximum performance. Please call or refer to KLINGERexpert for assistance.
In area 3 do not install gaskets in these applications without first referring to KLINGERexpert or contacting KLINGER Thermoseal's technical support service.
The ability of a gasket to make and maintain a seal depends not only on the style and quality of the gasket material, but also on medium being sealed, the flange design, the amount of pressure applied to the gasket by the bolts and how the gasket is assembled onto the flanges and tightened. These factors are beyond the manufacturer's control.
