The GYLON® TUFF-RAIL® Family consists of two tank car manway gaskets, GYLON® 3545 & 3504 TUFF-RAIL®. The TUFF-RAIL® patent pending technology incorporates raised sealing features for a tighter seal in less than ideal bolting conditions, even after multiple cycles. Engineered to a single size, these gaskets fit the most common manways (AAR-1, UTC-1, TRN-1) simplifying gasket selection and inventory requirements. Constructed from Garlock's industry proven GYLON® material, TUFF-RAIL ® manway gaskets have been tested for reliability, reusability, and superior performance over other similar PTFE materials.

PERFORMANCE

  • Min Temperature (F) -450°
  • Max Temperature (F) 500°

FEATURES

  • Engineered to a single size to fit the most common manways simplifying inventory (AAR-1, UTC-1, TRN-1)
  • Unlimited shelf life and high crush resistance - issues commonly associated with rubber gaskets
  • Raised sealing ribs offer excellent creep resistance and long term bolt load retention
  • Manufactured with 100% pure PTFE for universal chemical resistance

MATERIAL DATASHEETS

  • 3504-TR
  • 3545-TR/li>
  • Chemical Resistance Data

Garlock GYLON® 3545 TUFF-RAIL®

Manufactured from 100% pure PTFE and utilizing our proprietary GYLON® process, the 3545 TUFF-RAIL® gasket is specifically designed to help address those difficult installation and sealing requirements of manways. Formulated to compress and conform, the 3545 TUFF-RAIL® is easily installed with excellent load retention, maintaining a tight seal even during heavy vibration and thermal cycling. The patent pending technology incorporates raised ribs to insure the gasket performs under the limited bolt load and the narrow seating surface of the nozzle.

3545 GYLON Tuff Rail
Shop 3545 TUFF RAIL >

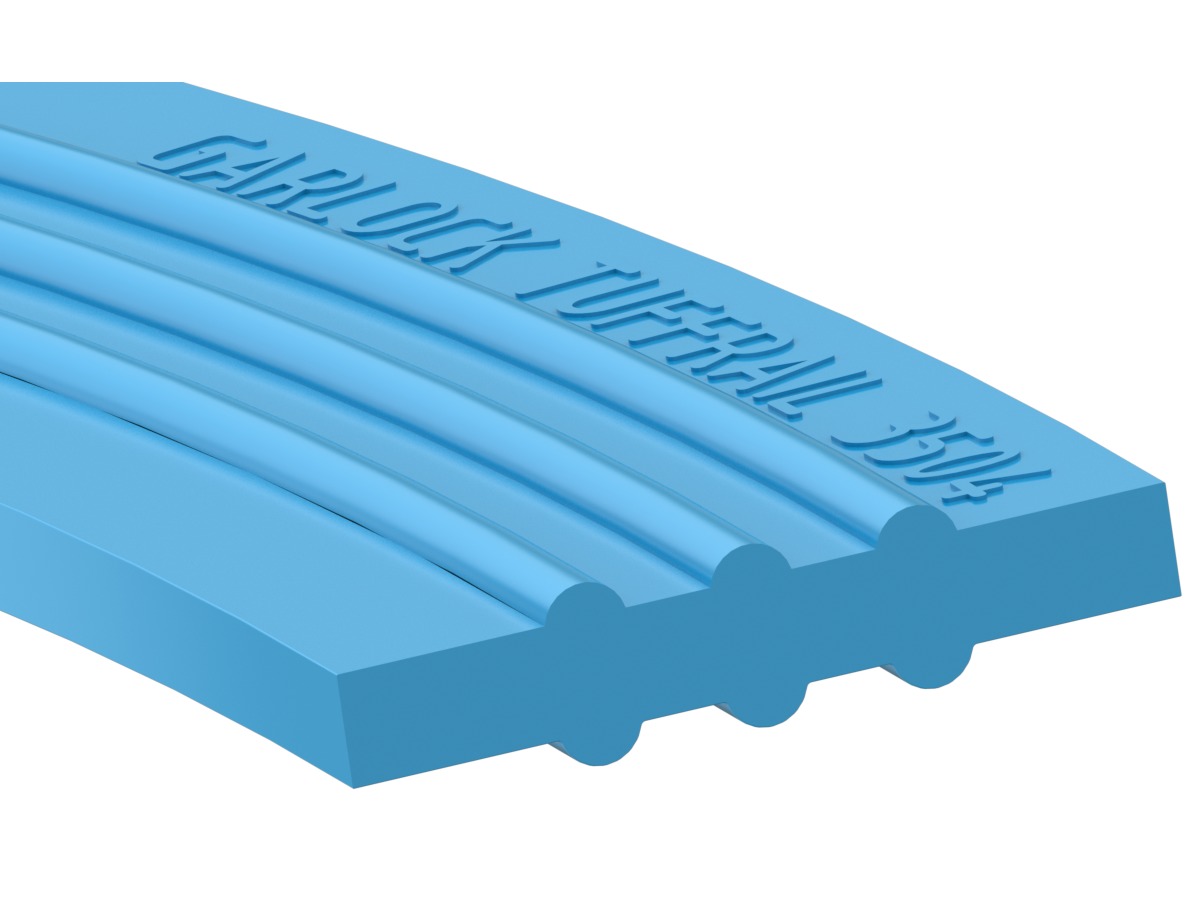

Garlock GYLON® 3504 TUFF-RAIL®

Extending the use of Garlock's patent pending molding technology, the 3504 TUFF-RAIL® gasket is the latest addition to their TUFF-RAIL® family of products. A blend of aluminosilicate and PTFE, the 3504 TUFF-RAIL® offers excellent compressibility and a wide range of chemical compatibility. Engineered with the same raised sealing areas, the 3504 TUFF-RAIL® has been proven to seal and reseal even in the most demanding manway installations.

3504 GYLON Tuff Rail
Shop 3504 TUFF-RAIL

Need a custom engineering solution? Gallagher Fluid Seals can help. Contact our applications engineers for assistance.
