Freudenberg’s Simmerrings seal rotating shafts reliably and are used in millions of applications and with a variety of equipment in general industry and the automotive sector.
This radial shaft seal ring is based on know-how gained from years of experience. It continually undergoes further refinement based on the latest technological developments, and is particularly functionally reliable, flexible and extremely stressable.
Always “up-to-date”

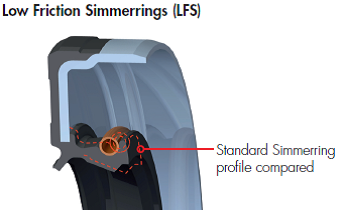

The tried-and-tested original Simmerring keeps up with the times. Freudenberg’s experts have continued to develop it, with improvements in seal lip profiles. This has made it possible to further enhance its reliability and functionality across a broad range of applications. The advances include a friction-optimized design – the Low Friction Simmerring® – to decrease fuel consumption, which leads to reductions in CO2 emissions.
Gallagher Fluid Seals offers a comprehensive selection of Freudenberg Sealing Technologies products suited to a variety of requirements.
- ACM 380 DF: better relaxation characteristics and bigger temperature range (–40°C to 175°C) compared to classic ACM
- Lower friction compared to conventional sealing lip profile: 15 to 20%
- Lower price compared to FKM-seals due to special ACM for high temp
- Higher ability for high speed and high temp applications
- Less sensitivity during assembly compared to ESS.
Advantages of high temperature ACM 380 DF compound:
- Better relaxation characteristics and bigger temperature range (–40°C to +175°C)
- Excellent compatibility with the additives of the new generation of oils for gearboxes and axles
- Inline with the current environmental protection requirements such as EU regulations and REACH

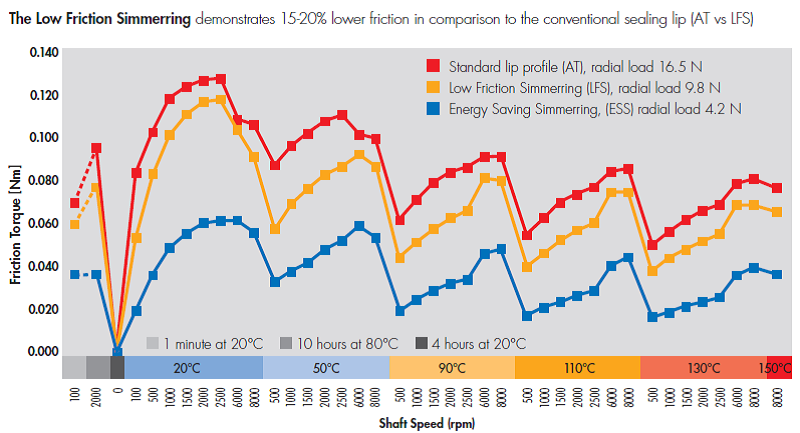

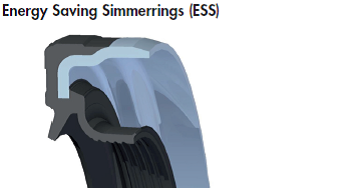

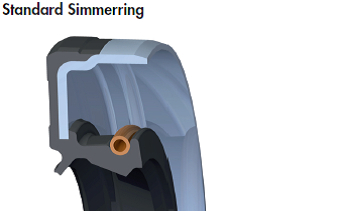

Comparative features of the Low Friction Simmerring and Energy Saving Simmerring versus the standard Simmerring | ||||||||||||||||||||||||
*Only for input seal with specified assembly line |
