Steps to Installing a Gasket on a Flange

This blog will go over the 8 simple steps to install a gasket on a flange.

Thanks to our friends at Gore for providing the visual for this blog post.

Ensure the sealing surfaces are clean, dry, and free of grease.

gaskets-installation-step1_1

Position the gasket so that it is centered on the flange (use the bolts as a guide).

gaskets-installation-step2

Lubricate the fasteners well. Be sure to lubricate all load bearing surfaces on the bolts, nuts, and washers.

gaskets-installation-step3

Assemble bolts, washers and nuts on the flange.


gaskets-installation-step4

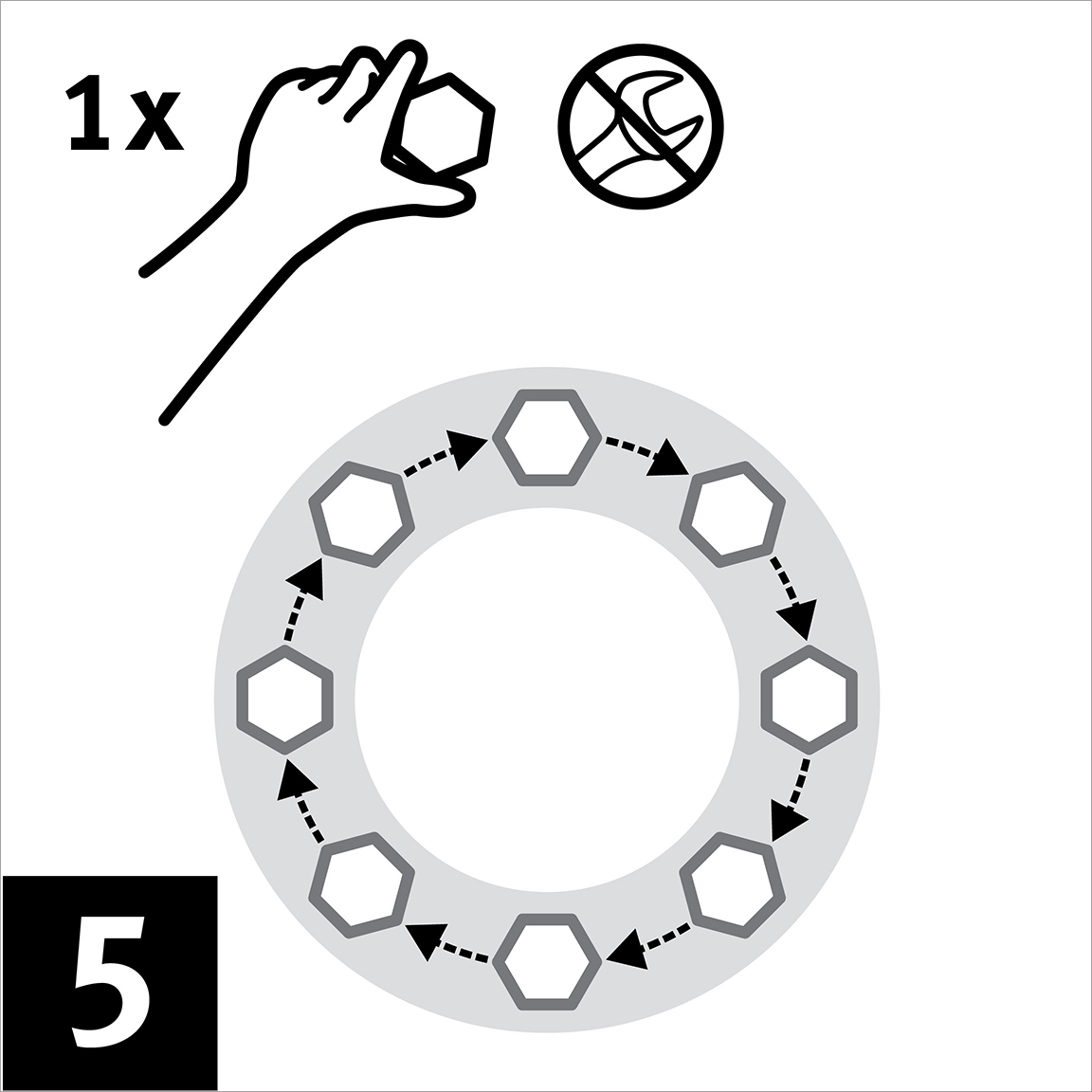

Finger-tighten the bolts, moving in a circular direction.







gaskets-installation-step5

Utilize a calibrated torque device to torque each bolt in a star pattern sequence. Apply the torque in three passes:

  • 1st Pass: 30% of Target Torque
  • 2nd Pass: 60% of Target Torque
  • 3rd Pass: 100% of Target Torque
gaskets-installation-step6

Apply the torque at 100% of Target Torque in a circular pass. Then wait 4 hours.


gaskets-installation-step7

Complete the installation by performing circular passes until all bolts have acheived the target torque.
