GFS General Service Packing is designed and manufactured to work across a wide range of dynamic rotary and reciprocating sealing environments. Materials below contain a variety of patented fiber-infused PTFE yarns with graphite, other impregnated fillers.
These materials offer greater strength with fewer braid unraveling problems, and long life in abrasive situations. Surface lubricant allows for easier run-in, and a reduction in shaft and sleeve wear lowers operational costs. Most importantly versatile, multi-use packing means lower inventory stocking costs.
Check out the 6 different types of general service compression packing to see which is most applicable to your application.

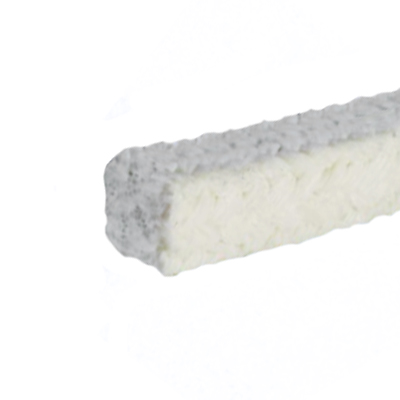

GFS GS-360 Braided Packing
Braided from continuous Acrylic blended fiber, Style GS-360 is impregnated with PTFE and a proprietary inert lubricant. GS-360 packing is also non-staining and non-contaminating with excellent heat dissipation properties.
Recommended Applications
- Centrifugal Pumps
- Rotary
- Reciprocating Pumps
- Valve Service
Performance
- Max Temperature (F) 500°
- Max Rotary Pump Pressure (PSI) 500
- Max Rotary Pump Speed (fpm) 2500
GFS GS-320 Braided Packing
Braided from continuous Acrylic blended fiber, Style GS-320 is impregnated with our proprietary high temperature lubricant, and pre and post lubricated with high purity graphite flake. Our unique lubrication process insures a dense but flexible general service packing.
Recommended Applications
- Steam
- Water
- Oil
- Mild acid or alkali
Performance
- Max Temperature (F) 500°
- Max Rotary Pump Pressure (PSI) 300
- Max Rotary Pump Speed (fpm) 1500
Garlock Style 1965 Braided Packing
Manufactured from a blend of our own patented fiber-infused PTFE yarns with graphite, and SYNTHEPAK® yarns, impregnated with PTFE suspensoid then coated with snow-white petrolatum break-in lube. Style 1965 can be used in a wide variety of applications.
Features and Benefits
- Low tension braiding makes Style 1965 a softer, more flexible material
- Exceptional abrasion resistance
- Not abrasive to shafts
- Resists extrusion
Performance
- Min Temperature (F) -452°
- Max Temperature (F) 500°
- Max Rotary Pump Pressure (PSI) 300
- Max Rotary Pump Speed (fpm) 2000
Garlock Style 1925 Braided Packing
Synthetic pump packing that combines the abrasive resistance and thermal stability of fiber-infused PTFE yarns with the flexibility of our SYNTHEPAK® yarns.
Features and Benefits
- Cuts, wraps, and installs easily
- Remains flexible in service, greatly reducing maintenance time
- Longer packing and equipment life mean significant cost savings
Performance
- Min Temperature (F) -450°
- Max Temperature (F) 500°
- Max Rotary Pump Pressure (PSI) 300
- Max Rotary Pump Speed (fpm) 2500
Garlock Packmaster 1 Braided Packing
The combination of resilient non-asbestos fibers and PTFE offers a true non-contaminating general service packing - ideal where a clean, reliable packing is required.
Features and Benefits
- Mild acids and alkalies
- Air and dry industrial gases
- Petroleum and synthetic oils
- Aromatic and aliphatic solvents
Performance
- Max Temperature (F) 500°
- Max Rotary Pump Pressure (PSI) 300
- Max Rotary Pump Speed (fpm) 1500
Garlock Packmaster 2 Braided Packing
A combination of petroleum lubricants and graphite permeate the spun synthetic yarns to produce a packing ideally suited for services in hot and cold water, alcohol, very mild acids and alkalis, and steam.
Recommended Applications
- Ideally suited for services in hot and cold water, alcohol, very mild acids and alkalies, and steam
- Typical services include rotary and centrifugal pumps, reciprocating pumps, and gasketing applications or other non-critical static sealing services
Performance
- Max Temperature (F) 500°
- Max Rotary Pump Pressure (PSI) 300
- Max Rotary Pump Speed (fpm) 1500
For more information about compression packing, or for specific application guidance, contact Gallagher Fluid Seals today.
