Offering a unique combination of high load-bearing strength, low friction and low wear, Vesconite does not require manual lubrication, even in harsh and dirty working environments.

Vesconite is tried and tested in literally thousands of applications across a wide range of industries – from general industrial, to marine, agriculture and many more industries. Vesconite has an impressive dimensional stability, and, unlike many synthetic alternatives, Vesconite retains its strength under wet conditions. It displays negligible creep under high load.

Vesconite is available in a wide range of rods, bushings, plates, and machined custom parts.


Vesconite Hilube bushings lasted three times longer in a heat exchanger used for the forced cooling of wine at a bottling company.

Forced cooling may be used to stabilise wine and prevent the future formation of tartrate crystals. The bottler forces tartrate crystals to form which are removed through a number of steps including filtration. This eliminates the need for wine-lovers to decant or filter their wine when drinking it.

Johan Brits, CEO of plant machinery manufacturing and maintenance company Vino Tech, notes that the original heat exchanger, from an Italian original equipment manufacturer, was fitted with chrome bushings that did not react well to the temperature fluctuations of between 8 and 10°C.

“The temperature fluctuations caused the chrome bushings to burst and the seals to wear.” With the bushings and seals failing prematurely, this would cause unacceptable equipment downtime.

“The bushings were replaced with Vesconite Hilube and the seals with silicone and the result was an up to three times longer lifespan,” states Brits.

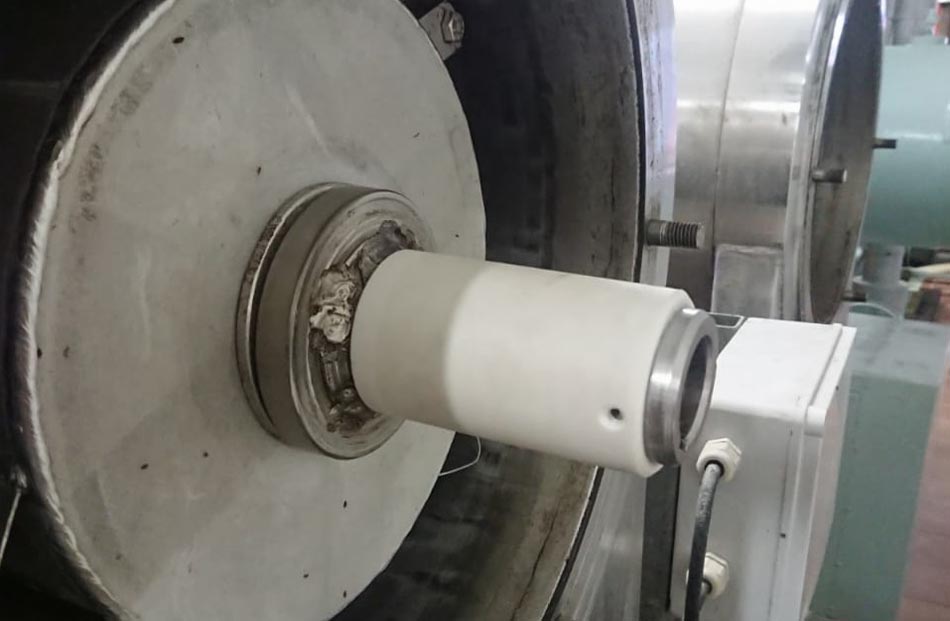

picture of vesconite in heat exchanger


KEY FEATURES OF HILUBE

No water swell

Fully saturated, Vesconite Hilube has a negligible moisture absorption rate (0.5%). Its linear swell rate of 0.07% allows for fine clearances in the majority of applications. By way of contrast, nylons absorb moisture by as much as 9% of total mass – resulting in high swell rates and critical loss of clearance, which can lead to seizures.

Superior performance

Vesconite Hilube overcomes the limitations of conventional bearing materials.  Its load-bearing capacity is higher than white metal, its wear life in poorly lubricated or dirty conditions more than ten-fold that of bronze. Its self- lubricating properties are far superior to nylon, and unlike nylon-based materials, Vesconite Hilube does not swell in water or humid conditions.

Extended wear life

Vesconite grew out of an identified industry need to reduce maintenance and downtime across a multitude of applications. The resultant product was a huge improvement on conventional nylon, bronze and white metal. Vesconite Hilube takes this a technological step further, offering up to five times the wear life of Vesconite in many applications and superior performance under water.

Low friction

Vesconite Hilube’s friction coefficient (0.08 – 0.12) is approximately half that of bronze and nylon. This allows for a higher PV factor (load x speed). Adding external lubrication or water to the equation will lower friction even further, and the resultant PV factor.

High load-bearing strength

Vesconite Hilube has a much higher load capacity compared to nylon, rubber and elastomer bearings. Unlike nylon, Vesconite Hilube maintains its strength under wet conditions and shows very little creep under heavy load. It has proved particularly superior in higher load applications.

Dimensional stability

An issue common to most synthetic bearing materials, Vesconite Hilube’s coefficient of thermal expansion is comparatively low – approximately one third less than nylon and Acetal. but four times that of bronze. As such, Vesconite Hilube requires slightly more clearance when replacing metal parts. No allowance is required for moisture changes – an important benefit, as the most common reason for polymer bearing failure is thermal expansion and water swell.

Temperature limits

Vesconite Hilube may be used continuously at 100ºC  (212ºF) in dry applications, and for short periods at higher temperatures. Load limits should be reduced by half when operating above 80ºC (176ºF).

Shaft friendly

The wear of metal pins and shafts is reduced by as much as 90% when Vesconite Hilube bushings are used. An extremely valuable benefit in terms of cost-saving and maintenance downtime.

Chemical resistance

Vesconite Hilube is resistant to dilute and moderate acids, organic solvents, oils and petroleum. It has limited resistance to strong acids and alkalis.


The original article can be found on Vesconite's website here.

For more information about Hilube or Vesconite products, contact Gallagher Fluide Seals today.
